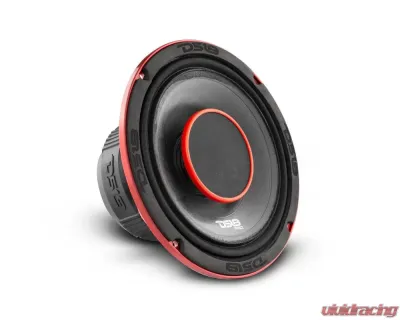

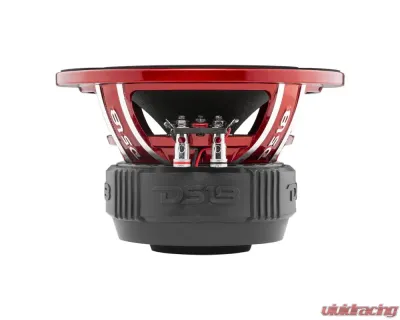

DS18 4-Ohm Pro 6.5" Hybrid Mid-Range Loudspeaker - PRO-HY6.4B
DS18 4-Ohm Pro 6.5" Hybrid Mid-Range Loudspeaker - PRO-HY6.4B - Image 2 DS18 4-Ohm Pro 6.5" Hybrid Mid-Range Loudspeaker - PRO-HY6.4B - Image 2
DS18's Hybrid speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker.

This high powered pro audio mega speaker combines both a 6.5 high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume.

These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.

Features:
  • Hybrid design combines high wattage midrange and driver together in one beautiful frame.
  • High volume 6.5 and 1" driver rated at 225w RMS and 450max for crazy loud volume in a full range of frequencies.
  • Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!
Technical Details
  • Nominal Diameter: 6.5”
  • Nominal Impedance: 4 OHMS
  • RMS Power Handling: 225W
  • MAX Power Handling: 450W
  • Sensitivity (1w/1m): 96dB
  • Frequency Response: 100Hz-20KHz
  • Recommended Hi Pass Crossover: 120 Hz
  • Number of Ways: 2
  • Pair or Single: Single
MID-RANGE SPECIFICATIONS
  • Voice Coil Diameter: 1.5” / 38.6 mm
  • Voice Coil Former Material: Glass Fiber
  • Winding Material: CCAW
  • Cone Material: Water Resistant Paper
  • Surround Material: Cloth
  • Basket Material: Aluminum
  • Basket Color/Finish: Glossy Red
  • Magnet Material: Ferrite
  • Magnet Weight: 27 oz
  • Displacement volumen: 0.047L
THIELE & SMALL PARAMETERS
  • Equivalent Volume: Vas 2.211L
  • Excursion (one way): Xmax 9.2 mm
  • Free Air Resonance: FS 199Hz
  • Mechanical Factor: Qms 5.96
  • Electrical Factor: Qes 1.524
  • Total Factor: Qts 1.214
  • Mechanical Mass: Mms 8.654g
  • Mechanical Compliance: Cms 73.792 mm/N
  • BL Factor: BL 4.769
  • Voice Coil Inductance: Le 4.22mH
  • Cone Area: Sd 145.26 Cm2
  • DC Resistance: Re 3.2 Ohms
  • Mechanical Mass w/o Air: Mmd 6.7g
DRIVER SPECIFICATIONS
  • Voice Coil Diameter: 1” / 25.4 mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Titanium
  • Magnet Material: Neodymium
  • Horn Diameter: 3.26"
MEASUREMENTS
  • Overall Diameter: 6.85" / 174 mm
  • Overall Depth: 4.28" / 108.8 mm
  • Front Mount Baffle Cutout: 5.91" / 150 mm
  • Mounting Depth: 3.92" / 99.5 mm
  • Motor Diameter: 4.65" / 118 mm
Install Instructions:

Other Part Numbers:
DS18 #PRO-HY6.4B-FXVX

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

DS18 Banner

Who Is DS18?

DS18 is a company that is based in Miami, Florida, USA. The company specializes in manufacturing high-quality electronics used in different industries such as the marine, home electronics, and automotive industries. Today, DS18 is considered the leading manufacturer of sound system equipment in the market.

Wide Range Of Audio Products

DS18 was developed and created by a group of young and passionate professionals who have a deep understanding of the needs of the audio industry. The company offers a wide range of products from speakers, amplifiers, subwoofers, midranges, tweeters, cables, accessories, component sets, and more. Over the years, DS18 has met the demands of many audiophiles around the world.

Well-Designed Products

The company has never stopped innovating its product offering by providing a unique and progressive product design that adapts to the ever-changing trend of the automotive industry. By getting their customer’s feedback, they can constantly improve their products which help them create the best sound system in the market today.

DS18 has revolutionized the market by offering trendy products that people love. Through constant research and development, DS18 was able to deliver the most outstanding products technology can offer.

Purchase DS18 Products At DS18

If you are in the market for a high-quality sound system that would elevate how your in-car infotainment system would sound, then look no further as DS 18 is the brand for you. To know more about DS18 and what they can offer, visit Vivid Racing and check out their list of products that fit your specific requirement.
