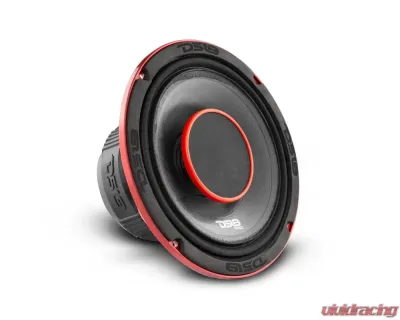

DS18 4-Ohm Pro 8" Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY8.4B

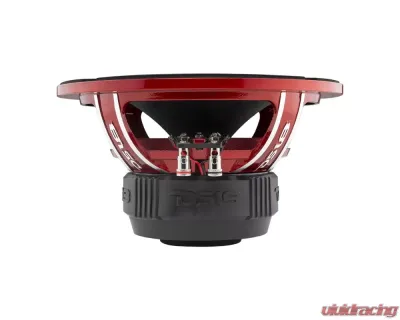

DS18 4-Ohm Pro 8" Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY8.4B - Image 2 DS18 4-Ohm Pro 8" Hybrid Mid-Range Loudspeaker with Built-in Driver - PRO-HY8.4B - Image 2
DS18's HYBRID speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered pro audio mega speaker combines both a 8" high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.

Features:
  • Hybrid design combines high wattage midrange and driver together in one beautiful frame.
  • High volume 8" and 1" driver rated at 250w RMS and 500 Max for crazy loud volume in a full range of frequencies.
  • Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!
Technical Details
  • Nominal Diameter: 8”
  • Nominal Impedance: 4 Ohms
  • RMS Power Handling: 250W
  • MAX Power Handling: 500W
  • Sensitivity (1w/1m): 97dB
  • Frequency Response: 80Hz-20KHz
  • Recommended Hi Pass Crossover: 100 Hz
  • Number of Ways: 2
  • Pair or Single: Single
MID-RANGE SPECIFICATIONS
  • Voice Coil Diameter: 1.5” / 38.6 mm
  • Voice Coil Former Material: Glass Fiber
  • Winding Material: CCAW
  • Cone Material: Water Resistant Paper
  • Surround Material: Cloth
  • Basket Material: Aluminum
  • Basket Color/Finish: Glossy Red
  • Magnet Material: Ferrite
  • Magnet Weight: 27 oz
  • Displacement volume: 0.051L
THIELE & SMALL PARAMETERS
  • Equivalent Volume: Vas 10.048L
  • Excursion (one way): Xmax 9.2 mm
  • Free Air Resonance: FS 135Hz
  • Mechanical Factor: Qms 5.96
  • Electrical Factor: Qes 1.321
  • Total Factor: Qts 1.011
  • Mechanical Mass: Mms 9.69g
  • Mechanical Compliance: Cms 137.345 mm/N
  • BL Factor: BL 4.58
  • Voice Coil Inductance: Le 4.22mH
  • Cone Area: Sd 226.98 Cm2
  • DC Resistance: Re 3.4 Ohms
  • Mechanical Mass w/o Air: Mmd 7.724g
DRIVER SPECIFICATIONS
  • Voice Coil Diameter: 1” / 25.4 mm
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAW
  • Diaphragm Material: Titanium
  • Magnet Material: Neodymium
  • Horn Diameter: 3.26"
MEASUREMENTS
  • Overall Diameter: 8.31" / 211mm
  • Overall Depth: 4.65" / 118.2mm
  • Front Mount Baffle Cutout: 7.1" / 180.3mm
  • Mounting Depth: 4.29" / 109mm
  • Motor Diameter: 4.59" / 116.6mm
Install Instructions:

Other Part Numbers:
DS18 #PRO-HY8.4B-FXVX
