Fabtech 3" Basic System w/ Performance Shocks Jeep JK 4WD 2007-2018

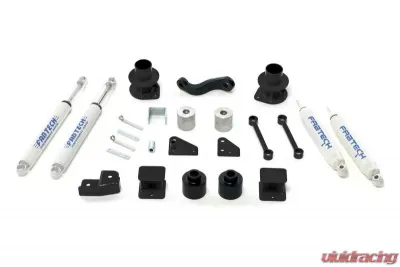

Fabtech offers the 3'' Basic system. This system utilizes the factory coil springs with 3'' steel coil spacers. With the vast array of cab and motor combinations found in the JK, utilization of the factory coil springs with this system ensures that the vehicle will receive a full 3'' of lift to clear 35/1250R17 tires. This system includes a replacement Pitman Arm, front and rear Trac Bar relocation brackets, Sway Bar Links, front and rear Bump Stop mounts, gusset kit, and more. Proper front end alignment is insured with this system due to the included adjustable alignment cams. Also included is a front driveshaft boot clamp kit to allow additional clearance between the front driveshaft and transmission during full suspension articulation. This system capitalizes on Jeep's very capable factory suspension design with the benefit of additional wheelwell clearance to run 35'' tall tires for all around on and offroad performance. As an alternative to the factory small CV driveshafts we offer Heavy Duty units featuring large 1310 U-joints for increased strength. These driveshafts will directly replace the factory assemblies for use with the 3'' Basic System.

3" BASIC SYS W/PERF SHKS 2007-18 JEEP JK 4WD

Features

California Proposition 65: WARNING: Cancer & Reproductive Harm and image
Title: Fabtech 3" BASIC SYS W/PERF SHKS 2007-18 JEEP JK 4WD
TIRE SIZE - 35/12.50R17 WHEEL - 17X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/4 1/2" BS W/CUTTING; TIRE SIZE - 37/12.50R20 WHEEL - 20X9 W/5" BS W/CUTTING; W/TUBE FENDERS: TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 1/2" BS W/CUTTING; TIRE SIZE - 325/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9 W/4 1/2" BS W/MINOR TRIMMING; 148. EXHAUST SPACERS REQUIRED FOR ALL INSTALLATIONS ON 2012-CURRENT JEEP WRANGLERS; 155. OFFROAD USE REQUIRES DRIVESHAFTS FOR 2 DOOR MODEL 07-11 (FRONT FTS94057) (REAR FTS94051); 156. OFFROAD USE REQUIRES DRIVESHAFTS FOR 2 DOOR MODEL 12-18 (FRONT FTS94057) (REAR FTS94058); 157. OFFROAD USE REQUIRES DRIVESHAFTS FOR 4 DOOR MODEL 07-11 (FRONT FTS94057) (REAR FTS94052); 158. OFFROAD USE REQUIRES DRIVESHAFTS FOR 4 DOOR MODEL 12-18 (FRONT FTS94057) (REAR FTS94059)

Notes:

Proposition 65

$/!\ warning$ WARNING: Cancer and Reproductive Harm

https://www.P65Warnings.ca.gov

Make Vehicle	Model	Submodel	Year
2011 Jeep Wrangler 70th Anniversary	Wrangler	70th Anniversary	2011
2010 Jeep Wrangler Islander	Wrangler	Islander	2010
2007-2015, 2017 Jeep Wrangler Rubicon	Wrangler	Rubicon	2007-2015, 2017
2007-2015, 2017 Jeep Wrangler Sahara	Wrangler	Sahara	2007-2015, 2017
2010-2015, 2017 Jeep Wrangler Sport	Wrangler	Sport	2010-2015, 2017
2012 Jeep Wrangler Unlimited	Wrangler	Unlimited	2012
2012 Jeep Wrangler Unlimited Altitude	Wrangler	Unlimited Altitude	2012
2010, 2012 Jeep Wrangler Unlimited Mountain	Wrangler	Unlimited Mountain	2010, 2012
2007-2015, 2017 Jeep Wrangler Unlimited Rubicon	Wrangler	Unlimited Rubicon	2007-2015, 2017
2007-2015, 2017 Jeep Wrangler Unlimited Sahara	Wrangler	Unlimited Sahara	2007-2015, 2017
2010-2015, 2017 Jeep Wrangler Unlimited Sport	Wrangler	Unlimited Sport	2010-2015, 2017
2007-2011 Jeep Wrangler Unlimited X	Wrangler	Unlimited X	2007-2011
2007-2011 Jeep Wrangler X	Wrangler	X	2007-2011
2009 Jeep Wrangler X-S	Wrangler	X-S	2009
2018 Jeep Wrangler JK Rubicon	Wrangler JK	Rubicon	2018
2018 Jeep Wrangler JK Sahara	Wrangler JK	Sahara	2018
2018 Jeep Wrangler JK Sport	Wrangler JK	Sport	2018
2018 Jeep Wrangler JK Unlimited Rubicon	Wrangler JK	Unlimited Rubicon	2018
2018 Jeep Wrangler JK Unlimited Sahara	Wrangler JK	Unlimited Sahara	2018
2018 Jeep Wrangler JK Unlimited Sport	Wrangler JK	Unlimited Sport	2018

Who is Fabtech?

Fabtech is an aftermarket automotive company that specializes in creating suspension parts for various pick-up trucks, SUVs, and other offroad vehicles. They have been doing the business for more than 20 years and have consistently provided their customer products that are top-notched and have garnered multiple awards for its innovative design. Today, they have established their brand as one of the leading companies in the market.

Advanced Manufacturing Facility

The company uses advanced technology to its advantage in creating its products. By utilizing the most high-tech software available, they are able to create designs that are on the cutting edge. All their works and manufacturing processes are done in house using their 100,000 sq feet facility. It houses multiple laser cutters, forming equipment, CNC machines, robotic welders not to mention the leading skilled welders and engineers that help the company create a consistent product that has the same high quality expected from them.

Fabtech creates their product to be easy to install and should provide a trouble-free experience to all their clients. Their product comes with all the necessary hardware needed and is a direct fit to the original parts’ location.

All their products have been tried and tested rigorously to make sure that it passes the high-quality standard the company has imposed on itself. This allows their customers to have a product that is superior to its competitors and functions the way it’s supposed to do.

Purchase Fabtech Products at Vivid Racing

If you want a suspension to upgrade for your vehicle that would be able to improve the way your car look and perform, then Fabtech is the brand for you. They offer products for different vehicles makes such as the ones from Toyota, GM, Ford, Nissan, Chevy and Jeep to name a few. Visit Vivid Racing and check out the list of their products that would fit your specific vehicle.

The Limited Lifetime Warranty excludes the following Fabtech items; bushings, bump stops, ball joints, uniballs, tie rod ends, limiting straps, cross shafts, heim joints and driveshafts. These parts are subject to wear and are not considered defective when worn. They are warranted for 60 days from the date of purchase for defects in workmanship.

Dirt Logic and Performance Coilover take apart shocks are considered a serviceable shock with a one year warranty on leakage only. Service seal kits are available separately for future maintenance. All other shocks are covered under our Limited Lifetime Warranty.

Fabtech does not warrant any product for finish, alterations, modifications and/or installation contrary to Fabtech's instructions. Alterations to the finish of the parts including but not limited to painting, powder coating, plating and/or welding will void all warranties. Some finish damage may occur to parts during shipping, which is considered normal and is not covered under warranty.

Fabtech products are not designed nor intended to be installed on vehicles used in race applications or for racing purposes or for similar activities. (A "RACE" is defined as any contest between two or more vehicles, or any contest of one or more vehicle against the clock, whether or not such contest is for a prize). This warranty does not include coverage for police or taxi vehicles, race vehicles, or vehicles used for government or commercial purposes. Also excluded from this warranty are sales outside of the United States of America.

Installation of most suspension products will raise the center of gravity of the vehicle and will cause the vehicle to handle differently than stock. It may increase the vehicle's susceptibility to a rollover, on road and off road, at all speeds. Extreme care should be taken to operate the vehicle safely at all times to prevent rollover or loss of control resulting in serious injury or death. Fabtech front end Desert Guards may impair the deployment or operation of vehicles equipped with supplemental restraining systems/air bag systems and should not be installed if the vehicle is equipped as so.

Fabtech makes every effort to ensure suspension product compatibility with all vehicles listed on the website, but due to unknown auto manufacturer's production changes and/or inconstancies by the auto manufacturer, Fabtech cannot be responsible for 100% compatibility, including the fitment of tire and wheel sizes listed. The Tire and Wheel sizes listed in Fabtech's website are only a guideline for street driving with noted fender trimming. Fabtech is not responsible for damages to the vehicle's body or tires. Fabtech is not responsible for premature wear of factory components due to the installation of oversized tires and wheels.

Fabtech's obligation under this warranty is limited to the repair or replacement, at Fabtech option, of the defective product only. All costs of removal, installation or re-installation, freight charges, incidental or consequential damages are expressly excluded from this warranty. Fabtech is not responsible for damages and/or warranty of other vehicle parts related or non related to the installed Fabtech product. This warranty is expressly in lieu of all other warranties expressed or implied. This warranty shall not apply to any product that has been subject to accident, negligence, alteration, abuse or misuse as determined by Fabtech.

Fabtech suspension components must be installed as a complete system including shocks as shown on our website. All warranties will become void if Fabtech parts are combined and/or substituted with other aftermarket suspension products. Combination and/or substitution of other aftermarket suspension parts may cause premature wear and/or product failure resulting in an accident causing injury or death. Fabtech does not warrant products not manufactured by Fabtech.

Depending on the condition of the factory suspension components retained after the installation of a Fabtech suspension not all vehicles may have the same ride stance front to rear as described in the website. The blue color of suspension components shown in all Fabtech photographs are for display purposes only. Majority of all Fabtech components will be black specifically where noted with part numbers ending in BK.

Installation of Fabtech product may void the vehicles factory warranty; it is the consumer's responsibility to check with their local vehicle's dealer for warranty disposition before the installation of the product. Some state laws may prohibit modification of suspension to a vehicle in whole or in part. It is the responsibility of the installer and consumer to consult local laws prior to the installation of any Fabtech suspension product to comply with such written laws.

It is the responsibility of the distributor and/or the retailer to review all warranties and warnings of Fabtech products with the consumer prior to purchase.

Fabtech reserves the right to super cede, discontinue, change the design, finish, part number and/or application of parts when deemed necessary without written notice. Fabtech is not responsible for misprints or typographical errors within the website or price sheet.
