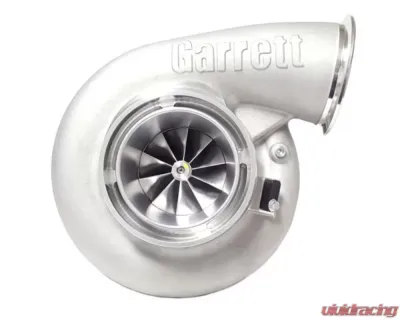

Garrett G45-1350 Standard Rotation Super Core
$4256.05
Free Shipping
Description:
  • Garrett G-Series G45-1350 (72MM compressor inducer diameter) Supercore only (Turbo W/O turbine housing) capable of 1350HP!
Features:
  • Quick spooling, high horsepower solution for 2.0 liter up to 8.0 liter engine platforms
  • G Series compressor aero increases flow up to 24% (compared to GTX4508R)
  • 67mm compressor inducer sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street
  • Fighter (please check relevant rulebook)
  • Dual ceramic ball bearing with steel cages
  • G Series turbine aero increases flow 14% (compared to GTX4508R)
  • Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
  • Lightweight aluminum backplate
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
  • Fully machined speed sensor and pressure ports
  • Water fittings included with super core
Specification:

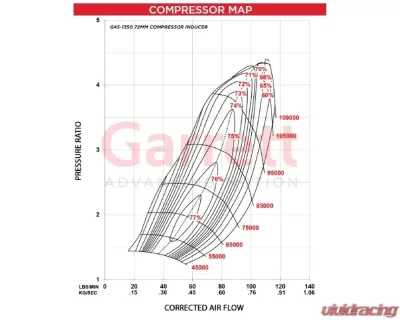

  • Compressor Wheel Inducer: 72mm
  • Compressor Wheel Exducer: 102mm
  • Compressor Wheel Trim: 51
  • Compressor Housing A/R: 0.85

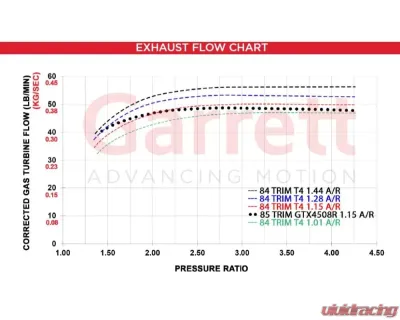

  • Turbine Wheel Inducer: 89mm
  • Turbine Wheel Exducer: 82mm
  • Turbine Wheel Trim: 84
Coolant (Water) and Oil Fittings, Flanges, and Components Solutions:
  • Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting and Lines
  • Oil feed flange (-4 AN with built-in Restrictor): ATP-FLA-040
  • Oil feed gasket: GRT-GSK-011
  • Oil drain flange: ATP-FLA-009 (Other oil drain flange options)
  • Oil drain gasket: GRT-GSK-007
  • V-Band Compressor Outlet Flange/Clamp Set: ATP-FLS-055
Note:
  • Alternate coolant and oil fittings and flanges are available.
Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Garrett Banner

Who is Garrett?

When automotive guys hear the brand Garrett, the first thing that comes to mind is turbos. Garrett has been associated with turbochargers since it began in the 1950s. John Clifford Garrett, the company’s founder, was initially working on aircraft tools and supply. He then, later on, developed a turbocharger for a Caterpillar D9 crawler tractor which jumpstarted the beginning of the turbocharged area for all land-based vehicles, specifically the automotive industry.

Today, the company has sold its products to approximately 100 million vehicles and is still growing every year.

Trusted by Everyone

Garett has consistently made high-quality precision products that they have become the turbo supplier of some of the top automotive brands in the world. They have provided better performance, greater torque, and improved fuel efficiency while still being reliable to be used daily.

Chosen by Champions

In the early days, racing cars tend to use superchargers as their source of horsepower, but with the introduction of turbochargers, it has given racers other alternatives to improve the performance of their race cars. Garrett turbos are now being used by different racing disciplines around the world which includes Formula one, FiA World rally, and the 24 Hrs of Le Mans, just to name a few.

Continuous Innovation

Garrett has always pushed itself to provide its customers the best. With the advancement in automotive technology, Garrett has also helped revolutionize the industry by setting their mark on hybrid and electric powered vehicles.

Purchase Garrett at Vivid Racing

If you are in search of a product that can dramatically improve your vehicle performance, then Garrett is the brand for you. With over 60 years of experience, they were able to gain the trust of multiple car enthusiasts and car manufacturers. They have cemented their position as the industry leader when it comes to turbochargers. Visit Vivid Racing and see the list of their products specific for your needs.




Garrett warrants to Buyer that at the time of shipment and for the Warranty Period: (i) the Product will be free from defects in workmanship and materials, and (ii) the Product will comply with the drawings, specifications, vehicle applications, and vehicle operating conditions set forth in the applicable mutually agreed and signed Turbocharger or Thermal Release Agreement ("TRA"). If a TRA is not signed by the Parties, then warranty is limited to (i) only.
    11.2.1 Services will be performed in a competent and professional manner, by qualified personnel under the direction of and control of Garrett, and in accordance with industry standards.
This Limited Warranty does not apply to prototype, development, and preproduction products. All prototype, development, and pre-production Products are accepted by Buyer on an "AS IS" basis with no warranties whatsoever. Furthermore, Garrett shall not be responsible for any Nonconformance if the Product has been exposed or subjected to any:
  1. use of the Product on an engine, vehicle, or vehicle application other than specified in the applicable agreed and signed TRA; or
  2. operation of an engine, vehicle, or vehicle application outside of the limits and operating parameters including, but not limited to, pressures, rotational speed, or temperature specified in the applicable agreed and signed TRA; or
  3. maintenance, repair, overhaul, installation, storage, operation or use, which is improper or not in accordance with Garrett's instructions, manuals, or specifications; or
  4. use of the Product in racing or competition vehicles of any kind, or for other than automotive purposes such as but not limited to aerospace or marine use, or other use exceeding the limitations established by Garrett, or are installed on engines, or vehicles, or vehicle applications not specifically approved by Garrett; or
  5. alteration, modification, including by "tuning," or repair by anyone other than Garrett or those specifically authorized by Garrett;
  6. accident, contamination, foreign object damage, abuse, neglect or negligence after shipment to Buyer; or
  7. use of counterfeit or replacement parts that are not manufactured or approved by Garrett for use in Garrett’s manufactured Products; or
  8. damage caused by failure of any hardware or software not supplied by Garrett or a Garrett supplied Product not under warranty.
To view full warranty information please Click Here.
