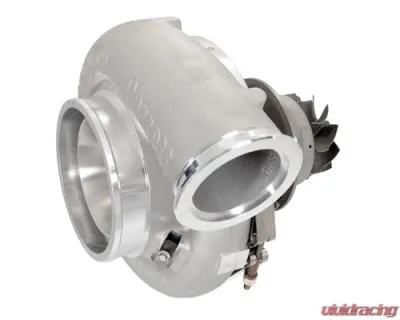

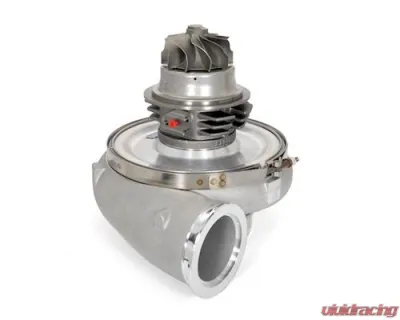

Garrett Gen II GTX4720R 80mm Supercore Turbocharger Without Turbine Housing
$5226.09
Free Shipping

If you're diving into the world of performance turbochargers, you’ve probably heard of the Garrett GEN2 GTX4720R, also known as the GEN2 GTX47-80 and GEN2 GTX8084. This isn't just any turbo; it’s a serious piece of engineering designed for those who want to push their builds to the limit. What really sets this turbo apart is its responsiveness, thanks to the high-flowing Gen II GTX 80mm compressor wheel. If you're racing in classes that cap the compressor wheel inducer at 80mm, this is your go-to option.

Let’s talk features. The Gen II compressor wheel boasts some impressive aerodynamics, delivering a flow increase of about 9% to 15%. That’s not just numbers; it translates to real-world performance. The larger .88 A/R compressor housing volute is a game-changer, and the 120mm compressor exducer—now with an extra 2mm—has 30% lower inertia. This means quicker spool times and more power when you need it most. Plus, it’s compatible with both GT and GTX turbine housings, which adds to its versatility.

Now, for the specs that matter: you’re looking at an 80mm compressor wheel inducer and a 120mm exducer with a trim of 45. The compressor housing has a .88 A/R with a 6-inch inlet (cast ported shroud) and a 3.5" V-Band outlet. On the turbine side, you’ve got a 93mm inducer and an 84mm exducer with a trim of 82. These numbers mean business and are designed for serious performance enthusiasts.

And if you’re wondering about the nuts and bolts of installation, Garrett has you covered. You can grab components like the oil feed flange (Product Code: ATP-FLA-008), oil feed gasket (Product Code: GRT-GSK-011), and oil drain flange (Product Code: ATP-FLA-035) easily. They even offer an alternate set of oil fittings and flanges if you need something specific.

In short, the GRT-TBO-C86 ATP Turbo Gen2 GTX4720R 80mm Supercore Turbo without the turbine housing is a solid choice for anyone serious about turbocharging their ride. It’s built for performance, reliability, and a bit of that adrenaline rush we all crave on the open road or track. So, if you're ready to take your setup to the next level, this turbo might just be the upgrade you’ve been looking for.
