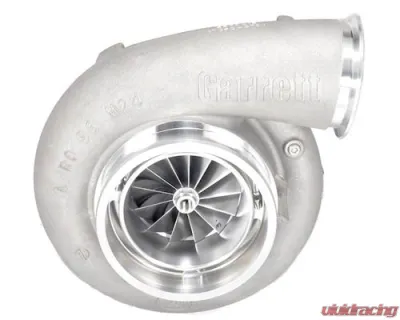

Garrett Gen II GTX5544R 102mm Turbocharger with 1.00 A/R T6 Undivided Turbine Housing
$6995.00
Free Shipping

Garrett GEN2 GTX5544R Turbocharger

If you’re serious about pushing your build to the next level, the Garrett GEN2 GTX5544R is a turbo that you need to check out. This isn’t just any turbo; it’s a beast designed for those who want to make some serious power without breaking a sweat. With a 102mm compressor wheel, it’s the go-to choice for race classes that cap you at that size. Trust me, this thing flows like a river.

What Makes It Stand Out?

  • Next-Gen Compressor Wheel: The Gen II aerodynamics are no joke. You’ll get better efficiency and boost response, which is crucial when you’re on the track.
  • Power Hungry: Supports over 2,750 horsepower. Yeah, you read that right. This turbo is built for serious power setups.
  • Big Volute: The .96 A/R compressor housing volute is larger, which means it can handle more air and give you that extra kick when you need it.
  • Improved Exducer Size: At 144mm, the comp exducer is up by 11mm from previous models, which translates to more airflow and better performance.
  • Versatile Fit: This turbo is compatible with both GT and GTX turbine housings, so you’ve got options when it comes to your setup.

Specs You Should Know

  • Compressor Wheel Inducer: 102mm
  • Compressor Wheel Exducer: 144mm
  • Compressor Wheel Trim: 50
  • Compressor Housing: .96 A/R, 6 Inch Inlet (cast ported shroud), and 3.5" V-Band Outlet
  • Turbine Wheel Inducer: 112mm
  • Turbine Wheel Exducer: 102mm
  • Turbine Wheel Trim: 84
  • Turbine Housing: 1.00 A/R, T6 un-divided Inlet and 5.0" V-Band Outlet

Need Some Extra Parts?

We all know that when you’re upgrading, you might need a few more bits and pieces. Here’s a quick list of what you might want to grab:

  • Oil feed flange: ATP-FLA-008
  • Oil feed gasket: GRT-GSK-011
  • Oil drain flange: ATP-FLA-035
  • Oil drain gasket: GRT-GSK-035
  • Compressor Housing Outlet Flange and Clamp Set: ATP-FLS-055
  • Speed Sensor Kit: ATP-ACS-032
  • T6 Inlet Flange (for Turbo Manifold): ATP-FLS-010
  • T6 Gasket: ATP-GSK-017
  • V-Band Outlet Flange (for Downpipe): ATP-FLS-092
  • V-Band Outlet Clamp: CLC-CLA-022

So, if you’re ready to take your performance to the next level, the Garrett GEN2 GTX5544R is your ticket to ride. Just make sure you have the right setup to handle all that power!
