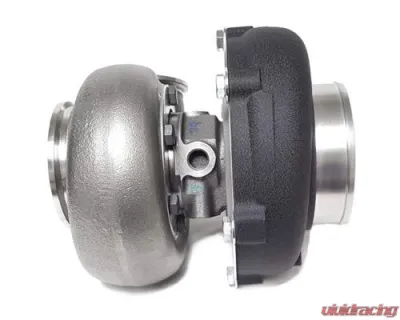

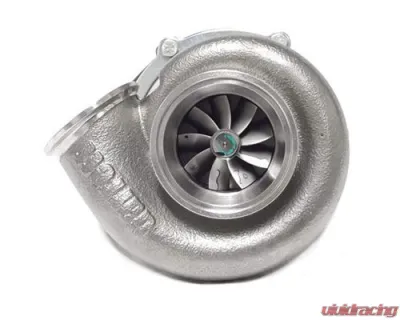

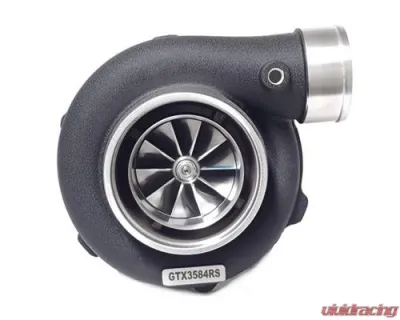

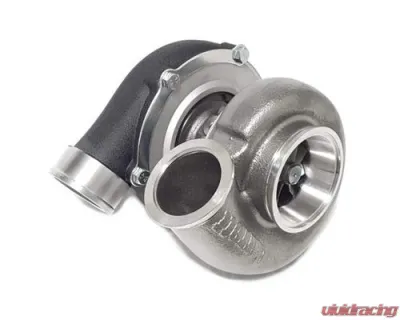

Garrett Gen2 GTX3584RS Turbocharger: Performance Redefined
If you're looking to take your turbocharged setup to the next level, the Garrett Gen2 GTX3584RS turbocharger is a game changer. Designed for serious power enthusiasts, this dual ball bearing turbocharger is built to deliver exceptional performance and reliability. With its compact T04E frame featuring a 4" inlet and a 2.5" outlet, it fits seamlessly into a variety of builds, making it a perfect upgrade for owners of high-performance vehicles.
Why Choose the GTX3584RS?
The GTX3584RS is engineered to support up to 1,000HP, thanks to its advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel. This turbocharger is not just about power; it’s about efficiency, too. The compact design allows for better fitment while maintaining outstanding performance characteristics. This means you can achieve the boost you need without compromising space or ease of installation.
Features
- Advanced aerodynamics with a Garrett GTX GEN2 billet aluminum compressor wheel
- Ultra high flow "RS" blade profile turbine wheel for enhanced exhaust flow
- Durable dual ball bearing CHRA rotating assembly for rapid spool-up
- Capable of supporting up to 1,000HP, perfect for track and street applications
Technical Specifications
- Compressor Wheel Inducer: 67mm
- Compressor Wheel Exducer: 84mm
- Compressor Wheel Trim: 64
- Compressor Housing: T04E Frame with a 4" inlet and 2.5" outlet
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84
- Turbine Housing: .83 A/R V-Band Inlet and V-Band Outlet
Installation Components
To ensure a smooth installation process, consider these essential components:
- Coolant Options: Requires 2 units of 14mm Coolant Fitting and Lines
- Oil Feed: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil Drain Flange: Product Code: ATP-FLA-010
- Oil Drain Gasket: Product Code: GRT-GSK-008
- V-Band Inlet Flange: Product Code: ATP-FLS-191
- V-Band Inlet Clamp: Product Code: CLC-CLA-047
- GT 3" V-Band Outlet Flange: Product Code: ATP-FLS-246
- V-Band Outlet Clamp: Product Code: CLC-CLA-048
Fitment Notes
This turbocharger is compatible with a variety of setups but is specifically designed for vehicles that can benefit from its unique features. Keep in mind that the GTX3584RS includes a new blade profile "RS" turbine wheel, which is not compatible with turbine housings designed for Garrett GT35, GTX35, and GTX35 GEN2 series models. Always verify fitment based on your specific vehicle model.
Customer Feedback
Ford F-150 owners have reported incredible results with the GTX3584RS, stating, “Installed this on my 2021 F-150 with a built 5.0L. The spool is insane, and I’m pushing over 800HP without any issues. It fits perfectly in the engine bay and has made tuning a breeze.”
Don't settle for less when it comes to turbocharging your setup. The Garrett Gen2 GTX3584RS is engineered for those who demand the best in performance and reliability.
