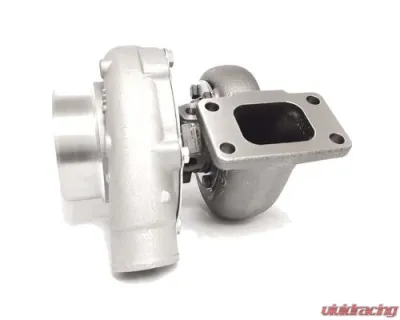

Garrett GT2871 Turbocharger .63 A/R T31 4 Bolt Narrow Housing - 450HP Potential - GRT-TBO-F74
Garrett GT2871 Turbocharger .63 A/R T31 4 Bolt Narrow Housing - 450HP Potential - GRT-TBO-F74 - Image 3 Garrett GT2871 Turbocharger .63 A/R T31 4 Bolt Narrow Housing - 450HP Potential - GRT-TBO-F74 - Image 2 Garrett GT2871 Turbocharger .63 A/R T31 4 Bolt Narrow Housing - 450HP Potential - GRT-TBO-F74 - Image 3

If you're looking to up your turbo game, the Garrett GT2871R ball bearing turbocharger is a solid choice. It's got this .63 A/R T31 "narrow" 4-bolt turbine housing that really packs a punch—potentially over 450 horsepower, which is nothing to scoff at. I've had my hands on this beauty, and let me tell you, it delivers.

What sets this turbo apart? First off, it features a genuine Garrett GT Aero compressor wheel that not only looks slick but also performs like a champ. The Inconel turbine wheel is another highlight; it's built to withstand some serious heat, so you know it's tough. Plus, the dual ball bearing CHRA rotating assembly means smoother operation and quicker spool times, which is a game-changer when you’re trying to get that boost on demand.

Now, let’s dive into some specs that matter. The compressor wheel has an inducer size of 53.1mm and an exducer of 71mm, with a trim of 56. The housing A/R is 0.60, which helps with efficiency. On the turbine side, you’re looking at a 53.9mm inducer and a 47mm exducer with a trim of 76. It’s a solid setup that balances power and responsiveness.

When it comes to installation, you’ll want to think about the coolant and oil fittings. You’ll need two 14mm coolant fittings and lines to get the water flowing right. For oil, a -4 AN feed line with a built-in restrictor (check out product code ATP-OIL-021) is the way to go. Don’t forget the oil drain flange (ATP-FLA-010) and the gasket (GRT-GSK-008) to seal everything up tight.

If you’re welding in a T3 inlet, there are stainless and mild steel options (ATP-FLS-038 and ATP-FLS-001, respectively). Also, grab a T3 turbine inlet gasket (GRT-GSK-005) and a 4-bolt outlet flange for your downpipe (ATP-FLS-084), along with its corresponding gasket (ATP-GSK-012) to ensure a leak-free setup.

Overall, the Garrett GT2871R is a well-rounded turbo that’s built for those who want a reliable performance upgrade. Whether you’re racing or just enjoying a spirited drive, this turbo can take your ride to the next level.

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ATP Turbo Logo

What is ATP Turbo?

Advanced Tuning Products, Inc. (ATP Turbo) is a company that is solely dedicated to turbocharging. Its main goal is to engineer and manufacture quality turbocharging components that deliver a real difference in power gains. Currently located in Hayward, California, ATP Turbo offers an extensive lineup of innovative turbo components, all of which are backed by years of experience and a solid international reputation. The brand’s current lineup includes a wide range of blow-off valves, injectors, adapters, and several other turbo components that are engineered to bring about a significant boost in power.

Dedication to Quality and Reliability

While that act of turbocharging itself is not “new”, many of the parts ATP Turbo creates are born from “fresh” ideas that arise from applying the basic principles of process improvement and re-engineering to turbo systems. Following these philosophies has helped ATP Turbo design and re-design turbocharging components that are reliable, better functioning, and, oftentimes, more simplified than their stock counterparts. ATP products can be purchased as separate components or as a complete kit. For those taking on a larger tuning project, an ATP Turbo kit is certainly the better choice as it has everything you need to get the job done efficiently.

ATP Turbo’s processes rely on the latest equipment and tools to build only the best products in a timely fashion. All of its products are built using the latest high-precision equipment like 4-axis Haas CNC milling stations and lathes. With this, the company is able to switch from prototypes to high-speed production in very little time. What’s more, they are manufactured from high-quality materials to ensure superior durability for longevity and reliability.

ATP’s turbocharging components complement the best turbochargers offered by the aftermarket industry. Garrett Engine Boosting Systems is known for its unsurpassed performance and reliability. Garrett turbo units provide the solid foundation for ATP’s turbocharging applications.

Upgrade to ATP Turbo at Vivid Racing

If you are looking for the finest turbo equipment on the market, then you’ve come to the right place. ATP Turbo manufacturer top-of-the-line turbochargers and turbo components to improve upon the already impressive performance figures of vehicles like the Ford Focus ST, Ford Fiesta ST, Subaru WRX, Mitsubishi EVO, and Hyundai Genesis. ATP produces and tests all of its own products to ensure that each part offers the consumer optimal performance gains.

If you are ready to release the potential of your ride, call our parts specialist today at (480) 966-3040. We will get you equipped with ATP Turbo and make the purchase process a simple and pleasant one.
