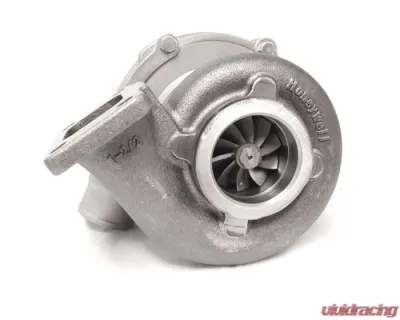

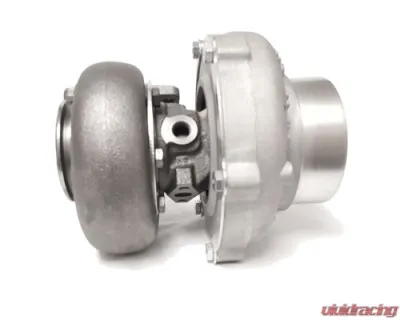

Garrett GT2871 Turbocharger .63 A/R T31 V-Band 450HP with Dual Ball Bearing CHRA
$1827.99
Free Shipping

If you're looking to kick your ride up a notch, the Garrett GT2871R ball bearing turbocharger is a solid choice. This isn't just another turbo; it's a piece of engineering that can push your engine to over 450 horsepower if you’ve got the right setup. The .63 A/R T31 "narrow" V-band turbine housing is designed to maximize efficiency while keeping the spool time nice and quick.

One of the standout features here is the genuine Garrett GT Aero compressor wheel. This thing is built for performance, with a compressor wheel inducer size of 53.1mm and an exducer size of 71mm. It’s got a compressor housing A/R of 0.60, which means you're getting a nice balance of power and response. Plus, the turbine wheel is no slouch either, boasting a 53.9mm inducer and a 47mm exducer. The Inconel turbine wheel is tough enough to handle the heat and pressure that comes with serious performance driving.

The dual ball bearing CHRA rotating assembly is another highlight. It not only helps with quicker spool times but also improves reliability. You want a turbo that can keep up with your driving, and this one is built to last.

Now, let’s talk about installation. You’ll need some specific fittings and components to get everything running smoothly. For coolant, you’re looking at 14mm fittings and lines—make sure you grab two of those. When it comes to oil feed, a -4 AN with a built-in restrictor is the way to go. Don’t forget the oil drain flange and gasket, too; you’ll need those to avoid any leaks.

For the inlet, there’s a stainless T3 weld flange available, along with a gasket for the turbine inlet. And if you’re planning to connect it to your downpipe, the V-Band "T31" narrow outlet flange and clamp will make that a breeze.

In short, the Garrett GT2871R is a turbo that delivers on performance and durability. Whether you’re upgrading your daily driver or building a dedicated race car, this turbocharger has the potential to take you where you want to go. Just make sure you’ve got the right supporting mods to really unleash its power!

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ATP Turbo Logo

What is ATP Turbo?

Advanced Tuning Products, Inc. (ATP Turbo) is a company that is solely dedicated to turbocharging. Its main goal is to engineer and manufacture quality turbocharging components that deliver a real difference in power gains. Currently located in Hayward, California, ATP Turbo offers an extensive lineup of innovative turbo components, all of which are backed by years of experience and a solid international reputation. The brand’s current lineup includes a wide range of blow-off valves, injectors, adapters, and several other turbo components that are engineered to bring about a significant boost in power.

Dedication to Quality and Reliability

While that act of turbocharging itself is not “new”, many of the parts ATP Turbo creates are born from “fresh” ideas that arise from applying the basic principles of process improvement and re-engineering to turbo systems. Following these philosophies has helped ATP Turbo design and re-design turbocharging components that are reliable, better functioning, and, oftentimes, more simplified than their stock counterparts. ATP products can be purchased as separate components or as a complete kit. For those taking on a larger tuning project, an ATP Turbo kit is certainly the better choice as it has everything you need to get the job done efficiently.

ATP Turbo’s processes rely on the latest equipment and tools to build only the best products in a timely fashion. All of its products are built using the latest high-precision equipment like 4-axis Haas CNC milling stations and lathes. With this, the company is able to switch from prototypes to high-speed production in very little time. What’s more, they are manufactured from high-quality materials to ensure superior durability for longevity and reliability.

ATP’s turbocharging components complement the best turbochargers offered by the aftermarket industry. Garrett Engine Boosting Systems is known for its unsurpassed performance and reliability. Garrett turbo units provide the solid foundation for ATP’s turbocharging applications.

Upgrade to ATP Turbo at Vivid Racing

If you are looking for the finest turbo equipment on the market, then you’ve come to the right place. ATP Turbo manufacturer top-of-the-line turbochargers and turbo components to improve upon the already impressive performance figures of vehicles like the Ford Focus ST, Ford Fiesta ST, Subaru WRX, Mitsubishi EVO, and Hyundai Genesis. ATP produces and tests all of its own products to ensure that each part offers the consumer optimal performance gains.

If you are ready to release the potential of your ride, call our parts specialist today at (480) 966-3040. We will get you equipped with ATP Turbo and make the purchase process a simple and pleasant one.
