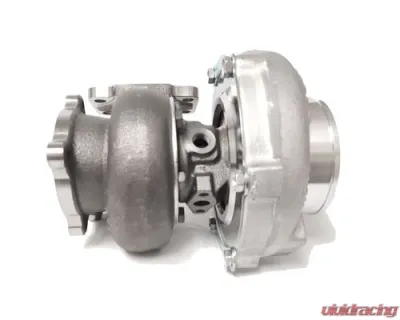

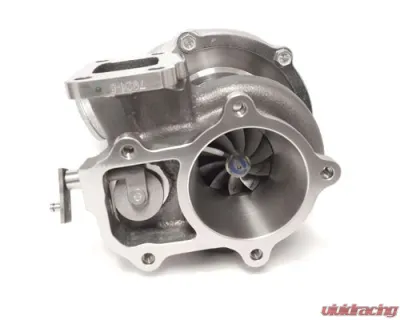

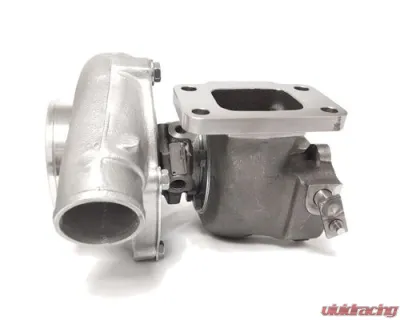

Garrett GT3071R Turbo 4" In / 2" Out DBB T3 Internal Wastegate 480+HP Potential - GRT-TBO-G69
Garrett GT3071R Turbo 4" In / 2" Out DBB T3 Internal Wastegate 480+HP Potential - GRT-TBO-G69 - Image 4 Garrett GT3071R Turbo 4" In / 2" Out DBB T3 Internal Wastegate 480+HP Potential - GRT-TBO-G69 - Image 2 Garrett GT3071R Turbo 4" In / 2" Out DBB T3 Internal Wastegate 480+HP Potential - GRT-TBO-G69 - Image 3 Garrett GT3071R Turbo 4" In / 2" Out DBB T3 Internal Wastegate 480+HP Potential - GRT-TBO-G69 - Image 4

If you're looking to kick your turbo game up a notch, the Garrett GT3071R might just be your new best friend. This little beast features a 4" inlet and a 2" outlet, and it’s packing some serious potential—think over 480 HP if you set it up right. It’s got a .82 A/R T3 internal wastegate and a GT 5 bolt exit turbine housing, which means it’s ready to handle the heat and power you’re after.

What Makes It Tick:

  • Genuine Garrett GT Aero compressor wheel: You know you’re getting quality here. This compressor wheel isn’t just for show; it’s designed to move air efficiently and effectively.
  • Inconel turbine wheel: This isn’t your run-of-the-mill turbine. The Inconel material can handle the high temps and pressures, ensuring durability when you push your setup to the limit.
  • Dual ball bearing CHRA: The rotating assembly is smooth and responsive, giving you quicker spool times. You’ll feel the difference, especially if you’re used to journal bearing turbos.

Specs You Should Know:

  • Compressor Wheel Inducer: 53mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 56
  • Compressor Housing A/R: 0.50
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

Installation Needs:

When you’re getting this turbo in place, you’ll want to pay attention to a few components:

  • For coolant lines, you’ll need 14mm fittings (you’ll want two of these).
  • Oil feed? Go for the -4 AN with a built-in restrictor (check out Product Code: ATP-OIL-021).
  • Don’t forget the oil drain flange (Product Code: ATP-FLA-010) and gasket (Product Code: GRT-GSK-008) to keep everything sealed up tight.

Flanges and Gaskets:

To make your installation a breeze, here’s what you’ll need:

  • T3 Inlet Weld Flange (Stainless Steel): Product Code: ATP-FLS-038 (or mild steel with ATP-FLS-001)
  • Gasket for T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
  • T3 5 bolt flange for GT Internally Wastegated T3 exhaust housing: Product Code: ATP-FLS-075
  • Gasket for Garrett T3 Flanged, 5 bolt "GT": Product Code: ATP-GSK-075

So, if you’re ready to boost your ride's performance and reliability, the Garrett GT3071R is definitely worth considering. Just make sure you’ve got the right setup to really make it shine!
