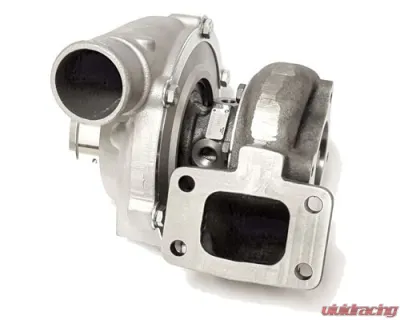

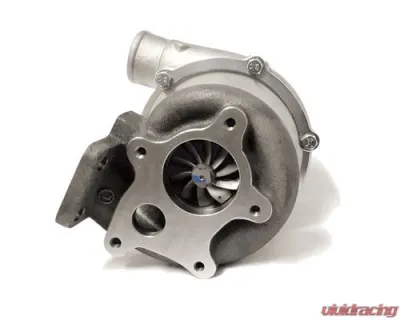

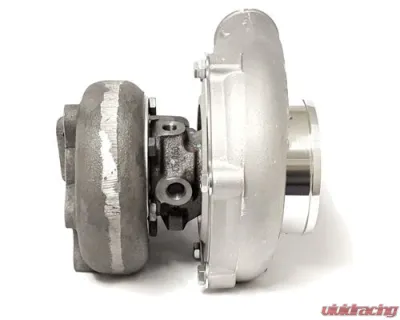

Garrett GT3071R Turbocharger T3 5 Bolt Ford Style .82 A/R 4" Inlet 2" Outlet 480+HP - GRT-TBO-F80
Garrett GT3071R Turbocharger T3 5 Bolt Ford Style .82 A/R 4" Inlet 2" Outlet 480+HP - GRT-TBO-F80 - Image 4 Garrett GT3071R Turbocharger T3 5 Bolt Ford Style .82 A/R 4" Inlet 2" Outlet 480+HP - GRT-TBO-F80 - Image 2 Garrett GT3071R Turbocharger T3 5 Bolt Ford Style .82 A/R 4" Inlet 2" Outlet 480+HP - GRT-TBO-F80 - Image 3 Garrett GT3071R Turbocharger T3 5 Bolt Ford Style .82 A/R 4" Inlet 2" Outlet 480+HP - GRT-TBO-F80 - Image 4

If you're looking to boost your ride's power without going overboard, the Garrett GT3071R turbo is a solid choice. This little beast can push out over 480 horsepower, which is pretty impressive considering its size. The 4-inch inlet and 2-inch outlet give you some serious airflow, and with the .82 A/R turbine housing, you're in for a wild ride.

What sets this turbo apart? Well, for starters, it features a genuine Garrett GT Aero compressor wheel that’s designed to maximize efficiency while minimizing lag. The turbine wheel is made from Inconel, which is tough as nails and can handle the heat like a champ. Plus, the dual ball bearing CHRA rotating assembly means smoother operation and quicker spool times—no one likes waiting around for the boost to kick in.

  • Compressor Wheel Inducer: 53mm
  • Compressor Wheel Exducer: 71mm
  • Compressor Wheel Trim: 56
  • Compressor Housing A/R: 0.50
  • Turbine Wheel Inducer: 60mm
  • Turbine Wheel Exducer: 55mm
  • Turbine Wheel Trim: 84

Now, let’s talk fitment. If you're planning on running this turbo, you'll need to sort out some coolant and oil fittings. For coolant, grab two 14mm fittings and lines. For oil, the -4 AN with a built-in restrictor (ATP-OIL-021) is what you need to keep everything flowing smoothly. Don't forget the oil drain flange (ATP-FLA-010) and gasket (GRT-GSK-008) to prevent any leaks.

For the install, you’ll want a T3 inlet weld flange, and whether you go with stainless (ATP-FLS-038) or mild steel (ATP-FLS-001) is up to you. Make sure to grab the gasket for the T3 turbine inlet (GRT-GSK-005) and the discharge flange (ATP-FLS-036 for stainless or ATP-FLS-035 for mild steel). Oh, and don’t skip the gasket for the turbine outlet flange (ATP-GSK-019) if you’re running an externally gated setup.

In short, the Garrett GT3071R is a great option if you want to crank up the power without going full race car. It's reliable, efficient, and with the right setup, it can take your ride to the next level.
