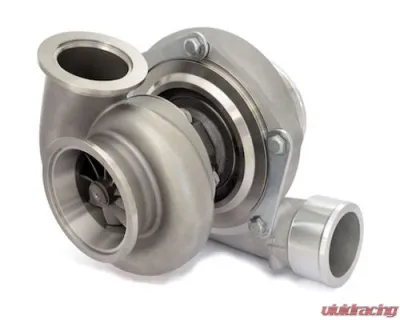

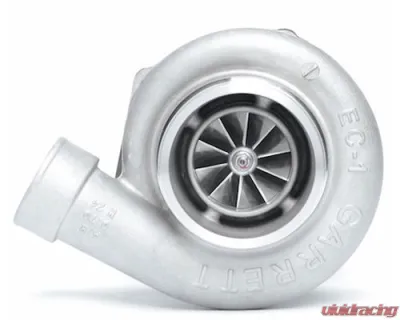

Garrett GTW3884JB 64mm Journal Bearing Turbo with .82AR V-Band Housing, 900HP Potential
$1295.00
Free Shipping

ATP Turbo GRT-TBO-614 - Performance Turbocharger

If you're looking to elevate your vehicle's performance, the ATP Turbo GRT-TBO-614 might just be what you need. This turbocharger is designed to offer impressive power potential and efficiency, making it a solid choice for enthusiasts and racers alike.

Key Features:

  • 64mm Journal Bearing Turbo: The GRT-TBO-614 features a 64mm compressor wheel, providing a robust flow rate that can support up to 900 horsepower.
  • Stainless Steel V-Band Connections: The turbo comes with stainless steel V-band inlet and outlet connections, ensuring a secure fit and durability over time.
  • Compatible Turbine Housing: It includes a .82 A/R turbine housing that is designed to mount directly to existing TiAL flanged turbo manifolds and down-pipes, simplifying installation for those with compatible setups.

Specifications:

  • Compressor Wheel Inducer: 64.3mm
  • Compressor Wheel Exducer: 84.4mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 74.2mm
  • Turbine Wheel Exducer: 64.6mm
  • Turbine Wheel Trim: 76
  • Compressor Housing: T04S Frame with 4" inlet and 2.5" outlet, featuring built-in anti-surge design.

Customer Feedback:

Many users have praised the GRT-TBO-614 for its performance, with one customer noting, "The spool time is impressive, and I've noticed a significant increase in power across the board." Another user mentioned, "Installation was straightforward, and the quality of the materials is evident. I’m really happy with my purchase!"

Important Notes:

  • This turbocharger is not a direct drop-in replacement for small frame Garrett GT or GTX series turbos.
  • The GTW Series bearing housing is bulkier than the Garrett GT and GTX series, so ensure you have adequate space.
  • Oil fittings and components differ from smaller Garrett models, so check compatibility before purchasing.

Additional Components:

For optimal installation, consider these additional components:

  • Oil feed flange: Product Code: ATP-FLA-041
  • Oil feed gasket: Product Code: ATP-GSK-026
  • Oil drain flange: Product Code: ATP-FLA-042
  • Oil drain gasket: Product Code: ATP-GSK-027
  • 8mm x 1.25 (thread pitch) bolts: Product Code: MIA-FST-034

Turbine Housing Components:

  • V-Band Inlet Flange (manifold side): Product Code: ATP-FLS-093
  • V-Band Inlet Clamp: Product Code: CLC-CLA-025
  • V-Band Outlet Flange (down-pipe side): Product Code: ATP-FLS-094
  • V-Band Outlet Clamp: Product Code: CLC-CLA-026
Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ATP Turbo Logo

What is ATP Turbo?

Advanced Tuning Products, Inc. (ATP Turbo) is a company that is solely dedicated to turbocharging. Its main goal is to engineer and manufacture quality turbocharging components that deliver a real difference in power gains. Currently located in Hayward, California, ATP Turbo offers an extensive lineup of innovative turbo components, all of which are backed by years of experience and a solid international reputation. The brand’s current lineup includes a wide range of blow-off valves, injectors, adapters, and several other turbo components that are engineered to bring about a significant boost in power.

Dedication to Quality and Reliability

While that act of turbocharging itself is not “new”, many of the parts ATP Turbo creates are born from “fresh” ideas that arise from applying the basic principles of process improvement and re-engineering to turbo systems. Following these philosophies has helped ATP Turbo design and re-design turbocharging components that are reliable, better functioning, and, oftentimes, more simplified than their stock counterparts. ATP products can be purchased as separate components or as a complete kit. For those taking on a larger tuning project, an ATP Turbo kit is certainly the better choice as it has everything you need to get the job done efficiently.

ATP Turbo’s processes rely on the latest equipment and tools to build only the best products in a timely fashion. All of its products are built using the latest high-precision equipment like 4-axis Haas CNC milling stations and lathes. With this, the company is able to switch from prototypes to high-speed production in very little time. What’s more, they are manufactured from high-quality materials to ensure superior durability for longevity and reliability.

ATP’s turbocharging components complement the best turbochargers offered by the aftermarket industry. Garrett Engine Boosting Systems is known for its unsurpassed performance and reliability. Garrett turbo units provide the solid foundation for ATP’s turbocharging applications.

Upgrade to ATP Turbo at Vivid Racing

If you are looking for the finest turbo equipment on the market, then you’ve come to the right place. ATP Turbo manufacturer top-of-the-line turbochargers and turbo components to improve upon the already impressive performance figures of vehicles like the Ford Focus ST, Ford Fiesta ST, Subaru WRX, Mitsubishi EVO, and Hyundai Genesis. ATP produces and tests all of its own products to ensure that each part offers the consumer optimal performance gains.

If you are ready to release the potential of your ride, call our parts specialist today at (480) 966-3040. We will get you equipped with ATP Turbo and make the purchase process a simple and pleasant one.
