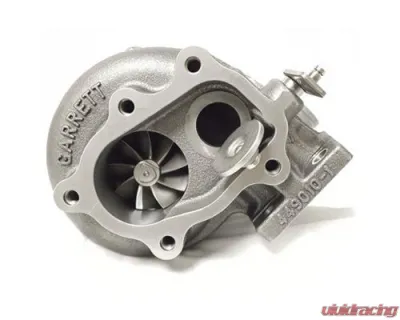

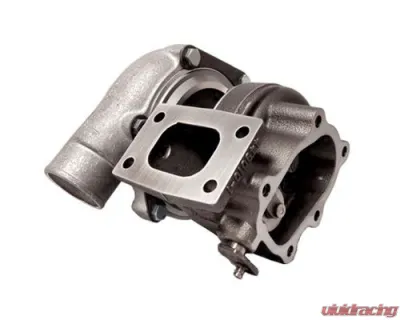

Garrett GTX2863R Dual Ball Bearing Turbo .64 A/R T25 Internal Wastegate 425HP Potential - GRT-TBO-B78
Garrett GTX2863R Dual Ball Bearing Turbo .64 A/R T25 Internal Wastegate 425HP Potential - GRT-TBO-B78 - Image 3 Garrett GTX2863R Dual Ball Bearing Turbo .64 A/R T25 Internal Wastegate 425HP Potential - GRT-TBO-B78 - Image 2 Garrett GTX2863R Dual Ball Bearing Turbo .64 A/R T25 Internal Wastegate 425HP Potential - GRT-TBO-B78 - Image 3

If you’re looking to crank up the power on your ride, the Garrett GTX2863R turbo is a solid choice. This dual ball bearing turbo comes with a .64 A/R T25 internal wastegate turbine housing and can push your setup to a potential 425HP. It’s got the kind of flow that makes a difference, whether you’re hitting the track or just want that extra kick on the street.

One of the best parts? The GTX2863R has the same external dimensions as the GT2860RS. So, if you’re already rocking a GT2860RS, swapping in the GTX2863R is a breeze. No need to mess with your engine bay—just swap it out and you’re good to go!

Specifications:

  • Compressor Wheel Inducer: 47.1mm
  • Compressor Wheel Exducer: 63.4mm
  • Compressor Wheel Trim: 56
  • Turbine Wheel Inducer: 53.9mm
  • Turbine Wheel Exducer: 47.0mm
  • Turbine Wheel Trim: 76

Fittings and Components:

When it comes to setup, you’ll need a few additional parts to get everything running smoothly:

  • Coolant Options: You’ll need 14mm coolant fittings and lines (requires 2 units).
  • Oil Feed: Go with a -4 AN line that has a built-in restrictor (check out Product Code: ATP-OIL-021).
  • Oil Drain Flange: Grab Product Code: ATP-FLA-010.
  • Oil Drain Gasket: You’ll want Product Code: GRT-GSK-008 for that seal.
  • Inlet Flange: For T25/GT25, you can use stainless steel (Product Code: ATP-FLS-037) or mild steel (ATP-FLS-002).
  • Inlet Gasket: Don’t forget the T25/GT25 turbine inlet gasket (Product Code: GRT-GSK-004).
  • Outlet Flange: For GT25R/GT28R/GT28RS/GT3071R-WG, you’ll need the stainless steel option (Product Code: ATP-FLS-088) or mild steel (ATP-FLS-081).
  • Outlet Gasket: Make sure to grab the 5-bolt gasket for Garrett T25 flanged GT28/30R-WG turbine housings (Product Code: ATP-GSK-016).

Just a heads-up: there are alternate coolant and oil fittings and flanges available if you need something specific. The GRT-TBO-B78 ATP Turbo GTX2863R is a solid upgrade for anyone looking to enhance their turbo setup without the hassle.

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ATP Turbo Logo

What is ATP Turbo?

Advanced Tuning Products, Inc. (ATP Turbo) is a company that is solely dedicated to turbocharging. Its main goal is to engineer and manufacture quality turbocharging components that deliver a real difference in power gains. Currently located in Hayward, California, ATP Turbo offers an extensive lineup of innovative turbo components, all of which are backed by years of experience and a solid international reputation. The brand’s current lineup includes a wide range of blow-off valves, injectors, adapters, and several other turbo components that are engineered to bring about a significant boost in power.

Dedication to Quality and Reliability

While that act of turbocharging itself is not “new”, many of the parts ATP Turbo creates are born from “fresh” ideas that arise from applying the basic principles of process improvement and re-engineering to turbo systems. Following these philosophies has helped ATP Turbo design and re-design turbocharging components that are reliable, better functioning, and, oftentimes, more simplified than their stock counterparts. ATP products can be purchased as separate components or as a complete kit. For those taking on a larger tuning project, an ATP Turbo kit is certainly the better choice as it has everything you need to get the job done efficiently.

ATP Turbo’s processes rely on the latest equipment and tools to build only the best products in a timely fashion. All of its products are built using the latest high-precision equipment like 4-axis Haas CNC milling stations and lathes. With this, the company is able to switch from prototypes to high-speed production in very little time. What’s more, they are manufactured from high-quality materials to ensure superior durability for longevity and reliability.

ATP’s turbocharging components complement the best turbochargers offered by the aftermarket industry. Garrett Engine Boosting Systems is known for its unsurpassed performance and reliability. Garrett turbo units provide the solid foundation for ATP’s turbocharging applications.

Upgrade to ATP Turbo at Vivid Racing

If you are looking for the finest turbo equipment on the market, then you’ve come to the right place. ATP Turbo manufacturer top-of-the-line turbochargers and turbo components to improve upon the already impressive performance figures of vehicles like the Ford Focus ST, Ford Fiesta ST, Subaru WRX, Mitsubishi EVO, and Hyundai Genesis. ATP produces and tests all of its own products to ensure that each part offers the consumer optimal performance gains.

If you are ready to release the potential of your ride, call our parts specialist today at (480) 966-3040. We will get you equipped with ATP Turbo and make the purchase process a simple and pleasant one.
