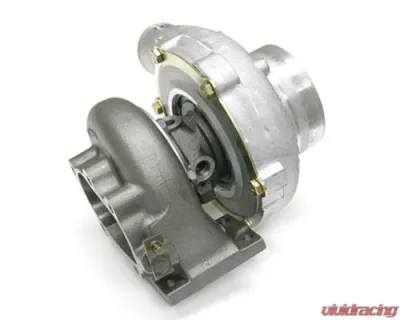

Garrett GTX2871R Turbocharger with T25 Inlet and GT28 5 Bolt Outlet, 560HP Potential
$2295.00
Free Shipping

If you're looking to kick your turbo game up a notch, the GTX2871R is where it’s at. This bad boy features a dual ball bearing setup and comes with an ultra high flow compressor that’s ready to push out some serious power—think up to 560HP if you’re really pushing it. It's got that Garrett 11-Blade technology, which means you’re getting better airflow and quicker spool times. Trust me, once you feel that boost hit, you’ll understand why this turbo is a favorite among enthusiasts.

Now, let’s talk about some of the nitty-gritty details. The GTX2871R includes a T25 inlet flange and is internally gated, which simplifies your setup. You’ve got a choice between a .64 or .86 A/R turbine housing, depending on how you want your power delivery to feel. The turbine housing matches up with the GT2871R and all the GT28 series turbos, so if you’re familiar with those, you’ll know what to expect.

  • Compressor Wheel Inducer: 54.1mm
  • Compressor Wheel Exducer: 71.4mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 53.9mm
  • Turbine Wheel Exducer: 47.0mm
  • Turbine Wheel Trim: 76
  • Standard Compressor Housing: T04E Frame with 4" inlet, 2" outlet, and built-in anti-surge.

Got options? You bet! The compressor housing comes in several flavors:

  • T04E Frame with 4" inlet, 2" outlet (default option)
  • T04E Frame with 2.75" inlet and 2" outlet
  • T04B Frame with 3" inlet and 2" outlet (same housing as GT2871R or GT28RS)
  • GT28R Compressor Housing (2 Bolt Inlet and 3 Bolt Outlet)
  • Skyline RB26 Twin Style (2 Bolt Inlet and 2 Bolt Outlet)
  • SR20DET Style (2 Bolt Inlet and 3 Bolt Outlet)

When it comes to turbine housing, you’ll find:

  • T25 Inlet, GT28 Style 5 Bolt Outlet, internally gated (choose .64 or .86 A/R)

And here's the best part: it uses the same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbos. That means if you’re swapping out an existing GT28 or GT30, this is a direct drop-in replacement. No need for complicated modifications—just bolt it on and get ready to enjoy the ride.

In short, the GTX2871R is a solid choice for anyone looking to upgrade their turbo setup. It’s built to perform and fits right into your existing system without a hassle. Get ready for some serious fun!

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ATP Turbo Logo

What is ATP Turbo?

Advanced Tuning Products, Inc. (ATP Turbo) is a company that is solely dedicated to turbocharging. Its main goal is to engineer and manufacture quality turbocharging components that deliver a real difference in power gains. Currently located in Hayward, California, ATP Turbo offers an extensive lineup of innovative turbo components, all of which are backed by years of experience and a solid international reputation. The brand’s current lineup includes a wide range of blow-off valves, injectors, adapters, and several other turbo components that are engineered to bring about a significant boost in power.

Dedication to Quality and Reliability

While that act of turbocharging itself is not “new”, many of the parts ATP Turbo creates are born from “fresh” ideas that arise from applying the basic principles of process improvement and re-engineering to turbo systems. Following these philosophies has helped ATP Turbo design and re-design turbocharging components that are reliable, better functioning, and, oftentimes, more simplified than their stock counterparts. ATP products can be purchased as separate components or as a complete kit. For those taking on a larger tuning project, an ATP Turbo kit is certainly the better choice as it has everything you need to get the job done efficiently.

ATP Turbo’s processes rely on the latest equipment and tools to build only the best products in a timely fashion. All of its products are built using the latest high-precision equipment like 4-axis Haas CNC milling stations and lathes. With this, the company is able to switch from prototypes to high-speed production in very little time. What’s more, they are manufactured from high-quality materials to ensure superior durability for longevity and reliability.

ATP’s turbocharging components complement the best turbochargers offered by the aftermarket industry. Garrett Engine Boosting Systems is known for its unsurpassed performance and reliability. Garrett turbo units provide the solid foundation for ATP’s turbocharging applications.

Upgrade to ATP Turbo at Vivid Racing

If you are looking for the finest turbo equipment on the market, then you’ve come to the right place. ATP Turbo manufacturer top-of-the-line turbochargers and turbo components to improve upon the already impressive performance figures of vehicles like the Ford Focus ST, Ford Fiesta ST, Subaru WRX, Mitsubishi EVO, and Hyundai Genesis. ATP produces and tests all of its own products to ensure that each part offers the consumer optimal performance gains.

If you are ready to release the potential of your ride, call our parts specialist today at (480) 966-3040. We will get you equipped with ATP Turbo and make the purchase process a simple and pleasant one.
