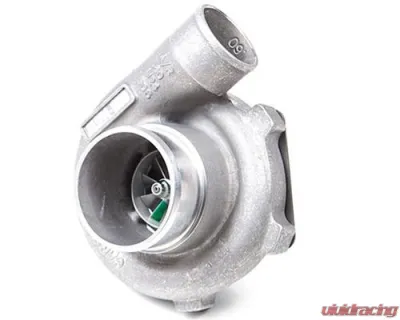

Garrett GTX3067R Dual Ball Bearing Turbo .82 A/R T3 Divided Housing 500HP+ Performance Turbo - GRT-TBO-G10
Garrett GTX3067R Dual Ball Bearing Turbo .82 A/R T3 Divided Housing 500HP+ Performance Turbo - GRT-TBO-G10 - Image 4 Garrett GTX3067R Dual Ball Bearing Turbo .82 A/R T3 Divided Housing 500HP+ Performance Turbo - GRT-TBO-G10 - Image 2 Garrett GTX3067R Dual Ball Bearing Turbo .82 A/R T3 Divided Housing 500HP+ Performance Turbo - GRT-TBO-G10 - Image 3 Garrett GTX3067R Dual Ball Bearing Turbo .82 A/R T3 Divided Housing 500HP+ Performance Turbo - GRT-TBO-G10 - Image 4

If you're looking to add some serious punch to your setup, the Garrett GTX3067R is a turbo that won't let you down. This isn't just any turbo; it's a dual ball bearing beast with a .82 A/R T3 divided turbine housing. What does that mean for you? Well, it supports over 500HP, which is perfect if you're aiming to push your ride to the next level.

Let’s break down the specs a bit:

  • Compressor Wheel Inducer: 49.7mm
  • Compressor Wheel Exducer: 67.4mm
  • Compressor Wheel Trim: 55
  • Compressor Housing: .60 A/R
  • Turbine Wheel Inducer: 60.0mm
  • Turbine Wheel Exducer: 55.0mm
  • Turbine Wheel Trim: 84

What really sets this turbo apart is the advanced Garrett GTX aero compressor wheel. It’s designed to maximize airflow and efficiency, making sure you get that snappy response you crave when you hit the gas. And with its dual ball bearing setup, you can expect quicker spool times and less lag. Seriously, it’s a game changer.

Now, if you're planning on installing this bad boy, you’ll need some specific fittings and components. Here’s what you should keep in mind:

  • For coolant, you’ll need two 14mm fittings and lines.
  • Oil feed? Grab the -4 AN with built-in restrictor (check out Product Code: ATP-OIL-021).
  • Don’t forget the oil drain flange (Product Code: ATP-FLA-010) and gasket (Product Code: GRT-GSK-008).

And if you’re working on the manifold, make sure to snag the T3 divided inlet flange (Product Code: ATP-FLS-068) and gasket (Product Code: ATP-GSK-015). For the downpipe, you’ll need the V-Band 3-inch outlet flange (Product Code: ATP-FLS-063) and the outlet clamp (Product Code: CLC-CLA-013).

Oh, and if you need alternate coolant and oil fittings, they’re available too. Just keep an eye on your setup and get what fits your needs. The Garrett GTX3067R is a solid choice for anyone looking to boost their horsepower and have some fun on the road or track!

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ATP Turbo Logo

What is ATP Turbo?

Advanced Tuning Products, Inc. (ATP Turbo) is a company that is solely dedicated to turbocharging. Its main goal is to engineer and manufacture quality turbocharging components that deliver a real difference in power gains. Currently located in Hayward, California, ATP Turbo offers an extensive lineup of innovative turbo components, all of which are backed by years of experience and a solid international reputation. The brand’s current lineup includes a wide range of blow-off valves, injectors, adapters, and several other turbo components that are engineered to bring about a significant boost in power.

Dedication to Quality and Reliability

While that act of turbocharging itself is not “new”, many of the parts ATP Turbo creates are born from “fresh” ideas that arise from applying the basic principles of process improvement and re-engineering to turbo systems. Following these philosophies has helped ATP Turbo design and re-design turbocharging components that are reliable, better functioning, and, oftentimes, more simplified than their stock counterparts. ATP products can be purchased as separate components or as a complete kit. For those taking on a larger tuning project, an ATP Turbo kit is certainly the better choice as it has everything you need to get the job done efficiently.

ATP Turbo’s processes rely on the latest equipment and tools to build only the best products in a timely fashion. All of its products are built using the latest high-precision equipment like 4-axis Haas CNC milling stations and lathes. With this, the company is able to switch from prototypes to high-speed production in very little time. What’s more, they are manufactured from high-quality materials to ensure superior durability for longevity and reliability.

ATP’s turbocharging components complement the best turbochargers offered by the aftermarket industry. Garrett Engine Boosting Systems is known for its unsurpassed performance and reliability. Garrett turbo units provide the solid foundation for ATP’s turbocharging applications.

Upgrade to ATP Turbo at Vivid Racing

If you are looking for the finest turbo equipment on the market, then you’ve come to the right place. ATP Turbo manufacturer top-of-the-line turbochargers and turbo components to improve upon the already impressive performance figures of vehicles like the Ford Focus ST, Ford Fiesta ST, Subaru WRX, Mitsubishi EVO, and Hyundai Genesis. ATP produces and tests all of its own products to ensure that each part offers the consumer optimal performance gains.

If you are ready to release the potential of your ride, call our parts specialist today at (480) 966-3040. We will get you equipped with ATP Turbo and make the purchase process a simple and pleasant one.
