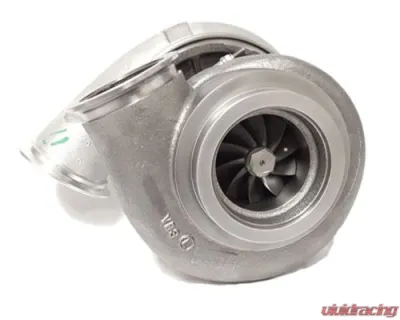

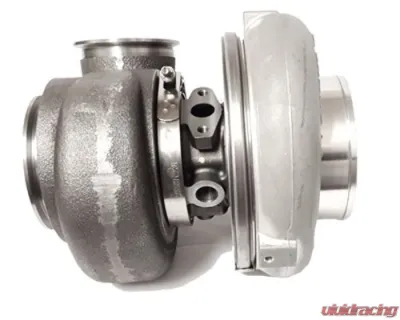

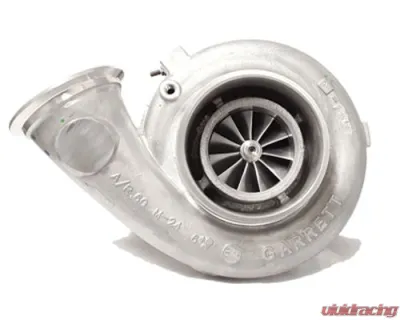

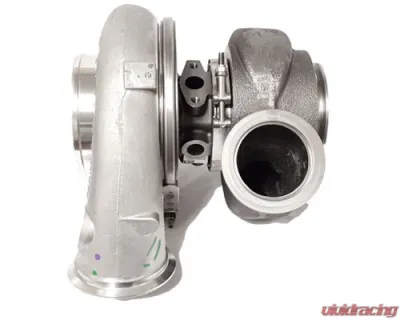

Garrett GTX4202R 76mm Ball Bearing Turbocharger 1.15 A/R V-Band Inlet/Outlet 1100HP+ - GRT-TBO-979
Garrett GTX4202R 76mm Ball Bearing Turbocharger 1.15 A/R V-Band Inlet/Outlet 1100HP+ - GRT-TBO-979 - Image 4 Garrett GTX4202R 76mm Ball Bearing Turbocharger 1.15 A/R V-Band Inlet/Outlet 1100HP+ - GRT-TBO-979 - Image 2 Garrett GTX4202R 76mm Ball Bearing Turbocharger 1.15 A/R V-Band Inlet/Outlet 1100HP+ - GRT-TBO-979 - Image 3 Garrett GTX4202R 76mm Ball Bearing Turbocharger 1.15 A/R V-Band Inlet/Outlet 1100HP+ - GRT-TBO-979 - Image 4

If you're looking to seriously up your turbo game, the Garret GTX4202R is a beast you need to consider. This 76mm ball bearing turbocharger isn't just about the numbers—though it can support over 1,100HP, which is pretty wild. It’s designed for those who want to push the limits and really feel the power when they hit the gas.

The large frame and high-flow compressor housing are built to perform. It features a built-in ported shroud that helps combat surge, so you can keep that boost nice and steady. With a 5" inlet and a V-band outlet that measures 4.5" on the outer diameter and 3.5" on the tube, this turbo is ready to deliver some serious airflow. And trust me, you’ll notice the difference when you’re on the road or track.

Here are some specs that give you a better idea of what this turbo can do:

  • Compressor Wheel Inducer: 75.8mm
  • Compressor Wheel Exducer: 102.3mm
  • Compressor Wheel Trim: 55
  • Compressor Housing: 60 A/R, GT42R Frame, 5" Inlet, V-Band 4.5" OD (3.5" ID) Outlet
  • Turbine Wheel Inducer: 82mm
  • Turbine Wheel Exducer: 75.1mm
  • Turbine Wheel Trim: 84 trim
  • Turbine Housing: 1.15 A/R, V-Band Inlet, 4" V-Band Outlet

When it comes to installation, you’ll want to make sure you have the right fittings and flanges. For coolant, you’ll need two units of the 18mm coolant fitting and lines. The oil feed flange is a -4 AN with a built-in restrictor, and I recommend picking up the oil feed gasket to keep everything sealed up tight. Don’t forget about the oil drain flange and gasket too—those are critical for smooth operation.

Here’s a quick rundown of some essential components:

  • Oil feed flange: Product Code: ATP-FLA-040
  • Oil feed gasket: Product Code: GRT-GSK-011
  • Oil drain flange: Product Code: ATP-FLA-009
  • Oil drain gasket: Product Code: GRT-GSK-007
  • 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
  • 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031

And don’t forget about the compressor housing outlet flange and clamp set—check out Product Code: ATP-FLS-055 for that. If you’re working on the turbo manifold, the V-band inlet flange (Product Code: ATP-FLS-095) and clamp (Product Code: CLC-CLA-027) are must-haves. The same goes for the V-band outlet flange and clamp for your downpipe—Product Codes ATP-FLS-096 and CLC-CLA-028, respectively.

Just a heads up, if you need alternate coolant and oil fittings or flanges, there are options out there. The GRT-TBO-979 is another reference you might want to check out for the Garrett 76mm Ball Bearing with that 1.15 A/R V-Band turbine housing. This turbo is a solid choice for anyone serious about performance, and I can’t recommend it enough if you’re ready to take your ride to the next level.

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ATP Turbo Logo

What is ATP Turbo?

Advanced Tuning Products, Inc. (ATP Turbo) is a company that is solely dedicated to turbocharging. Its main goal is to engineer and manufacture quality turbocharging components that deliver a real difference in power gains. Currently located in Hayward, California, ATP Turbo offers an extensive lineup of innovative turbo components, all of which are backed by years of experience and a solid international reputation. The brand’s current lineup includes a wide range of blow-off valves, injectors, adapters, and several other turbo components that are engineered to bring about a significant boost in power.

Dedication to Quality and Reliability

While that act of turbocharging itself is not “new”, many of the parts ATP Turbo creates are born from “fresh” ideas that arise from applying the basic principles of process improvement and re-engineering to turbo systems. Following these philosophies has helped ATP Turbo design and re-design turbocharging components that are reliable, better functioning, and, oftentimes, more simplified than their stock counterparts. ATP products can be purchased as separate components or as a complete kit. For those taking on a larger tuning project, an ATP Turbo kit is certainly the better choice as it has everything you need to get the job done efficiently.

ATP Turbo’s processes rely on the latest equipment and tools to build only the best products in a timely fashion. All of its products are built using the latest high-precision equipment like 4-axis Haas CNC milling stations and lathes. With this, the company is able to switch from prototypes to high-speed production in very little time. What’s more, they are manufactured from high-quality materials to ensure superior durability for longevity and reliability.

ATP’s turbocharging components complement the best turbochargers offered by the aftermarket industry. Garrett Engine Boosting Systems is known for its unsurpassed performance and reliability. Garrett turbo units provide the solid foundation for ATP’s turbocharging applications.

Upgrade to ATP Turbo at Vivid Racing

If you are looking for the finest turbo equipment on the market, then you’ve come to the right place. ATP Turbo manufacturer top-of-the-line turbochargers and turbo components to improve upon the already impressive performance figures of vehicles like the Ford Focus ST, Ford Fiesta ST, Subaru WRX, Mitsubishi EVO, and Hyundai Genesis. ATP produces and tests all of its own products to ensure that each part offers the consumer optimal performance gains.

If you are ready to release the potential of your ride, call our parts specialist today at (480) 966-3040. We will get you equipped with ATP Turbo and make the purchase process a simple and pleasant one.
