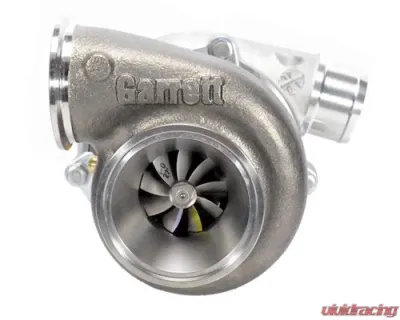

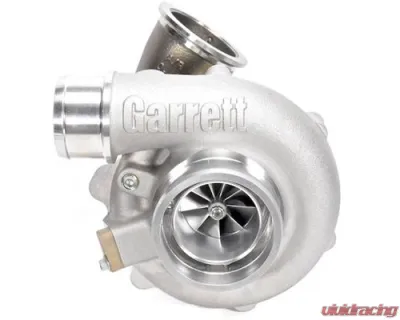

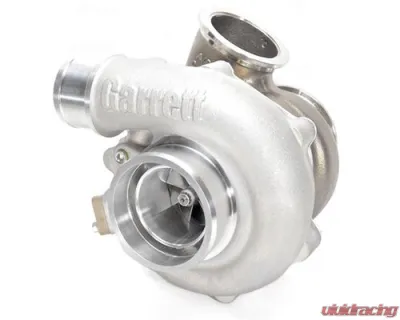

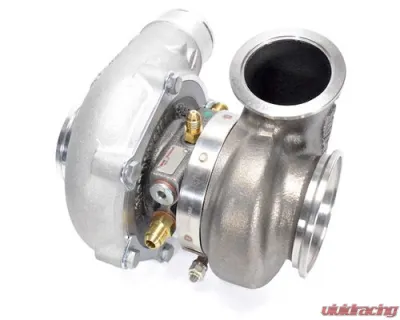

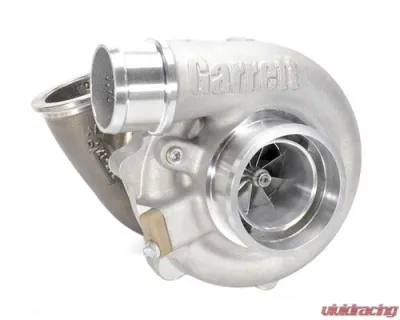

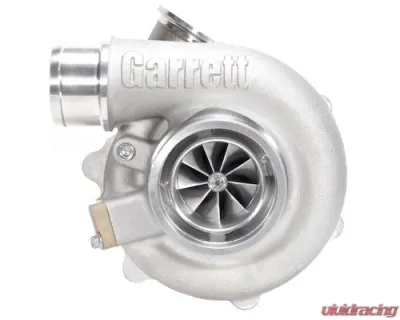

Garrett Turbo G25-550 Reverse Rotation Turbocharger with .72 A/R V-Band Housing
$2473.53
Free Shipping

Garrett G-Series G25-550 Turbocharger

If you're looking to add some serious power to your build without going overboard on size, the Garrett G25-550 is where it's at. This little beast is designed for those who want to push their ride to the next level—550 horsepower from a compact package? Yeah, it’s the real deal.

Why This Turbo?

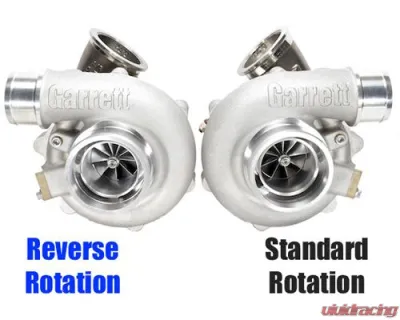

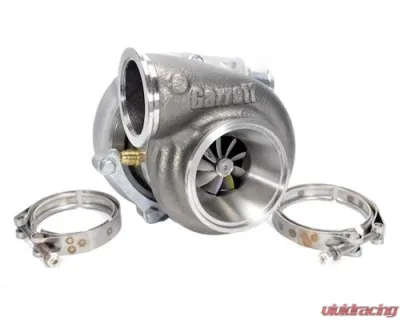

First off, let’s talk about the reverse rotation feature. It’s a game changer for certain setups, especially if you’re tight on space or just want to keep things neat under the hood. The turbo comes with a stainless steel V-Band inlet and outlet, so you can ditch those heavy flanges and enjoy a cleaner install.

What’s Inside?

  • Ultra High Flow G-Series Compressor Wheel: This thing is built for performance, moving air like nobody's business.
  • Evolutionary Aero G-Series Turbine Wheel: Made from Mar-M Alloy, it can handle up to 1050°C, so you know it’s tough enough for the heat of battle.

Specs That Matter

Here’s the nitty-gritty:

  • Compressor Wheel Inducer: 48mm
  • Compressor Wheel Exducer: 60mm
  • Compressor Wheel Trim: 65
  • Compressor Housing Inlet: 3 Inch Diameter
  • Compressor Housing Outlet: 2 Inch Diameter
  • Compressor Housing A/R: .70
  • Turbine Wheel Inducer: 54mm
  • Turbine Wheel Exducer: 49mm
  • Turbine Wheel Trim: 84
  • Turbine Housing Inlet: 3 Inch O.D. V-Band
  • Turbine Housing Outlet: 3.55 Inch O.D. V-Band

Installation Made Easy

Worried about how to get this bad boy installed? Don’t sweat it. It comes with everything you need:

  • Inlet V-Band Flange (For Turbo Manifold): ATP-FLS-350
  • Out V-Band Flange (For Down-pipe): ATP-FLS-351
  • Oil drain flange: ATP-FLA-010
  • Oil drain gasket: GRT-GSK-008
  • Oil drain fasteners: MIA-FST-034
  • Boost Pressure Port Fitting: ATP-FTG-198
  • Speed Sensor Kit: ATP-ACS-032

So, if you're set on boosting your ride with something that packs a punch without taking up half your engine bay, the Garrett G25-550 is worth checking out. It’s got the power, the durability, and the ease of installation that makes it a solid choice for enthusiasts who know what they want.

Proposition 65

WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

ATP Turbo Logo

What is ATP Turbo?

Advanced Tuning Products, Inc. (ATP Turbo) is a company that is solely dedicated to turbocharging. Its main goal is to engineer and manufacture quality turbocharging components that deliver a real difference in power gains. Currently located in Hayward, California, ATP Turbo offers an extensive lineup of innovative turbo components, all of which are backed by years of experience and a solid international reputation. The brand’s current lineup includes a wide range of blow-off valves, injectors, adapters, and several other turbo components that are engineered to bring about a significant boost in power.

Dedication to Quality and Reliability

While that act of turbocharging itself is not “new”, many of the parts ATP Turbo creates are born from “fresh” ideas that arise from applying the basic principles of process improvement and re-engineering to turbo systems. Following these philosophies has helped ATP Turbo design and re-design turbocharging components that are reliable, better functioning, and, oftentimes, more simplified than their stock counterparts. ATP products can be purchased as separate components or as a complete kit. For those taking on a larger tuning project, an ATP Turbo kit is certainly the better choice as it has everything you need to get the job done efficiently.

ATP Turbo’s processes rely on the latest equipment and tools to build only the best products in a timely fashion. All of its products are built using the latest high-precision equipment like 4-axis Haas CNC milling stations and lathes. With this, the company is able to switch from prototypes to high-speed production in very little time. What’s more, they are manufactured from high-quality materials to ensure superior durability for longevity and reliability.

ATP’s turbocharging components complement the best turbochargers offered by the aftermarket industry. Garrett Engine Boosting Systems is known for its unsurpassed performance and reliability. Garrett turbo units provide the solid foundation for ATP’s turbocharging applications.

Upgrade to ATP Turbo at Vivid Racing

If you are looking for the finest turbo equipment on the market, then you’ve come to the right place. ATP Turbo manufacturer top-of-the-line turbochargers and turbo components to improve upon the already impressive performance figures of vehicles like the Ford Focus ST, Ford Fiesta ST, Subaru WRX, Mitsubishi EVO, and Hyundai Genesis. ATP produces and tests all of its own products to ensure that each part offers the consumer optimal performance gains.

If you are ready to release the potential of your ride, call our parts specialist today at (480) 966-3040. We will get you equipped with ATP Turbo and make the purchase process a simple and pleasant one.
