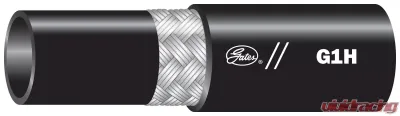

Gates Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT - 85935

Global G1H 1-Wire Braid Hose - High-Temperature Hydraulic Solution

The Global G1H hose is specifically designed for high-temperature, medium-pressure hydraulic oil line applications. This versatile hose is compatible with a wide range of fluids, including biodegradable hydraulic fluids such as polyolester, polyglycols, and vegetable oils, along with traditional petroleum-based fluids and phosphate esters. Whether you're working in industrial or agricultural settings, this hose is built to meet your needs.

Key Features

  • Type: Global G1H 1-Wire Braid Hose - High-Temp - SAE 100R1 Type AT
  • Industrial Description: 20G1HX50FT
  • Hose Pressure: Medium Pressure
  • Maximum Working Pressure: 925 psi
  • Minimum Burst Pressure: 3700 psi
  • Temperature Range: -40°F to +275°F (-40°C to +135°C)
  • Length: 50 ft
  • Dash Size: 20
  • Hose Inside Diameter: 1.25 inches
  • Hose Outside Diameter: 1.71 inches
  • Minimum Bend Radius: 16 inches
  • Tube Material: Nitrile - Type C, Black, Oil-Resistant, Synthetic Rubber
  • Reinforcement: One Braid of High-Tensile Steel Wire
  • Cover Material: Synthetic Rubber - CSM - Type M
  • Cover Type: Type M - Flame, Oil & Abrasion Resistant
  • Cover Color: Black
  • Coupling Recommendations: Compatible with GlobalSpiral, MegaCrimp, and Stainless Steel Braided Couplings
  • SAE Specification: 100R1
  • EN Specification: 854 1SN
  • ISO Specification: 1437 1SN R1

Benefits

This hose provides a tighter bend radius compared to standard hoses, offering greater flexibility for easier plumbing routing. It meets the Flame Resistance Acceptance Designation MSHA 2G, ensuring safety in high-risk environments. With its robust construction and compatibility with various coupling types, the Global G1H hose is a reliable choice for your hydraulic applications.

Fitment

The Global G1H hose is designed for seamless integration with the following coupling series:

  • GlobalSpiral Couplings [G20 Series]
  • GlobalSpiral Plus Couplings [G22 Series]
  • MegaCrimp Couplings [G25 Series]
  • Stainless Steel Braid Couplings [G17 Series]

Choose the Global G1H hose for a high-performance, durable solution that meets your hydraulic needs.

Other Part Numbers:
Gates #GATES-85935
