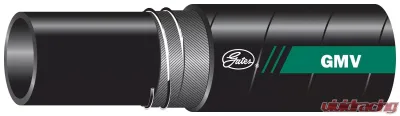

Gates GMV Global MegaVac Return Line & Suction Hose - 70186
Gates GMV Global MegaVac Return Line & Suction Hose - 70186 - Image 2 Gates GMV Global MegaVac Return Line & Suction Hose - 70186 - Image 2

GMV Return Line and Suction Hose

The GMV Return Line and Suction Hose is your go-to solution for handling petroleum and water-based hydraulic fluids. Designed specifically for use in suction lines and low-pressure return lines, this hose combines durability and performance to meet your hydraulic needs.

Key Features

  • Product Type: GMV Global MegaVac Return Line & Suction Hose
  • Industrial Description: 20GMVXCTN
  • Type: Hydraulic Hose
  • Hose Pressure Description: Low Pressure
  • Maximum Working Pressure: 250 psi
  • Minimum Burst Pressure: 1000 psi
  • Temperature Range: -40°F to +275°F (-40°C to +135°C)
  • Length: 100 ft
  • Dash Size: 20
  • Hose Inside Diameter: 1.25 in
  • Hose Outside Diameter: 1.76 in
  • Minimum Bend Radius: 4 in
  • Vacuum: 25 inHg
  • Tube Description: Black, Synthetic Rubber
  • Tube Material: Nitrile - Type C
  • Reinforcement: Double Spiral Braid with Helical Spiral-Wire
  • Cover Material: Synthetic Rubber - Neoprene - Type A
  • Cover Type: Type A - Flame, Oil & Abrasion Resistant
  • Cover Color: Black
  • Coupling Recommendation: GL, MegaCrimp
  • SAE Specification: 100R4
  • EN Specification: N/A
  • ISO Specification: N/A

Specifications and Compliance

This hose meets or exceeds the stringent requirements of SAE 100R4 and is designed to operate efficiently with half the bend radius of standard SAE 100R4 hoses. It is compliant with marine ABS and DNV-GL standards when used with the HeatGuard high-temperature sleeve, making it suitable for a variety of demanding environments. The hose also meets AS and USCG agency specifications, ensuring safety and reliability.

Durability and Performance

Thanks to its helical spiral-wire reinforcement, the GMV Return Line and Suction Hose is built to resist collapse under suction, providing consistent performance even in challenging conditions. The cover is designed to withstand flame, oil, and abrasion, ensuring longevity and dependability in the field.

Applications

This versatile hose is ideal for various applications, including hydraulic systems that require reliable fluid transfer. Whether you're in a marine setting or working with industrial machinery, this hose is engineered to meet your needs.

Installation Recommendations

For optimal performance, use this hose with GL Couplings (G43 Series) and MegaCrimp Couplings (G25 Series). Make sure to secure the connections with clamps over the beaded nipple for a tight fit.

Other Part Numbers:
Gates #GATES-70186
