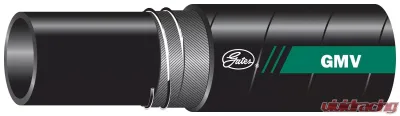

Gates GMV Global MegaVac Return Line & Suction Hose - 85578
Gates GMV Global MegaVac Return Line & Suction Hose - 85578 - Image 2 Gates GMV Global MegaVac Return Line & Suction Hose - 85578 - Image 2

GMV Global MegaVac Return Line & Suction Hose (16GMVX25FT)

The GMV Return Line and Suction Hose is designed to effectively handle petroleum and water-based hydraulic fluids, making it an ideal choice for suction lines and low-pressure return lines. With its robust construction and versatile compatibility, this hose is perfect for various industrial applications.

Key Features

  • Type: Hydraulic Hose
  • Length: 25 feet
  • Dash Size: 16
  • Inside Diameter: 1 inch
  • Outside Diameter: 1.45 inches
  • Minimum Bend Radius: 3 inches
  • Vacuum Rating: 25 inHg
  • Maximum Working Pressure: 300 psi
  • Minimum Burst Pressure: 1200 psi
  • Temperature Range: -40°F to +275°F (-40°C to +135°C)

Durable Construction

This hose features a helical spiral-wire reinforcement that prevents collapse under suction, ensuring reliable performance. It meets or exceeds the stringent requirements of SAE 100R4, and with its half the bend radius compared to traditional SAE 100R4 hoses, it offers superior flexibility in tight spaces.

Compliance & Safety

The GMV Return Line and Suction Hose is compliant with marine ABS and DNV-GL standards when used with the HeatGuard high-temperature sleeve. It also meets AS and USCG agency specifications, along with the Flame Resistance Acceptance Designation MSHA 2G, providing peace of mind for safety in demanding environments.

Material Specifications

  • Tube Material: Nitrile - Type C (Black, Synthetic Rubber)
  • Reinforcement: Double Spiral Braid with Helical Spiral-Wire
  • Cover Material: Synthetic Rubber - Neoprene - Type A
  • Cover Type: Type A - Flame, Oil & Abrasion Resistant
  • Cover Color: Black

Coupling Recommendations

For optimal performance, this hose is compatible with GL Couplings (G43 Series) and MegaCrimp Couplings (G25 Series). Ensure secure connections by using clamps over the beaded nipple.

Applications

Designed for versatility, the GMV Return Line and Suction Hose is perfect for various applications requiring low-pressure hydraulic fluid transfer, making it an essential component for your hydraulic systems.

Other Part Numbers:
Gates #GATES-85578

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Gates Banner

Who is Gates?

Gates is a manufacturing company that specializes in creating application-specific fluid power and power transmission solutions. Their aim is to push the boundaries and engineer products that would meet their customer’s expectations. Today, they are one of the leading brands in their industry segment and have been trusted by millions of users worldwide.

Search for Perfection

The company has continuously invested itself in its research and development to create products that surpass industry standards. By using real-world experiences, they are able to create innovative products that are superior compared to their competitors.

World-Renowned Brand

Gates has expanded itself by offering more products from its catalogs. They are best known for their engine belts that are designed to fit most vehicles available in the market. Due to their product’s high quality, it has become the brand of choice of professional mechanics and tuners around the globe. They have facilities located at over 120 locations in 30 different countries enabling them to accommodate the increasing demands of their clients.

Purchase Gates Products at Vivid Racing

If you want quality parts for your vehicle, then Gates is the right brand for you. With over 100 years in the business, they are able to establish a reputation as a leading manufacturer with a strong sense of personal responsibility and are fully dedicated to providing its customers with the best product. To know more about Gates, visit Vivid Racing and check out their list of products that fit your specific requirement.






Limited Warranty

Goods are warranted to be free from defects in material or workmanship for the life of the Goods (or the published recommended replacement interval specified by Gates). Gates will replace or repair, at its option, any Goods proved defective in material or workmanship during the warranty period. This is the sole remedy for breach of warranty. Color fade and color difference is not warranted. This warranty is void if the defect is caused by improper installation, use or maintenance of the Goods, or used for racing or competition. Goods are not warranted to comply with laws that may apply to uses of the Goods not stated in related materials, e.g., use in manned or unmanned aviation or life support applications. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. FAILURE TO REPLACE TIMING BELTS OR OTHER GATES PRODUCTS AS SPECIFIED MAY RESULT IN CATASTROPHIC ENGINE OR EQUIPMENT DAMAGE, FOR WHICH GATES DISCLAIMS ALL RESPONSIBILITY, TO THE EXTENT PERMITTED BY APPLICABLE LAW.

Some states do not allow the exclusion or limitation of incidental or consequential damages, and some states do not allow limitations on how long an implied warranty lasts, so the above limitation and exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
