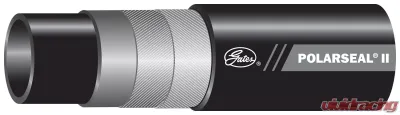

Gates PolarSeal II Hose - 85387

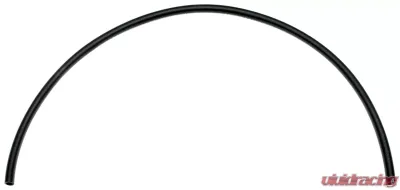

Gates PolarSeal II Hose - 85387 - Image 2 Gates PolarSeal II Hose - 85387 - Image 2

Gates PolarSeal II Hose - 12ACC-PSIIX50FT

If you’re looking for a reliable solution for your automotive and heavy-duty truck air conditioning systems, the Gates PolarSeal II Hose is your go-to choice. Designed to significantly reduce permeation and moisture ingress, this hose is recommended for use with various refrigerant blends and compressor lubricants.

Key Features

  • Product Type: PolarSeal II Hose
  • Industrial Description: 12ACC-PSIIX50FT
  • Type: Fleet Application & Maintenance Hose
  • Hose Pressure Description: Medium Pressure
  • Maximum Working Pressure: 350 psi
  • Minimum Burst Pressure: 1400 psi
  • Temperature Range: -40°F to +275°F (-40°C to +135°C)
  • Length: 50 ft
  • Dash Size: 12
  • Hose Inside Diameter: 0.625 in
  • Hose Outside Diameter: 0.96 in
  • Minimum Bend Radius: 3 in
  • Tube Description: Black, Synthetic Elastomeric Rubber
  • Reinforcement: Fabric Braid
  • Cover Material: Synthetic Elastomeric Rubber
  • Cover Type: Heat, Moisture & Ozone Resistant
  • Cover Color: Black
  • Barrier: Nylon Liner
  • Coupling Recommendation: PolarSeal II Couplings
  • SAE Specification: J3062

Compatibility

The PolarSeal II Hose is compatible with R134a, R12, and the new R1234yf refrigerants, making it a versatile choice for various applications.

Why Choose Gates PolarSeal II?

With its low-permeation construction, the PolarSeal II is trusted by more OEMs worldwide than any other refrigerant hose. Its proprietary polyamide barrier and superior compounding ensure excellent performance in demanding conditions.

Temperature Range

This hose operates effectively within a temperature range of 22°F to +257°F (30°C to +125°C), making it suitable for a wide range of environments.

Recommended Couplings

For optimal performance, it is recommended to use PolarSeal II Couplings with this hose.

Other Part Numbers:
Gates #GATES-85387
