Introducing Holley's renowned cast aluminum oil pan (P/N 302-4 and 302-4BK), specifically crafted for swapping LS engines into K10s and various other trucks. This isn’t just any oil pan; it’s been enhanced to provide the ultimate protection for vehicles that face the rigors of climbing, crawling, braking, turning, and accelerating. When you’re out there pushing your vehicle to its limits, you want to ensure that oil starvation is a thing of the past. That’s where the 302-33 oil pan baffle kit steps in.

This baffle kit is a significant upgrade from the standard baffle included with our oil pans. Designed to keep the oil level steady at the oil pump pick-up during all sorts of maneuvers—whether you're tackling steep inclines, making sharp turns, or hitting the brakes hard—this baffle ensures your engine maintains its oil pressure. Say goodbye to worries about losing oil pressure during those thrilling off-road adventures or intense accelerations!

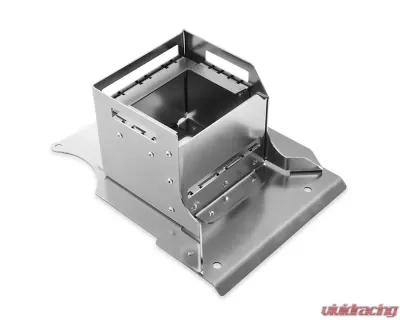

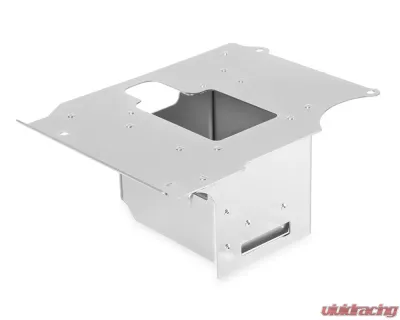

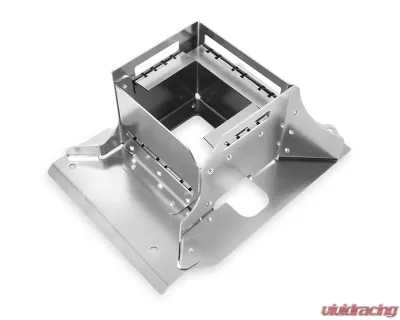

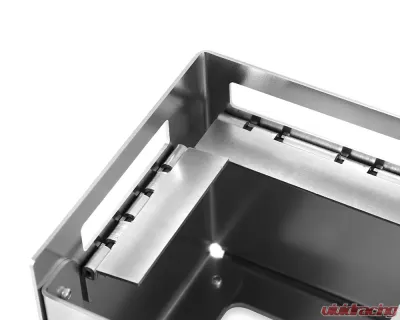

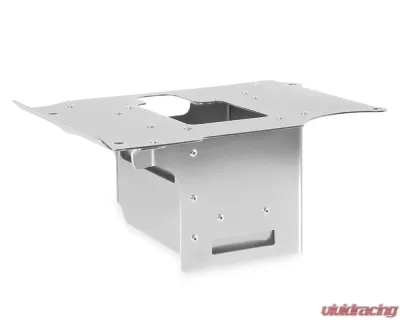

Constructed from durable sheet aluminum with precision TIG welded joints, the baffle features strategically placed one-way trap doors that allow oil to flow toward the oil pump pick-up but prevent it from flowing back. This baffle is a perfect fit for the Holley P/N 302-4 and 302-4BK LS Swap oil pan, serving as a drop-in replacement for the standard tray baffle.

Features:

• Direct bolt-in compatibility with 302-4 and 302-4BK Holley LS Swap Off-Road Oil Pan
• Robust aluminum sheet construction with TIG welded joints
• Vertical baffles equipped with one-way trap doors surrounding the oil pump pick-up
• Ideal for street, racing, and off-road applications

Specifications:

• Emission Code: 5
• Material: Aluminum
• Product Type: Oil Pan Accessories
• Warranty: Limited 90 Day
• UPC: 090127476338

Installation Instructions:

• For detailed instructions, CLICK HERE

Fitment:

• Chevrolet K10 LS Swap 1975-1986
• Chevrolet K10 Pickup LS Swap 1973-1974
• Chevrolet K10 Suburban LS Swap 1973-1986
• Chevrolet K20 LS Swap 1975-1986
• Chevrolet K20 Pickup LS Swap 1973-1974
• Chevrolet K20 Suburban LS Swap 1973-1986
• Chevrolet K30 LS Swap 1977-1986
• Chevrolet K30 Pickup LS Swap 1973-1974
• Chevrolet K5 Blazer LS Swap 1975-1986
• Chevrolet V10 LS Swap 1987
• Chevrolet V10 Suburban LS Swap 1987
• Chevrolet V20 LS Swap 1987
• Chevrolet V20 Suburban LS Swap 1987
• Chevrolet V30 LS Swap 1987
• GMC Jimmy LS Swap 1973-1987
• GMC K15 LS Swap 1975-1978
• GMC K15 Suburban LS Swap 1975-1978
• GMC K15/K1500 Pickup LS Swap 1973-1974
• GMC K15/K1500 Suburban LS Swap 1973-1974
• GMC K25 LS Swap 1975-1978
• GMC K25 Suburban LS Swap 1975-1978
• GMC K25/K2500 Pickup LS Swap 1973-1974
• GMC K25/K2500 Suburban LS Swap 1973-1974
• GMC K35 LS Swap 1977-1978
• GMC K35/K3500 Pickup LS Swap 1973-1974
• GMC V1500 Suburban LS Swap 1987
• GMC V2500 Suburban LS Swap 1987
• GMC V3500 LS Swap 1987

Emissions: 5 - This part is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles since it does not impact vehicle emissions and is exempt from emissions regulations.
