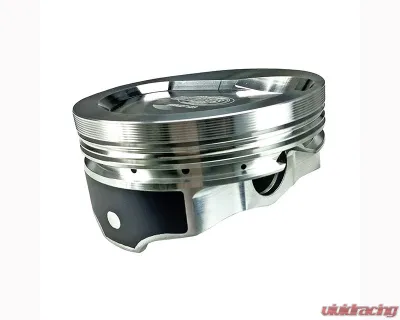

Howards Cams Inverted Dome Pro Max 2618 Forged Race Pistons Chevrolet Big Block V8 Mark IV - 856027123-1

Howards Cams Inverted Dome Pro Max 2618 Forged Race Pistons

Looking to boost your Chevrolet Big Block V8 Mark IV’s performance? The Howards Cams Inverted Dome Pro Max 2618 Forged Race Pistons are crafted to deliver exceptional strength and reliability on the racetrack. These pistons are designed for serious racers who demand nothing but the best from their engines.

Performance-Driven Design

The secret to the Pro Max pistons lies in their forging process. Made from high-quality 2618-T61 billet aluminum, these pistons are not just any ordinary components. They undergo heat treatment and aging, resulting in a robust design that withstands extreme stress. Unlike standard pistons, which may contain up to 1% silicon, the Pro Max pistons feature minimal silicon content, ensuring they maintain their shape under high RPMs and pressure.

Key Features

  • Forged from 2618-T61 Billet Aluminum Bar Stock: Ensures durability and performance.
  • Oversized Valve Pockets: Accommodate large cam profiles and oversized valves.
  • Accumulator Grooves: Improve ring seal for better compression.
  • Machined Oil Drain Back Holes: Enhance lubrication efficiency.
  • Lightweight Aircraft Quality Wrist Pins: Included for added performance.
  • Lock Removal Indents: Simplify assembly and maintenance.
  • CNC Turned Skirts: Reduce scuffing and wear on cylinder walls.
  • Radius Valve Reliefs: Eliminate sharp edges and hot spots.
  • Ring Groove Sizes: 1/16", 1/16", 3/16" for optimal sealing.
  • Forced Pin Oilers: Ensure consistent lubrication.
  • Double Spirolox: Secure wrist pins effectively.

Specifications

  • Part Type: Pistons
  • Model: ProMax 2618 Forged Race Pistons
  • Application: Chevrolet Big Block V8
  • Piston Style: Inverted Dome (Dish)
  • Cylinder Bore: 4.600"
  • Compression Distance: 1.270"
  • Crankshaft Stroke/Rod Length: 4.250" with 6.385" Connecting Rod (565ci)
  • Deck Height (Zero Deck): 9.780"
  • Dome Volume: -23cc
  • Compression Ratio: 8.5 with 119cc Heads
  • Piston Material: Forged 2618-T6 Aluminum
  • Wrist Pin Style: Press-Fit or Floating
  • Wrist Pin Size: .990 x 2.750"
  • Manufacturer: Howards Cams & Racing Components
  • Warranty: Race Application. No warranty expressed or implied.

Popular Fitments

The Howards Cams Pro Max 2618 pistons are compatible with several popular Chevrolet Big Block V8 applications, including:

  • Chevrolet 454 V8
  • Chevrolet 502 V8
  • Chevrolet 572 V8

Customer Feedback

Users rave about the performance and reliability of the Howards Cams Pro Max pistons. Here’s what some have said:

"These pistons held up under extreme racing conditions. The power increase was noticeable!"

- Racing Enthusiast

"Installation was a breeze, and they fit perfectly in my 454. Highly recommend!"

- Satisfied Customer

Upgrade your racing setup with the Howards Cams Inverted Dome Pro Max 2618 Forged Race Pistons and experience the difference in performance and reliability!

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Howards Cams Banner

Who is Howards Cams?

Howards Cams is an aftermarket company that Howards Johansen founded in 1945. It started as Howards Power & Racing Equipment and specialized in manufacturing high-performance racing cams for the automotive market. Even after turning the business over their oldest son, the company remained one of the best cam manufacturers in the industry.

Maximizing Their Racing Experience

The company has always used it is on-track experience to create powerful cam profile designs. It is why they have become one of the favorite brands of many top fuel dragster racers and drivers from other racing disciplines such as road racing, mudd bogging, marine racing, and circle track racing.

Advanced Manufacturing Technique

Howards Cams uses the most advanced computer design software to create the most competitive product out there. They offer a wide range of performance parts from camshafts, connecting rods, crankshafts, billet main caps, and forged pistons. All of these are made in the USA to ensure consistent quality.

Purchase Howards Cams Products At Vivid Racing

If you are in the market for high-performance parts for your engine, then look no further as Howard Cams is the brand for you. They have all the parts you need to create a fast machine and is trusted by many racers and enthusiast worldwide. If being on the top podium is your dream, then upgrade your engine with Howard Cams parts.

To know more about the company, visit Vivid Racing and check out their list of products that fit your specific needs.

Warranty: Howards Cams Hydraulic/Mechanical Flat Tappet Camshafts are 100% Rockwell checked and parkerized at our manufacturing plantin Wisconsin. Howards Cams hydraulic and mechanical lifters are also 100% Rockwell checked for hardness to ensure that our customers receive the best American made components available. To give our customers a performance edge, Howards Cams will unconditionally replace to the original purchaser only, any non-usable hydraulic or mechanical flat tappet camshafts and lifters for 1/2 the amount of the original invoiced purchase price for a period of 6 months from the date of original retail purchase. Howards™ Cams does not warrant the performance of our products due to Howards™ Cams lack of control during product installation and usage. This applies to all camshafts, valve train components and all other racing components in our catalog and product line. Note: Due to oil available today, all Flat Tappet Cams (hydraulic or mechanical) must be initially ran with a quality break-in lube, such as Howards Z.P.M. Max. There is absolutely no warranty, expressed or implied or otherwise, on Howards Cams parts, labor, installation charges or other damaged parts. Howards Cams assumes no responsibility or liability whatsoever on incidental or consequential damages. There are no implied warranties of merchantability or fitness for a particular purpose. Howards Cams neither assumes nor authorizes any person to assume for it, any other obligation or liability in connection with the sale or use of our products. Howards Cams will replace or refund any part that has a manufacturers defect found before installation or alteration. Customers are responsible for blueprinting engine components before installation or startup.
