Product Specifications:

• Mounting hardware and instructions for installation are included.
• Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration (regardless of tire size, gear ratio, or transmission) and 0-60 time, 1/4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
• Tachometer features a custom-designed LED bargraph gauge. The unit is microprocessor controlled with peak rpm memory recall, with automatic night dimming and RPM activated Switch that can handle 3 amps. It has a 0-9,999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines.
• Water Temperature display with 50 - 250°F range with sender S8013 included. Please specify bushing size for sender as we normally send a 1/2 inch one, but we can send a 3/8 inch one instead upon request. Please just add a note at check-out; otherwise, you will have to get the correct bushing on your own.
• Oil Pressure display with 0-100 PSI range (Oil pressure sender included).
• Voltmeter display with 7.0-18.0 volts range (no sending unit required).
• Fuel Level is programable to 4 different ohms ranges. 73-10 ohm, 0- 90 ohm, 10 - 180 ohm, 240 - 33 ohm.
• BEZEL NOT INCLUDED

Product Features:

• AVAILABLE COLORS: White, Red, Blue, Teal, and Green
• SPEEDOMETER READING: Order your speedometer in either MPH or KPH
• ACCESSORIES: All required sending and sensor units are included

Fitment:

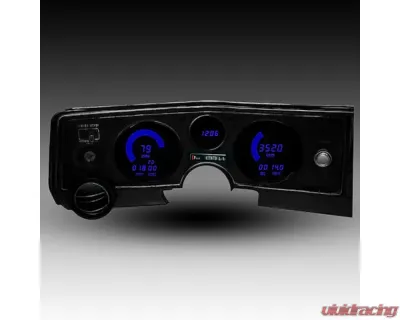

• Chevrolet Chevelle 1969

Note:

• If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, your LS engine has a Tach output equivalent to a 4 cylinder instead of 8, please send a note to us letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
• The panel kit comes with a Lifetime Guarantee and is made in the USA!
• If you're not 100% completely satisfied, then just arrange to send it back within the return period
• ORDER LED Digital and Bargraph SPEEDOMETER & TEMPERATURE in your choice of MPH and FAHRENHEIT or KPH and CELSIUS
• Make a note in the Product options if you want KPH and Celsius, otherwise, the Speedometer and Temperature gauges come as MPH and Fahrenheit.
