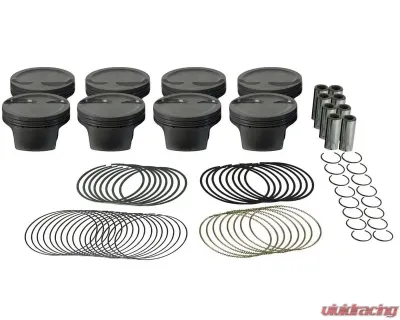

Mahle MS Piston Set GM L92/LS3 370ci 4.030in Bore 3.622in Stk 6.125in Rod .927 Pin -12cc 9.2 CR - 930224530

Mahle MS Piston Set for GM L92/LS3 - Part Number 930224530

Looking to boost your engine's performance? The Mahle MS Piston Set is expertly crafted for GM L92 and LS3 engines, delivering reliability and precision. With a bore of 4.030 inches and a stroke of 3.622 inches, this piston set is designed to fit seamlessly into your engine, ensuring optimal performance.

Key Features

  • Part Type: Pistons
  • Product Line: Mahle PowerPak Piston and Ring Kits
  • Piston Rings Included: Yes
  • Bore: 4.030 in. (102.362 mm)
  • Stroke: 3.622 in.
  • Rod Length: 6.125 in.
  • Piston Style: Dish with D-shaped cup
  • Piston Material: Forged aluminum
  • Compression Height: 1.314 in.
  • Piston Head Volume: +12.00 cc
  • Wrist Pin Style: Press-fit or floating
  • Wrist Pin Retainers Included: Yes
  • Wrist Pin Included: Yes
  • Pin Diameter: 0.927 in.
  • File Fit: Yes
  • Gapless: No
  • Top Ring Thickness: 1.0 mm
  • Top Ring Material: Ductile iron
  • Top Ring Facing Material: Plasma-moly
  • Second Ring Thickness: 1.0 mm
  • Second Ring Material: Cast iron
  • Second Ring Facing Material: Cast iron
  • Oil Ring Thickness: 2.0 mm
  • Oil Ring Material: Stainless steel
  • Oil Ring Tension: Standard
  • Quantity: Sold as a kit

Specifications

This piston set is engineered with precision to ensure a perfect fit and optimal performance. The forged aluminum construction provides strength and durability, while the carefully designed piston head volume contributes to an impressive compression ratio of 9.2:1. Ideal for both street and performance applications, this kit is a must-have for any serious engine builder.

User Reviews

Users have praised the Mahle MS Piston Set for its exceptional quality and performance. Many have noted improvements in throttle response and overall engine efficiency. One user mentioned, "The installation was straightforward, and I've noticed a significant boost in power on the track!" Another added, "These pistons fit perfectly and have held up under high-stress conditions." Join the ranks of satisfied customers and elevate your engine's capabilities with this top-tier piston set.

Other Part Numbers:
Mahle #mhl930224530
