Fog Lights:

The Morimoto 4Banger NCS Wide Beam is designed to comply with the latest SAE F3 regulation for a street legal fog light. The Morimoto 4Banger HXB Wide Beam sets a new industry benchmark for intensity. But what's better than producing the best beam patterns for use as a fog light? The best fog-light specific mounting brackets for your Dodge Ram, of course. Engineered Solution: Thanks to the smaller than usual footprint of the 4Banger, we now have a powerful fog light upgrade that fits properly and looks right. Other adapter kits for more traditionally-sized LED pods stick out like a sore thumb. Not here. Morimoto engineers spent hundreds of hours hands-on in the garage during development of the 4Banger brackets alone. Repeated rounds of design, prototyping, and test fitting have spawned the most refined set of fog light brackets that a Ram owner could ask for.

Easy Setup:

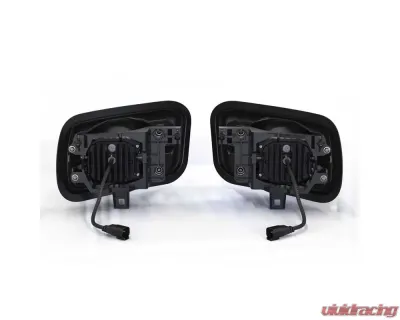

Everything is designed to bolt-on and plug-n-play. No modifications are required to your vehicle or its wiring to install the 4Banger off-road lights in your fogs. Each kit includes all of the necessary hardware and high-quality wiring adapters to connect with your factory fog light harness. Note, your vehicle must have stock fog lights.

Fully Adjustable:

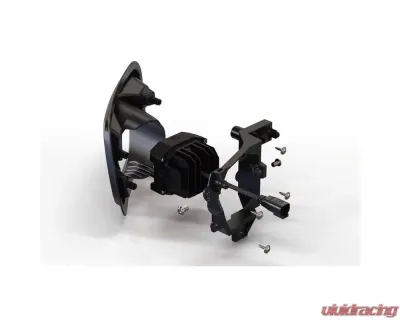

These things are powerful, and while their wide beam pattern is perfect for use as a fog light, power is nothing without control. All brackets have +/- 6 degrees of vertical adjustability so that you can dial in the aim and ensure every ounce of intensity ends up on the road ahead, not in the eyes of oncoming traffic.

Air Cooled:
As if the style, the fitment, the adjustability aren't enough -- we have incorporated duct work into each bracket to actively cool the LED pods. This improves lumen maintenance by eliminating heat-soak, which is common in other LED Pod fog light kits that have no ventilation for the heat sink.

All Weather:

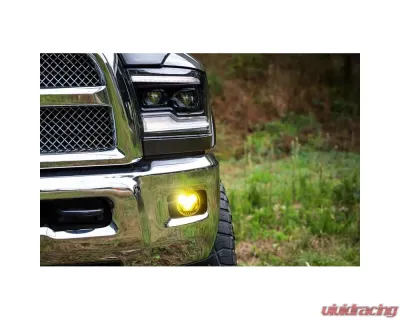

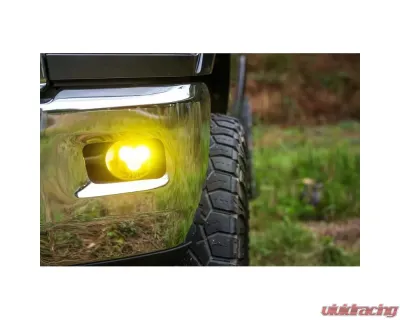

The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog -- the Yellow-output version will slay in sour weather. For HXB Spot and Combo models, Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather).

Street Legality:
With a standard -4° aim, the beam pattern produced by both the NCS and HXB Wide Beam models has been verified compliant with the latest SAE F regulation for use as a street-legal fog light. You can view those test reports in the Compatibility section below.

View Installation Instructions

Specifications:

• Intensity: 78,000 Cd (Post Warm-Up) (780lux @ 10m)
• Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
• Input Voltage: 9-18V DC
• Power: 42w
• Current: 3.3A @ 13.V DC
• Dimensions: 82mm W, 67mm H, 60mm D

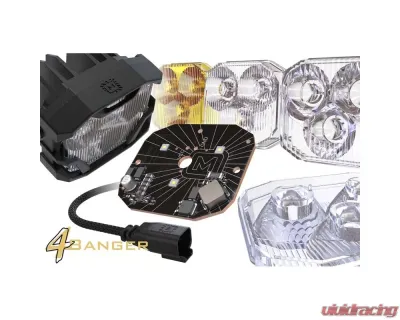

• Light Source: 3x Osram HX Boost (5700K)

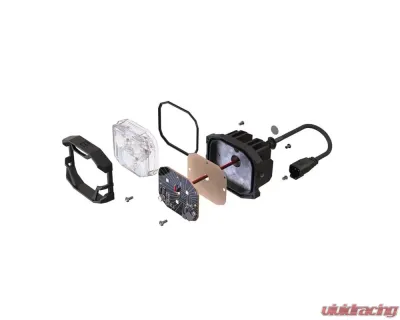

• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

What's Included:

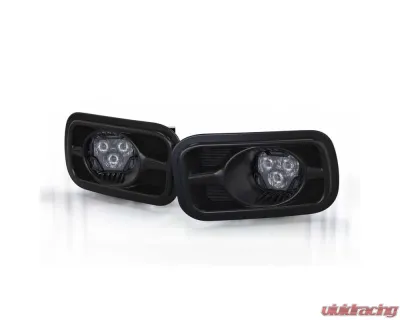

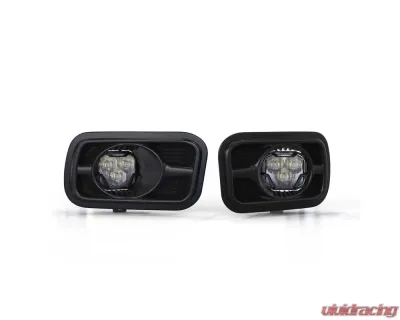

• Fog Light Brackets: 2x (One Pair) Morimoto 4Banger (BAF017 / Ram Horizontal)
• LED Pods: 2x (One Pair) Morimoto 4Banger (HXB White Combo Beam - BAF009)
• Hardware: Complete Pack (Stainless Steel)
• Wiring: Plug N Play Connection Kit

Fitment:

• Dodge Ram 1500: 2009-2012

Notes:

• REPLACES MOPAR PART #: 55372735AB, 55372734AB, 55372735AA, 55372734AA
• Note: Vehicle must have OEM Halogen Fog lights
• 4Banger COMPLIANCE: Wide beam photometrics are SAE F 20 compliant
