Off-Road Reinvented

Since 2008, Morimoto has been dedicated to crafting top-notch lighting upgrades for the automotive aftermarket. We?re all about delivering products that excel in performance, reliability, and style. As a fresh face in the off-road scene, we?ve embraced this philosophy wholeheartedly, fueled by excitement and innovation. Introducing our brand-new, patent-pending line of 4Banger NCS Off-Road LED lights, designed, engineered, and tested right here in the USA. Trust us, these lights are truly next level!

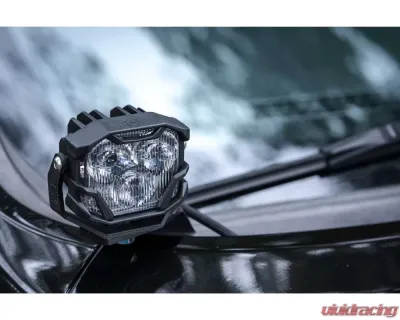

NCS Spot Beam

Need to see far ahead? The NCS Spot is your go-to! It features a highly focused 5-degree hot spot surrounded by a 14H x 4C degree flood beam, making it perfect for long-range visibility. While it may not pack quite the punch as the 4Banger HXB Spot (which uses Osram LEDs), pairing it with a set of NCS Combos will ensure you can spot deer from a distance without any issues.

Form Meets Function

The 4Banger NCS boasts a footprint that's about 30% smaller than other options that offer similar performance. This means you get an unbeatable OEM+ fit when paired with Morimoto's fog light or A-Pillar mounting kits, designed for today?s most popular trucks. You won?t be that person with LED pods awkwardly sticking out of your bumper!

Performance

No generic parts here! Every component of the 4Banger NCS is proprietary. We utilized LucidShape to optimize performance around the latest, lumen-dense LEDs from Nichia, and SolidWorks helped us fine-tune thermal dynamics. Plus, the 4Banger NCS comes with three industry-leading beam patterns: Wide/Fog, Spot, and Combo. And yes, it?s patent pending!

All-Weather Ready

Our white-output version is perfect for all-around visibility, while the Yellow-output version is a game changer in rain, snow, or fog. We chose Phosphor-Converted Yellow LEDs that produce yellow light right from the source, ensuring the best performance in challenging weather. This approach beats filtering white light through a yellow lens, which doesn?t actually improve visibility.

Reliability

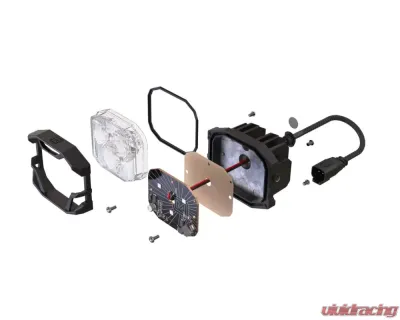

With great power comes great responsibility! We?ve put a lot of effort into ensuring the reliability of these lights. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB for maximum heat transfer to the radiator, optimized through extensive thermal analysis. The cast aluminum shell is electroplated before powder coating to prevent flaking, and the potted internals, over-molded input wiring, and main gasket are all built to IP69K standards for full weather resistance. Plus, we offer a variety of application-specific mounting bracket kits for fog lights and A-Pillars, making installation a breeze for many popular trucks.

Street Legality

When aimed correctly, the Spot and Combo beams comply with SAE J581 standards for auxiliary high beams. If you?re on the hunt for a high-performance, street-legal LED pod for use as a fog light, both the NCS and HXB Wide Beam models meet the latest SAE F regulations. You can check out the test reports in the compatibility section. Some areas require auxiliary lights to be covered during regular driving, so we offer optional Blackout Covers designed to fit all Morimoto 4Banger LED Pods. They install easily and can be removed in seconds!

Power Up

The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. Each component is crafted with care, ensuring no detail was overlooked. You?ll find a triple-sealed proprietary 4-pin relay with a hanger, a proprietary over-molded inline fuse holder with a 20A mini fuse, DT06-2S female outputs with dual seals, stainless steel power and ground terminals, and a proprietary M-Spec push-button switch with an amber LED backlight.

What?s Included

• LED Pods: 2x (One Pair) Morimoto 4Banger NCS Spot (White or Yellow)
• Brackets: Not Included, Must Purchase Separately (BAF046)
• Hardware: Complete pack (stainless steel)

Specifications

• Intensity: 105,000 Cd (Post Warm-Up) (1,005 lux at 10m)
• Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
• Input Voltage: 9-18V DC
• Power: 15.6w
• Current: 1.5A at 13.2V DC
• Dimensions: 82mm W, 67mm H, 60mm D
• Light Source: 3x Nichia NCSW131F (5700K) or 3x Nichia NCSY131F (3000K)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)
• IP Rating: IP68K (Dust / High Pressure Water Resistant)

Fitment

• Universal: With Included U Brackets
• Ford F-150 2015-2020 (with BAF013 and BAF038)
• Ford F-150 2007-2014 (with BAF020 and BAF037)
• Ford Raptor 2017-2020 (with BAF024 and BAF038)
• Ford Super Duty 2017-2021 (with BAF013 and BAF039)
• Ford Super Duty 1999-2016 (with BAF021 and BAF040)
• Toyota 4Runner 2010+ (With BAF014 and BAF027)
• Toyota Tacoma 2005-2013 (with BAF019 and BAF029)
• Toyota Tacoma 2014-2021 (with BAF014 and BAF028)
• Toyota Tundra 2007-2013 (with BAF019 and BAF030)
