Bolt on Brighter

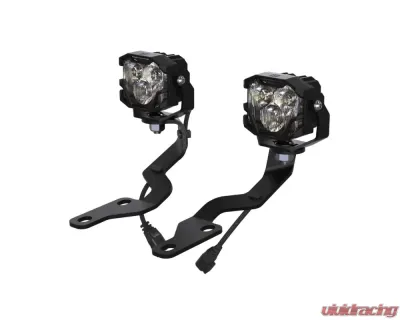

Looking for a way to brighten up your drive? The Morimoto 4Banger A-Pillar LED system is just what you need! This versatile setup allows you to direct light exactly where you want it, whether you need long-range spotlights for high-speed adventures or ditch lights for illuminating the roadside. Choose from high-performance 4Banger LED pods with your favorite beam pattern, pair them with easy-to-install brackets, and power everything up with our convenient switched wire harness.

Engineered Fitment

We've put a lot of love into the A-Pillar kit specifically designed for the 2005-2015 Toyota Tacoma. After countless rounds of design, prototyping, and testing right on the truck, we can assure you that this kit fits like a glove. Everything aligns perfectly with existing mounting points for a truly modification-free installation. Trust us; we were shocked by the poor fitment we saw from other brands during development?so we made sure ours was spot on!

Branches Beware

Each bracket is crafted from laser-cut 304 stainless steel, electroplated, and powder-coated for durability. In simpler terms, the side mirrors on your Tacoma will give up long before our A-Pillar kit even starts to flex!

All Weather

For those who crave all-around visibility, the white-output version is your go-to. If you find yourself driving in rain, snow, or fog, the yellow-output version is a game changer. Our Phosphor-Converted Yellow LEDs are designed to produce yellow light right from the source, allowing you to cut through the elements without sacrificing brightness. Forget filtering white light through a yellow lens?this is where performance meets smart design!

Reliability

With great power comes great responsibility, and we?ve made sure our product is up to the task. The 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat transfer to the radiator, optimized through extensive thermal analysis. Plus, the cast aluminum shell is electroplated before powder coating to prevent flaking. With potted internals, over-molded input wiring, and a main gasket designed to IP69K standards, you can trust this kit to withstand the elements.

Wiring and Cable Management

No one likes messy wiring! That?s why we?ve included multiple mounting locations and cable routing clips on the bracket stem to guide the input wiring from your LED pods down into the engine bay. Once there, simply plug and play with Morimoto?s switched relay wire harness for a clean, reliable installation.

Performance

Every part of the patent-pending 4Banger LED pod light is proprietary and engineered for excellence. Using LucidShape, we?ve optimized performance around the most advanced, lumen-dense LEDs from Nichia and Osram. Our optics are crafted to world-class standards, and thermal dynamics have been fine-tuned using SolidWorks. Choose from three industry-leading beam patterns: Wide/Fog, Spot, and Combo, to meet your specific needs.

Beam Patterns

HXB Combo Beam

This beam illuminates a clear path with medium range, offering the perfect mix of width and distance. The 8H x 4V oval hot spot with a 10V degree spread at beam center is finely tuned to create an ideal flood beam, making your daily drives in the great outdoors much more enjoyable. Pair it with high-performance headlights for an even better experience!

HXB Spot Beam

Get ready to see far into the distance like never before! The HXB Spot is equipped with powerful Osram LEDs that, combined with the HXB LED optics, create a beam pattern capable of reaching up to 800 meters ahead. No matter how fast you go, you?ll always have a clear view with the 4Banger HXB Spots.

HXB Wide Beam

This beam shines light directly in front of your vehicle. With dual-axis control for width and active hot spot control, the HXB Optics provide a perfect vertical gradient similar to an SAE-Compliant fog light pattern, but with enhanced intensity thanks to Osram HX Boost LEDs. The 4Banger HXB Wide beam is the ultimate off-road LED fog light!

NCS Combo Beam

Similar to the HXB Combo, this beam offers a balanced illumination that?s great for medium-range visibility, making those long drives in remote areas much more comfortable.

NCS Spot Beam

Designed for long-range visibility, the NCS Spot features a focused 5-degree hot spot surrounded by a 14H x 4C degree flood beam. While it?s not quite as powerful as the HXB Spot, pairing it with NCS Combos will help you avoid any surprises on the road.

NCS Wide Beam

This beam lights up the area right in front of your vehicle, making it a fantastic addition to high-performance Morimoto headlights. It produces a wide beam that significantly improves side visibility while maintaining compliance with the latest SAE F regulation for use as a street-legal fog light.

Power Up

The Morimoto 4Banger LED Pods are built to set a new standard, and the optional wire harness is no different. Every component has been carefully considered, from the triple-sealed proprietary 4-pin relay to the over-molded inline fuse holder with a 20A mini fuse. With stainless steel power and ground terminals, and a proprietary M-Spec push button switch featuring an amber LED backlight, you?re getting the best of the best.

Compatibility

While these pods are a perfect match for the 4Banger LED pods, our top-notch A-Pillar brackets are also compatible with LED pods from various other brands, including Baja Designs, KC Hi-Lites, Rigid Industries, and Diode Dynamics.

Street Legality

When aimed correctly, the Spot and Combo beams meet SAE J581 standards for auxiliary high beams, while the Wide beam complies with SAE J583 for fog lamps. Some areas may require auxiliary lights to be covered during regular driving, and our optional Blackout Covers are designed to fit all Morimoto 4Banger LED Pods. They install easily and can be removed in seconds!

What?s Included

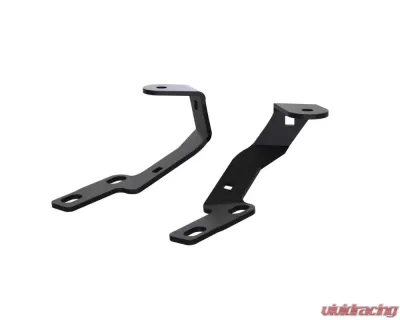

• A-Pillar Brackets: 2x (One Pair) Morimoto 4Banger (BAF029 / Toyota Tacoma) Pillar Brackets
• Hardware: Stainless bolts and plastic cable clips
• Optional LED Pods: 2x Morimoto 4Banger (Optional Color / Beam)
• Optional Wiring: 1x Morimoto 4Banger Switched Relay Harness

Specifications

• Material: Powdercoated Stainless Steel

Bigbanger Light Technical Specifications

• Intensity (NCS COMBO YELLOW): 82,500 Cd (825 lux @ 10m)
• Intensity (NCS COMBO WHITE): 115,000 Cd (1,150 lux @ 10m)
• Intensity (NCS SPOT YELLOW): 290,000 Cd (2,900 lux @ 10m)
• Intensity (NCS SPOT WHITE): 425,000 Cd (4,250 lux @ 10m)
• Intensity (HXB COMBO YELLOW): 158,000 Cd (1,580 lux @ 10m)
• Intensity (HXB COMBO WHITE): 210,000 Cd (2,100 lux @ 10m)
• Intensity (HXB SPOT YELLOW): 400,000 Cd (4,000 lux @ 10m)
• Intensity (HXB SPOT WHITE): 535,000 Cd (5,350 lux @ 10m)
• Peak Lumenosity (RAW): 3,150lm (NCS), 7,000lm (HXB)
• Input Voltage: 9-18V DC
• Power: 36.5w (NCS), 77w (HXB), 3.8w (Backlight Low), 16.5w (Backlight High)
• Current: 2.7A (NCS) or 4.75A (HXB)
• Dimensions: 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D
• Light Source: 7x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost (Output), 12x CREE XP-E2 PC Amber (Backlight)
• Input: Integrated Deutsch DT 4
