Off-Road Reinvented

Since 2008, Morimoto has been on a mission to create the best lighting upgrades for the automotive aftermarket. We pride ourselves on delivering products that are not only high-performing but also reliable and stylish. As we step into the off-road arena, we?re bringing that philosophy to life in a big way, fueled by passion and innovation. Say goodbye to the old competition; it?s time for a fresh approach!

Introducing the 4Banger NCS Off-Road LED Lights

Our brand-new, patent-pending line of 4Banger NCS Off-Road LED lights has been meticulously designed, engineered, and tested right here in the USA. Every detail is crafted for a next-level experience.

NCS Spot Beam

Need long-range visibility? The NCS Spot Beam has you covered! With a focused 5-degree hot spot surrounded by a 14H x 4C degree flood beam, this light is your perfect companion for those distant adventures. While it might not pack the same punch as the 4Banger HXB Spot, when paired with NCS Combos, you?ll easily spot deer from afar.

Form Meets Function

We?ve designed the 4Banger NCS to be approximately 30% smaller than similar options, ensuring an OEM+ fitment when paired with Morimoto?s fog light or A-Pillar mounting kits. No more bulky LED pods sticking out of your bumper!

Performance Like No Other

Forget about generic components. Every aspect of the 4Banger NCS is proprietary. We used LucidShape to optimize performance around the latest, lumen-dense LEDs from Nichia, and SolidWorks helped us perfect the thermal dynamics. Choose from three industry-leading beam patterns: Wide/Fog, Spot, and Combo.

All-Weather Capability

Our white-output version is perfect for all-around visibility, while the yellow-output version shines in rainy, snowy, or foggy conditions. Thanks to Phosphor-Converted Yellow LEDs, you?ll get optimal performance without compromising on brightness. No need for a yellow lens filter here!

Built for Reliability

We know that with power comes responsibility. That?s why we invested heavily in the reliability of the 4Banger. Featuring a copper DTP (direct thermal path) PCB for efficient heat transfer, a robust cast aluminum shell, and internals designed to meet IP69K standards, you can trust these lights to withstand the elements. Plus, we offer a variety of mounting bracket kits for easy installation on popular truck models.

Street Legality

When properly aimed, the Spot and Combo beams comply with SAE J581 standards for auxiliary high beams. If you?re in need of a street-legal LED pod for fog lights, both the NCS and HXB Wide Beam models have been verified for compliance with the latest SAE F regulation. Just remember, some areas require auxiliary lights to be covered during everyday driving. Our optional Blackout Covers fit all Morimoto 4Banger LED Pods and can be installed or removed in seconds!

Powering Up

The Morimoto 4Banger LED Pods are designed to set a new standard, and our optional wire harness is no different. Every component is crafted with care, from the triple-sealed proprietary 4-pin relay to the stainless steel power and ground terminals. You?ll also find a proprietary M-Spec push button switch with an amber-LED backlight for added convenience.

Features

• Intensity: 73,500 Cd (Post Warm-Up) (735Lux @ 10M)
• Input: Proprietary Overmolded Deutsch Dt 2-Pin W/ Pigtail
• Input Voltage: 9-18V Dc
• Power (Stabilized): 15.6W
• Current: 1.5A @ 13.2V Dc
• Peak Luminosity (Lm)(Raw): 1,350Lm
• Dimensions: 82mm W, 67mm H, 60mm D
• Hardware: M6 X 1.0 X 8mm (4Banger To U-Bracket), M10 X 1.5 X 20mm (U-Bracket Base)
• Light Source: 3X Nichia Ncsy131F (3000K)
• Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

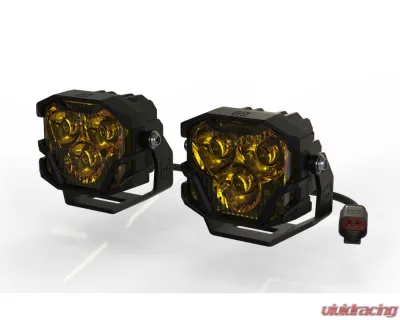

• LED Pods: 2x (One Pair) Morimoto 4Banger NCS Spot (Yellow)
• Brackets: Not Included, Must Purchase Separately (Baf046)
• Hardware: Complete Pack (Stainless Steel)
• Universal: With Included U Brackets
• Ford F150: 15-20 With Baf013 And Baf038
• Ford F150: 07-14 With Baf020 And Baf037
• Ford Raptor: 16-21 With Baf024 And Baf038
• Ford Super Duty: 17-21 With Baf013 And Baf039
• Ford Super Duty: 99-16 With Baf021 And Baf040
• 4Runner: 2010+ With Baf014 And Baf027
• Tacoma: 05-13 With Baf019 And Baf029
• Tacoma: 14-21 With Baf014 And Baf028
• Tundra: 07-13 With Baf019 And Baf030
