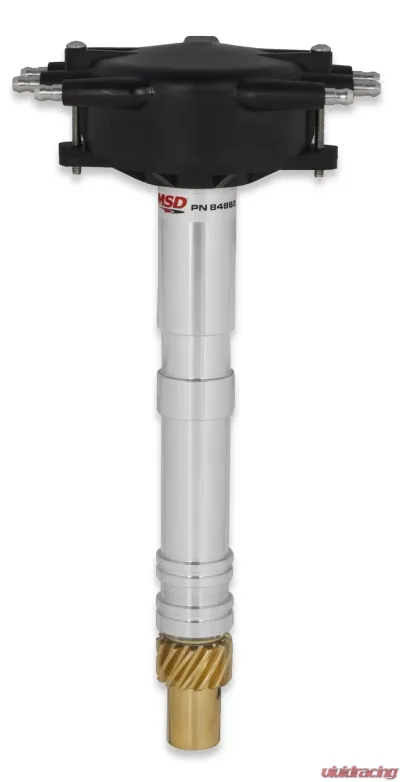

MSD Chevy Super Tall Block Black Crab Cap Distributor - 84863
MSD Chevy Super Tall Block Black Crab Cap Distributor - 84863 - Image 5 MSD Chevy Super Tall Block Black Crab Cap Distributor - 84863 - Image 2 MSD Chevy Super Tall Block Black Crab Cap Distributor - 84863 - Image 3 MSD Chevy Super Tall Block Black Crab Cap Distributor - 84863 - Image 4 MSD Chevy Super Tall Block Black Crab Cap Distributor - 84863 - Image 5
MSD's Super Tall Crab Cap distributor is taller to fit special racing blocks such as the Allen Root or Rocket blocks.

Crab Cap Distributors are built specifically for racing engines with almost no room for a distributor due to tunnel rams or blowers. The distributor is equipped with a special low-profile crab style distributor cap to allow it to fit in extremely tight areas.

The housing features two optional O-rings at the bottom that improve oil control by preventing oil pressure loss. Also, a small oil bleed hole located in the base sprays oil on the distributor and camshaft gears to prevent excessive wear. Since this is a racing distributor, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified.

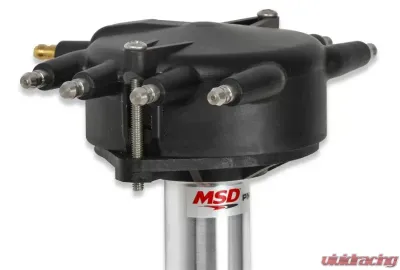

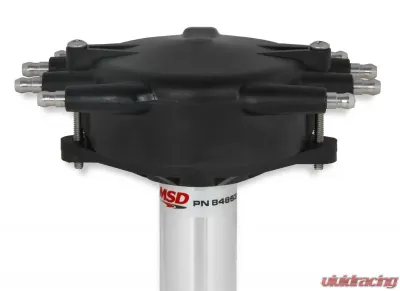

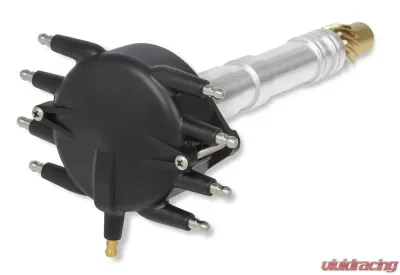

Crowning this distributor is MSD's own Crab Cap! This cap incorporates spark plug style terminals for a better connection and grip to the plug wires while providing excellent clearance since plug wires exit the side of the cap

Features:
  • Designed to fit low in the block to clear firewall and intake combinations
  • Must be used with an MSD Crank Trigger and MSD Ignition Control

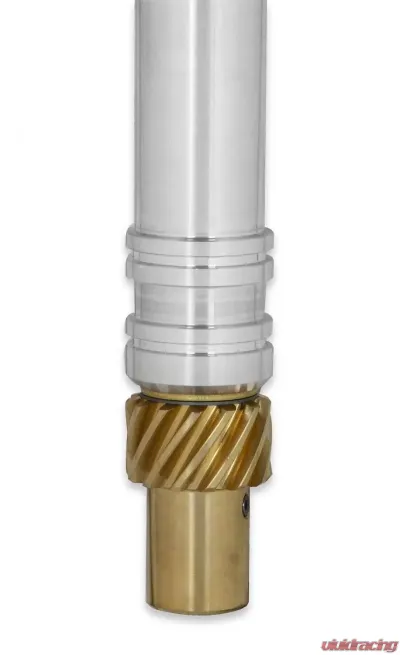

  • Supplied with small, low crab style distributor cap, rotor and bronze gear
  • O-ring seals can be added to modified blocks to improve oil pressure control
  • Special oil tract improves lubrication to the distributor and cam gear
  • Shaft is guided by a sealed ball bearing and an extra-long sintered bushing
  • Oversized polished steel shaft with a QPQ coating for friction reduction
  • Adjustable slip collar for engines with modified deck heights
  • CNC machined billet aluminum housing and durable composite base
  • 0.500” taller housing for extra tall Chevrolet based engine blocks
Specifications:
  • Brand: MSD
  • Gear: Bronze
  • Product Type: Distributor
  • Warranty: Limited 1 Year Warranty

Other Part Numbers:
MSD Ignition #MSD-84863

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
