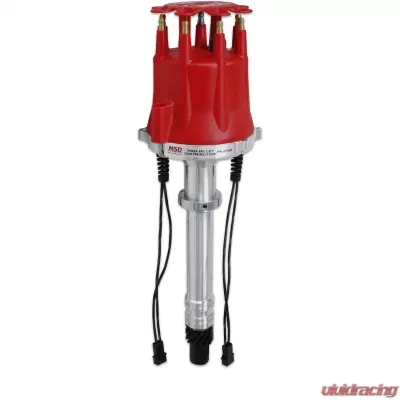

MSD Dual Pickup Chevy V8 Distributor - 8356
MSD Dual Pickup Chevy V8 Distributor - 8356 - Image 2 MSD Dual Pickup Chevy V8 Distributor - 8356 - Image 2
The Chevrolet housing has several racing features that racers will appreciate. At the base of the CNC machined housing there are two O-ring grooves. These seals prevent oil in the lifter gallery from leaking through the oil passage. If the engine deck, heads or intake have been modified, there is an adjustable slip collar which allows you to set the correct installation depth.

A fine-blanked advance cam is TIG-welded on top of the 0.500" QPQ-coated shaft. Added to the advance plate are chro-moly weight pins which are staked and TIGwelded in place. The advance weights are specially coated to reduce friction and nylon pads are mounted on the advance plate to allow the weights to react quickly to rpm changes. This style advance assembly is fully adjustable or can easily be locked out. With two mag pick-ups, racers can have a complete redundant ignition system which can be activated at the flip of a switch. The pickups are placed precisely 180° apart so when you switch to the secondary ignition, the timing remains constant!

Features:
  • Must be used with an MSD 6, 7, or 8-Series Ignition
  • Adjustable slip collar mounting flange for engines with modified deck heights
  • Mechanical advance assembly can be locked out for crank trigger systems
  • O-ring seals can be installed for oil pressure control (modified blocks only)
  •  Special oil tract improves lubrication to the distributor and cam gear
  •  0.500” steel shaft is QPQ coated and guided by a sealed ball bearing and an extra long sintered bushing
  •  CNC machined billet aluminum housing and billet aluminum base
  •  Advance weight pins are staked and tig welded to the plate
  •  Nylon pads ensure smooth operation of the advance weights
  •  Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  •  Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Dual magnetic pickups are placed 180° apart to provide a complete redundant ignition system for racing applications
Specifications:
  • Brand: MSD
  • Color: Red
  • Distributor Type: Magnetic Pickup
  • Product Type: Distributor
  • Warranty: Limited 1 Year Warranty

Other Part Numbers:
MSD Ignition #MSD-8356

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

MSD Ignition Banner

Who is MSD Ignition?

MSD Ignition started back in 1970. Based in El Paso Texas, the company is known for creating quality ignition systems for various automobiles. Today, they are considered the leading company when it comes to the ignition system and has become a brand recognized all over the world.

Changing the Way Vehicles are Made

MSD has helped shape the automotive industry by being the first company in the world to conduct an experiment regarding Multiple Spark Discharge for a vehicle’s ignition system. It has been suggested by Engineers who were working on the White Sands Missile Range in Southern Mexico. They noticed that their quest for power is limited by the amount of spark the ignition system can only generate. Hence, the idea of Multi Spark Discharge.

Racing Application

Soon after the product introduction, racers started applying it to their race cars. Due to its success, other top teams started using MSD which helped paved the way for the brand’s popularity. The majority of the race engines today use MSD and have proven to produce race champions.

The company operates in a 100,000 square feet facility in Texas. They house some of the most state-of-the-art equipment that helps them create products that are superior in quality.

Purchase MSD Ignition Products at Vivid Racing

If you are in search of the best ignition system available in the market, then MSD is the brand for you. Tested by many enthusiasts and racers for years, MSD has proven to provide optimum performance in every vehicle.




MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods.

This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including any implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.

Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications.
