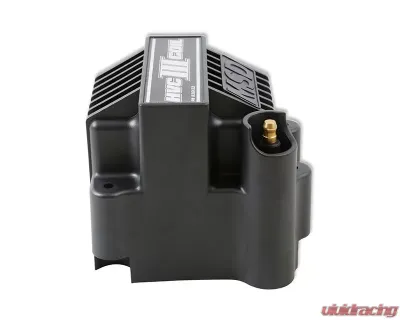

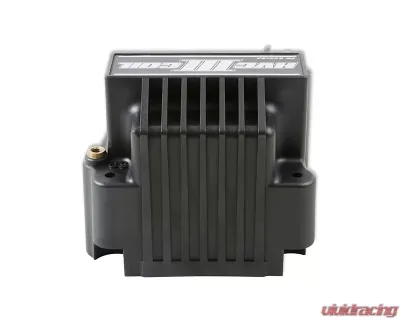

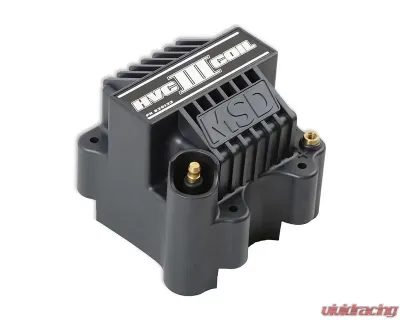

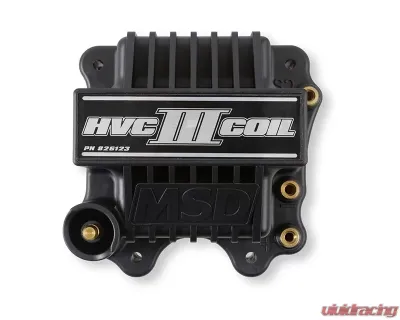

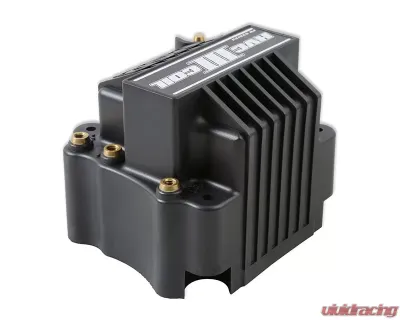

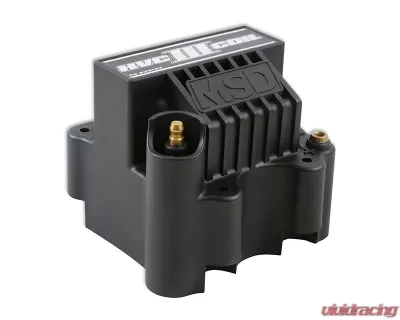

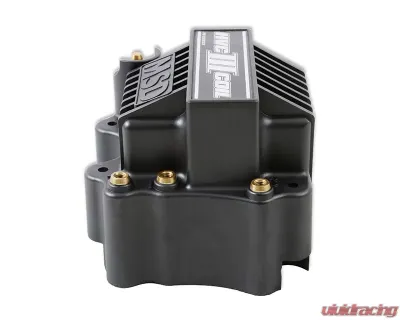

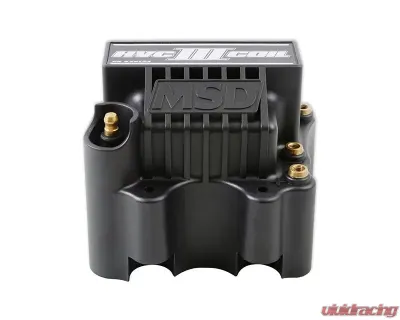

The HVC III Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. Equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
Features:
Features:
- Designed for racing applications with an MSD 7 or 8 Series Ignition Control or Pro 600 Single Channel - P/N 8001
- New U-Core winding design produces more voltage and current
- 70:1 turns ratio and lower primary resistant compound for vibration resistance
- Windings are encased in fracture resistant compound for vibration resistance

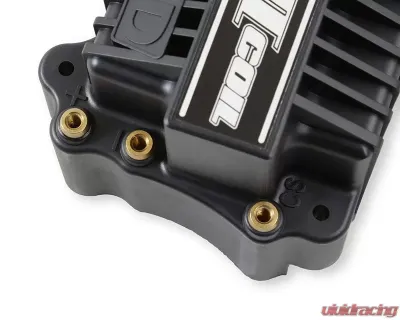

- Dupont Rynite housing with isolated tower and brass primary terminals

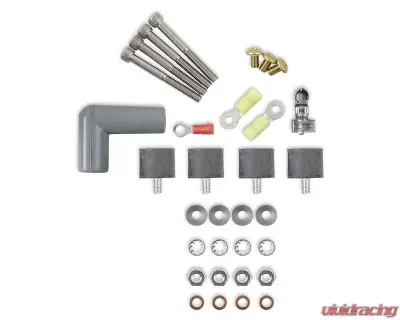

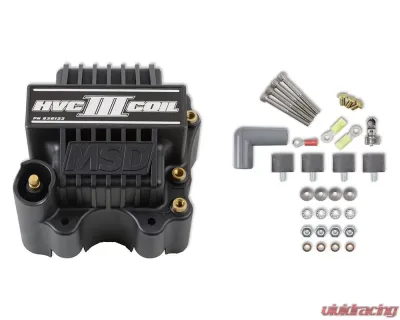

- Supplied with mounting hardware and rubber shock mounts
- Built-in Current Sensing when used with MSD Pro 600 Single Channel (8001)
- Brand: MSD
- Color: Black
- Inductance: .250 mH
- Maximum Voltage: 45,000 Volts
- Peak Current: 2 Amps
- Primary Resistance: .016 OHMs
- Product Type: Coil
- Secondary Resistance: 30 OHMs
- Spark duration: 150 uS
- Turns Ratio: 2.91736111111111
- Type: Drag Race / Long Duration Use
- Warranty: Limited 1 Year Warranty
- Weight: 3.75 Lbs
Other Part Numbers:
MSD Ignition #MSD-826123
