Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22
Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22 - Image 8 Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22 - Image 2 Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22 - Image 3 Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22 - Image 4 Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22 - Image 5 Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22 - Image 6 Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22 - Image 7 Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon Low Profile CFC Unit - 150-06-22 - Image 8

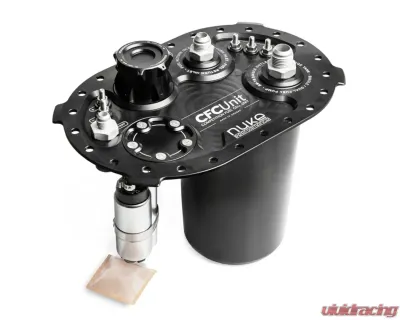

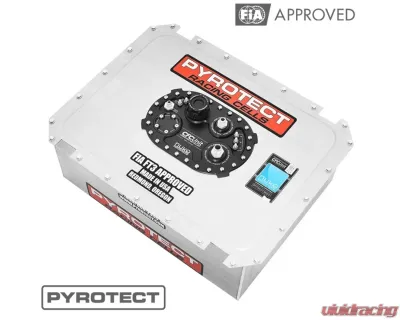

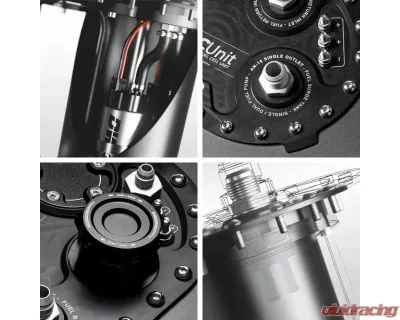

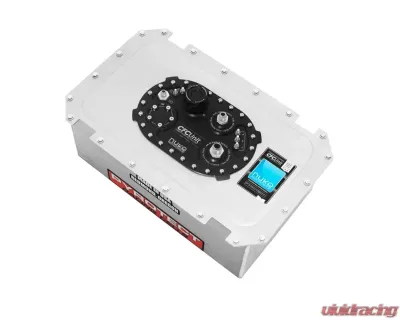

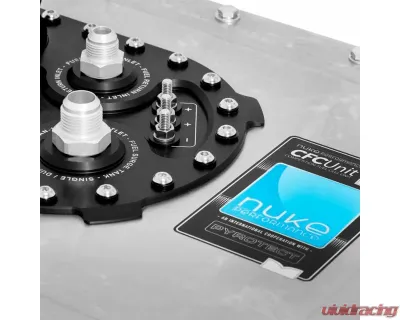

Nuke Performance Pyrotect Elite Fuel Cell 22 Gallon (83L) with CFC Unit

The Nuke Performance Pyrotect Elite Fuel Cell, part number 150-06-22, is engineered for performance-driven automotive enthusiasts seeking a reliable and efficient fuel storage solution. This fuel cell meets FIA/FT3 standards, ensuring compliance with major racing and motorsport regulations.

Crafted from ultra-durable double-coated urethane fabric, this fuel cell is designed to withstand the rigors of motorsport applications. The internal foam baffling effectively minimizes fuel slosh, providing consistent fuel delivery during high-performance driving. The integrated CFC Unit enhances functionality by eliminating the need for an external surge tank, making it a streamlined option for fuel-injected systems.

Key Features

  • Lightweight construction suitable for competitive racing
  • FIA approved for all types of motorsports
  • Compatible with a variety of fuels, including gasoline, ethanol, methanol, and E85

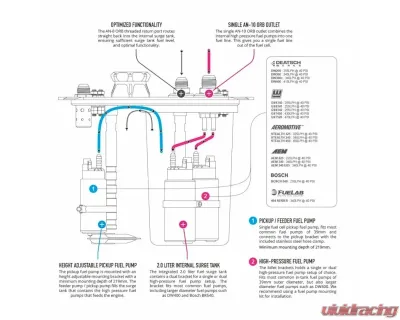

  • Integrated 2-liter fuel surge tank functionality
  • Designed to accommodate single or dual high-pressure fuel pumps
  • AN-10 ORB single outlet and AN-8 ORB return ports for easy installation

Included Components

  • 1 x Pyrotect Elite fuel cell with aluminum container
  • 1 x Nuke Performance CFC Unit (low-profile version)
  • 2 x 1/4" BSPP to Male barb 8mm hose fittings
  • 1 x 1/4" BSPP plug for single high-pressure fuel pump use
  • 2 x 39mm inserts for high-pressure fuel pump bracket
  • 1 x Viton gasket for 24-bolt pattern fuel cells (suitable for alcoholic fuels)
  • 1 x Low profile filler cap (remote fill neck available as an accessory)
  • 1 x Dual billet fuel pump bracket with adjustable pickup pump mount
  • 1 x AN-8 (3/4 UNF) to AN-6 Male roll-over vent valve
  • 1 x FLS spacer for fuel level senders with asymmetrical bolt patterns
  • 24 x 1/4-28 UNF x 1 bolts with nylon washers

Specifications

Pyrotect Elite Fuel Cell

  • Capacity: 22 gallons (83.27 liters)
  • Dimensions: Length 864 mm (34"), Height 241 mm (9.5"), Width 445 mm (17.5")

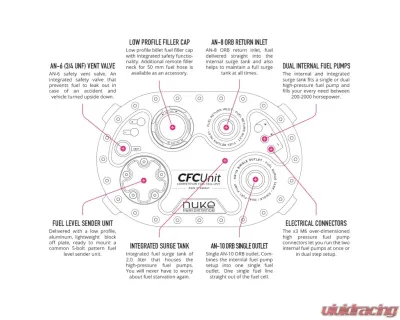

Nuke Performance CFC Unit

  • Part #: 150-05-201
  • Minimum mounting depth: 219 mm (8.62")
  • Mounting bolt pattern: 6x10" 24-bolt pattern
  • High-pressure fuel pump connectors: 3 (max 125 amp each)
  • Pickup fuel pump connectors: 2 (max 125 amp each)
  • Dimensions: Length 295 mm (13.74"), Width 194 mm (9.88")
  • Weight: 1934 g (68.21 oz)
  • Maximum pickup pipe length: 90 mm (3.54") / 95 mm (3.74")
  • Fuel compatibility: Gasoline, Methanol, Ethanol, E85
  • Internal surge tank volume: Approximately 2.0 liters (0.53 gallons)
  • Outlet port thread: AN-10 ORB
  • Return port thread: AN-8 ORB
  • Vent valve thread: AN-8 (3/4 UNF)

The Nuke Performance Pyrotect Elite Fuel Cell is a top-tier choice for serious motorsport applications, offering unmatched reliability and performance in a compact package.
