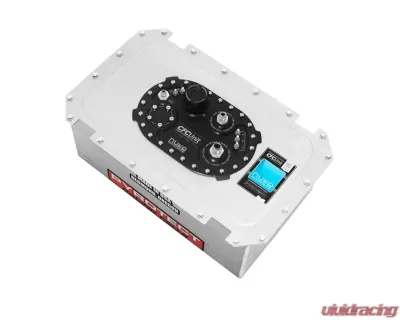

Nuke Performance Pyrotect Elite Fuel Cell (Part #150-06-262)

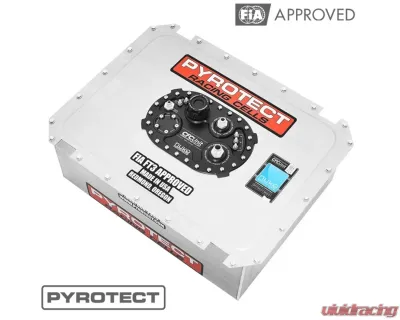

The Nuke Performance Pyrotect Elite Fuel Cell is engineered for the serious motorsports enthusiast. This 26-gallon (98-liter) fuel cell features a lightweight design and is constructed from ultra-durable double-coated urethane fabric, ensuring reliability under extreme conditions. This fuel cell is FIA/FT3 approved, making it suitable for a variety of racing applications.
Key Features
- Lightweight and robust urethane fabric bladder designed for motorsport use.

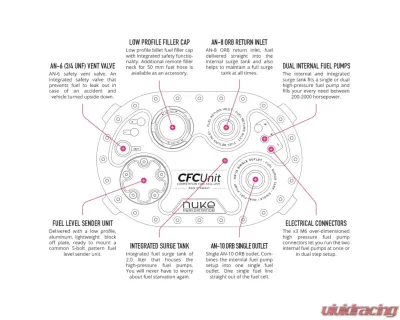

- Integrated Nuke Performance CFC Unit, which combines surge tank functionality and fuel pump hanger in one compact unit.
- Compatible with a range of fuels, including gasoline, ethanol, methanol, and E85.
- AN-10 ORB single outlet and AN-8 ORB return ports for versatile installation options.
- Available in multiple sizes to fit your specific racing requirements.
Installation and Compatibility

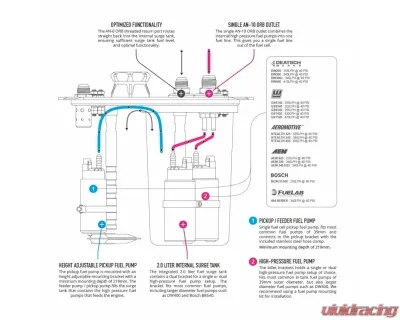

The Pyrotect Elite Fuel Cell includes essential components for installation, such as a dual billet fuel pump bracket and adjustable pickup pump mount. It can accommodate single or dual high-pressure fuel pumps, making it ideal for fuel-injected systems. The CFC Unit is designed to fit within a minimum mounting depth of 219mm (8.62") and utilizes a 24-bolt mounting pattern.
Specifications
Pyrotect Elite Fuel Cell
- Capacity: 26 gallons (98 liters)
- Dimensions: Length - 641 mm (25.25"), Height - 438 mm (17.25"), Width - 428 mm (16.85")

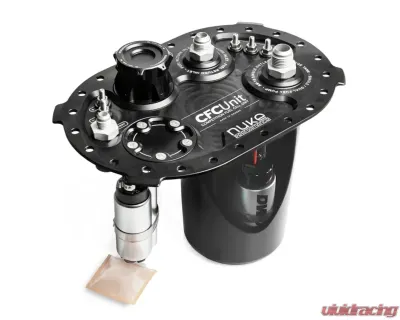

Nuke Performance CFC Unit
- Part #: 150-05-201
- Weight: 1934g (68.21 oz)
- Maximum pickup pipe length: 90mm (3.54") / 95mm (3.74")
- Internal surge tank volume: Approximately 2.0 liters (0.53 gallons)
- Connector points for high-pressure fuel pumps: 1-2 x brushed fuel pumps (max 125 ampere each)
- Outlet port thread: AN-10 ORB; Return port thread: AN-8 ORB
Included Components
- 1 x Pyrotect Elite fuel cell with aluminum container
- 1 x Nuke Performance CFC Unit (low-profile version)
- 2 x 1/4" BSPP to Male barb 8mm hose fittings
- 1 x 1/4" BSPP plug for single high-pressure fuel pump setup
- 2 x 39mm inserts for high-pressure fuel pump bracket
- 1 x Viton gasket for 24-bolt pattern fuel cells
- 1 x Low profile filler cap (remote fill neck available as accessory)
- 1 x Dual billet fuel pump bracket and adjustable pickup pump mount
- 1 x AN-8 (3/4 UNF) to AN-6 Male roll-over vent valve
- 1 x FLS spacer for fuel level senders
- 24 x 1/4-28 UNF x 1 bolts with nylon washers
The Nuke Performance Pyrotect Elite Fuel Cell with CFC Unit (Part #150-06-262) is a top-tier choice for motorsport applications, providing both performance and safety for your fuel system needs.
