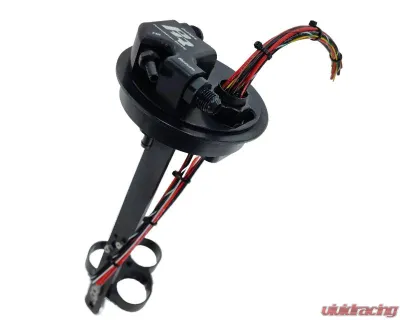

Since the Supra debuted in 1993, more boost means more fuel demand. Over the decades our fuel pump hanger has gone through number of revisions to improve and keep up with the current aftermarket fuel pump technology. This is our biggest jump yet, designed to work with almost all brands on the market. This is the fuel hanger to solve it all!
Features:
Specifications:
Fitment:
Features:

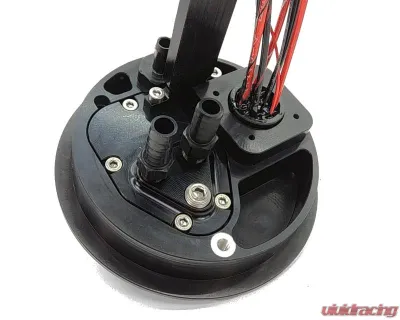

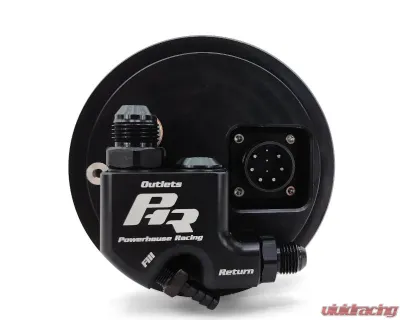

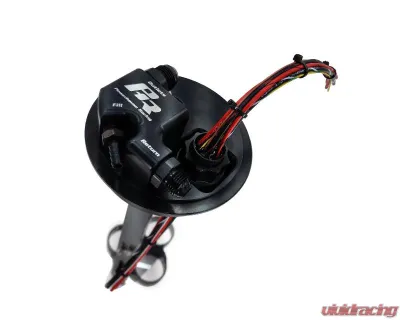

- Hanger Construction - CNC-machined from 6061 aluminum, the PHR Fuel Pump Hanger ensures precise fitment, superior strength, and long-lasting durability. Its black anodized finish provides enhanced resistance to corrosion, making it ideal for use with alcohol-based fuels such as E85 or methanol. Designed to be the most versatile hanger ever made for the Toyota Supra. Adjustable pump height, multiple inlets and outlets, bulkhead connections with appropriate gauge wire, and a fuel pocked to support dual and single feed scenarios. Works with OEM or PHR fuel sender.
- Bulkhead Connection - PHR has designed and manufactured a proprietary sealed circular bulkhead connector, using tefzel wiring and sealed with E85 safe potting material. We have a total of six 12 gauge tefzel wires running through a Solid Pin Deautsch DTP Contact supporting up to 25amps continuous capacity each. The connector also include 3 22g tefzel wires to make the fuel sender connections. The bulkhead connector is two piece and makes for easy service and installation.
In addition to our bulkhead connector, we've added a shared ground location on top and bottom of the hanger. This helps with the expand-ability of multiple brushless fuel pumps, which are requiring 4 wire connections. - Fuel Bracket Choices - We know have multiple fuel pump brackets to choose from. Pick the appropriate one compatible with you fuel pump choice.

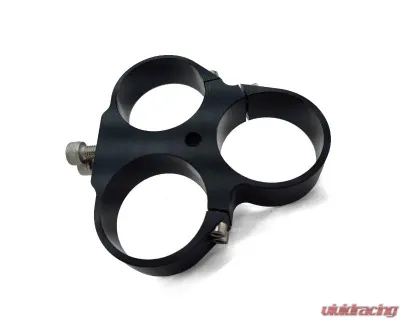

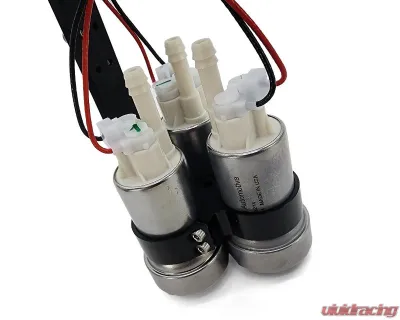

Triple Walbro Bracket: (Quantity 3x Mix and Match) This is compatible with Walbro 255 (GSS342), Walbro 450 (F90000274), and Walbro 525 (F90000285) fuel pumps.

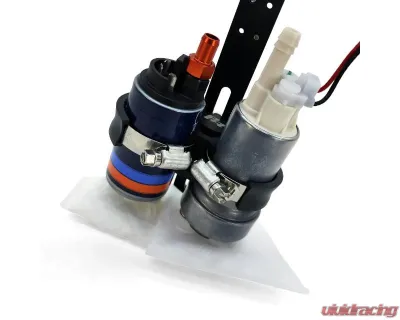

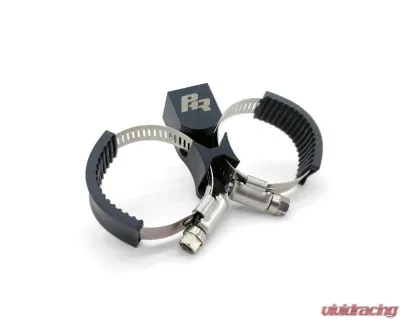

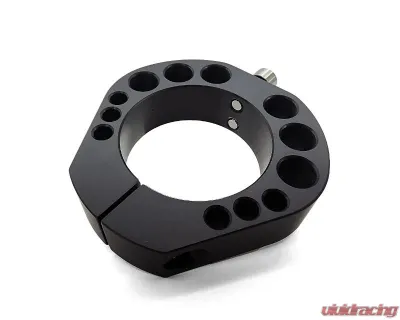

Dual Universal Bracket: (Quantity 2x Mix and Match) This bracket is adjustable and may work with more pumps than we have listed here. Clamp has a maximum size of 44mm in diameter. Compatible with Walbro 255, Walbro 450, Walbro 525, Ti Automotive/Walbro E5LM, Fuelab 500LPH Brushless, and Deatschwerks 810LPH Brushless pumps.
Fuelab Twin 500LPH - (Quantity 2x) Fuelab (25314) 253 Brushless Fuel Pump
Fuelab 1100LPH - (Quantity 1x) Fuelab (20815) Twin Screw Brushless Pump 1000LPH

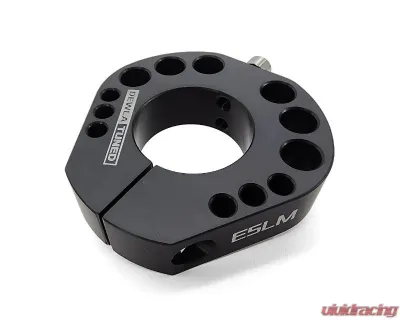

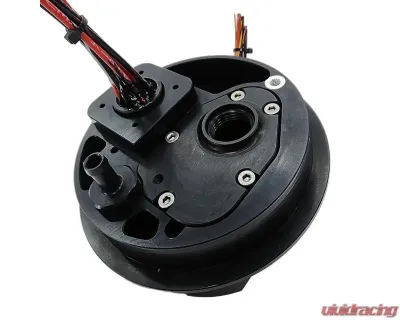

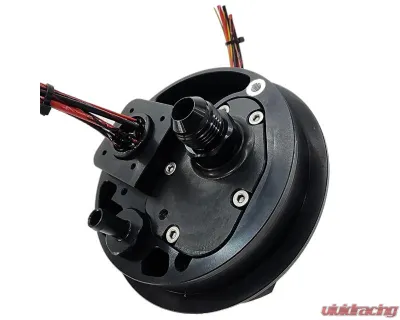

ID EL5M Bracket - (Quantity 1x) Ti Automotive EL5M (BKS1002 / BKS1001 / BPC100) - Fuel Line Connections - Outlets: The fuel pumps all feed one pocket which gathers fuel in the hanger and then feeds two 8ORB outlet ports. You can choose to run single or dual feed to your fuel rails. If using only 1 line, choose the plug for your second
Return: Return lines are important to match to your regulator orifice size. Your line size only needs to be as large as the orifice. 6AN is .30" and 8AN is .39". Most regulators will only require 6AN but make sure to size your regulator to match your fuel flow. Too small or a regulator can cause pressure control issues.
Overflow: There is a 5/16 barb connection on the hanger, this runs to your gas cap overflow line. - Pump Information - We've put together a fuel pump data sheet to make easy comparison for you, see the chart below. Detailed below is the importance of data points.
Specifications:
- Pump Bracket: Triple Walbro Bracket
- Outlet #1: 6AN
- Outlet #2: 6AN
- Return: 6AN
- Fuel Pump #1: Walbro 525
- Fuel Pump #2: None
- Fuel Pump #3: None
- Pump Install Kit: 2x Walbro 450/525 Install Kit
Fitment:
- Toyota Supra A80 MKIV (Mark 4 ) Turbo, Naturally Aspirated (NA) 1993-1998
