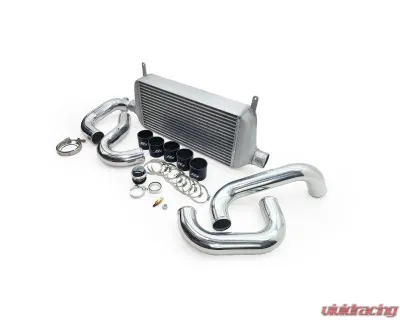

PHR Polished Intercooler Kit Builder Toyota Supra A80 MKIV (Mark 4 ) Turbo, Naturally Aspirated (NA) 1993-2002 - PHR ICKIT.GTE.45.C.P.C.C.30.GTEST.H.P.0.0.35.P.82.P.0.0.0.0.0

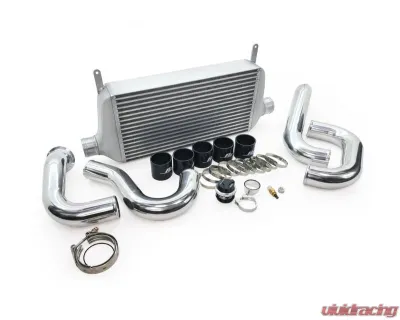

PHR Polished Intercooler Kit Builder Toyota Supra A80 MKIV (Mark 4 ) Turbo, Naturally Aspirated (NA) 1993-2002 - PHR ICKIT.GTE.45.C.P.C.C.30.GTEST.H.P.0.0.35.P.82.P.0.0.0.0.0 - Image 2 PHR Polished Intercooler Kit Builder Toyota Supra A80 MKIV (Mark 4 ) Turbo, Naturally Aspirated (NA) 1993-2002 - PHR ICKIT.GTE.45.C.P.C.C.30.GTEST.H.P.0.0.35.P.82.P.0.0.0.0.0 - Image 2
Build the ultimate intercooler system for your MKIV Supra with the PHR Intercooler Kit Builder. This unique configurator gives you complete control to choose the intercooler core, piping, and performance add-ons that match your specific build. Whether you're focused on maximum horsepower or optimizing fit and serviceability, the PHR kit puts the power in your hands.

Cast End Tanks (Standard on all cores):
  • Designed with thick walls for exceptional strength and resistance to cracking under high boost.
  • Smooth, rounded internal profiles for efficient airflow into and out of the core.
  • Cost-effective without sacrificing reliability or performance.
Billet End Tanks (Optional on 5.0" core only):
  • CNC-machined from solid aluminum for unmatched strength under extreme boost pressures.
  • Same optimized curvature and flow characteristics as cast, but taken further with CNC precision.
  • Adds a spectacular, high-end appearance - billet tanks stand out in any engine bay.


Features:
  • Dual Seal Clamp Assemblies ? Replace silicone couplers with clamps at the turbo outlet, intercooler inlets/outlets, and throttle body for unmatched sealing.
  • Blow-Off Valve Options ? Choose from multiple high-performance BOVs or add a weld flange for your preferred setup.
  • IAT Sensor Options ? Add an intake air temperature sensor or bung; available in different sensor styles for ECU compatibility.


Specifications:
  • Material: Aluminum
  • Horsepower Rating: 300-1500
  • Engine: 2JZ-GTE
  • Compressor Cover Fitment: H-Cover
  • Intercooler Thickness: 4.5 in. (112mm)
  • Intercooler End Tank Style: Cast
  • Intercooler Finish: Polished
  • Hot Side Intercooler Pipe Size: 3"
  • Turbo Manifold Fitment: 2JZ-GTE Street Torque Manifold
  • Hot Side Intercooler Pipe Finish: Polished
  • Add Blow Off Valve or Flange to Hot Side Intercooler Piping (welding cost + valve or flange): No Blow Off Valve or Flange
  • Cold Side Intercooler Pipe Size: 3.5"
  • Intake Manifold Fitment: Plazmaman
  • Throttle Body Fitment: Bosch 82mm (DBW)
  • Cold Side Intercooler Pipe Finish: Polished
  • Add Blow Off Valve or Flange to Cold Side Intercooler Piping (welding cost + valve or flange): No Blow Off Valve or Flange
  • Add Air Temp (IAT) Sensor Bung to Cold Side (welding cost + sensor cost): No Air Temp Sensor Bung or Sensor
  • Add Radiator Overflow Tank: No Radiator Overflow


Fitment:
  • Toyota Supra A80 MKIV (Mark 4 ) Turbo, Naturally Aspirated (NA) 1993-2002
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1993-2002
 Toyota Supra

Powerhouse Racing Banner

Who is Powerhouse Racing

Powerhouse Racing is an aftermarket company that is known for designing and developing high-quality products. It was founded in 1994 by Jarett Humphrys. It specializes in producing parts for Lexus and Toyota and is now widely recognized worldwide.

Continuous Development

To continuously provide innovative products to their customers, the company invests in its product development and has consistently evolved itself to produce top-of-the-line products.

State-of-the-art Facility

Powerhouse has one of the most advanced facilities in the market and entails the use of high-tech equipment such as a CNC machine. This helps them create precise and accurate pieces necessary in creating such top-quality products.

Motorsport Participation

Powerhouse actively participates in motorsport racing and is personally involved in the research and development of various racing parts. This experience enables them to gather vital information that is also applied to their products sold to the consumer.

Setting World Records

Powerhouse rose to fame when they were able to create the fastest Toyota Supra in North America and set various world records in the import scene.

Purchase Powerhouse Racing Products at Vivid Racing

If you want a brand that has a proven track record when it comes to high-performance parts, then Powerhouse Racing is the brand for you. They have been in the automotive industry for more than 20 years and are the leading source of high-performance parts for most import vehicles. To know more about Powerhouse Racing, visit Vivid Racing and check out their list of products that would fit your specific needs.
