Radium Engineering 8An Orb Fpd-Xr Swivel - 20-0777
Radium Engineering 8An Orb Fpd-Xr Swivel - 20-0777 - Image 7 Radium Engineering 8An Orb Fpd-Xr Swivel - 20-0777 - Image 2 Radium Engineering 8An Orb Fpd-Xr Swivel - 20-0777 - Image 3 Radium Engineering 8An Orb Fpd-Xr Swivel - 20-0777 - Image 4 Radium Engineering 8An Orb Fpd-Xr Swivel - 20-0777 - Image 5 Radium Engineering 8An Orb Fpd-Xr Swivel - 20-0777 - Image 6 Radium Engineering 8An Orb Fpd-Xr Swivel - 20-0777 - Image 7

Understanding the Radium Engineering 8AN Orb FPD-XR Swivel

The Radium Engineering 8AN Orb FPD-XR Swivel is a game-changer when it comes to managing fuel pressure in your vehicle. The operation of fuel injectors can create pressure pulses in the fuel rail, leading to unstable fuel pressure. To keep things running smoothly, a fuel pulse damper (FPD) is often a must-have. The internal diaphragm of the FPD absorbs those pesky oscillating pulses, helping to stabilize fuel pressure across the entire RPM range. This not only helps with idle surges'especially if you're using high-flow injectors'but also addresses those annoying lean air/fuel ratio spikes that can cause what's often referred to as "stumbling."

Versatile Installation Options

One of the standout features of the FPD is its flexibility in installation. You can mount it at any angle, even upside down, making it easier to fit into various setups. Depending on your specific fuel system, you might find that multiple dampers are needed or that placing one on the return line can yield significant benefits.

What Makes Radium FPDs Stand Out?

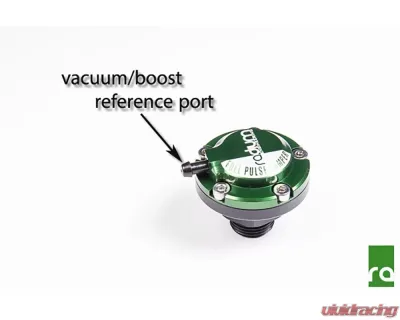

Radium Engineering has designed their FPDs with unique features that set them apart. They accommodate common fittings and include a vacuum/boost reference port, ensuring optimal performance even under elevated fuel pressures. This is especially crucial for boosted systems that utilize a 1:1 rising rate fuel pressure regulator.

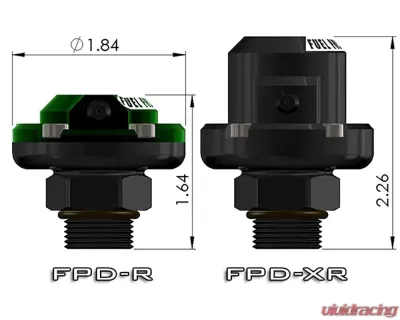

Choosing the Right Damper: FPD-R vs. FPD-XR

When selecting between the FPD-R (green top) and the FPD-XR (black top), consider your space constraints. The FPD-R is slightly shorter, making it ideal for tighter spots. Both models have distinct base static fuel pressure requirements:

  • FPD-R: 40 - 70 psi (static)
  • FPD-XR: 40 - 105 psi (static)

Base pressure is the fuel pressure measured when the fuel pump is running without a vacuum line connected to the regulator.

Key Features

  • Male Fitting Selection:
    • 8AN ORB versions seal with a FKM O-ring.
    • 3/8" NPT variations seal with tapered pipe threads.
  • Vacuum Port Orientation:
    • The latest 8AN ORB dampers (20-0777) swivel to allow for 360-degree clocking of the vacuum port.
    • For models 20-0178 and 20-0179, the vacuum port can be adjusted to the desired location thanks to tapered threads (NPT).
  • This product is compatible with all fuel types, including alcohol blends like E85.

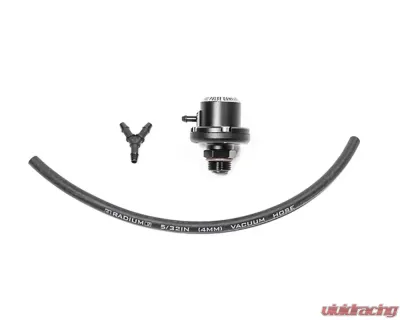

What's Included?

  • Anodized and laser-engraved aluminum top (R for range or XR for extra range)
  • Anodized aluminum body with male threads (8AN ORB or 3/8" NPT)
  • Durable stainless steel hardware
  • 4mm ID rubber vacuum hose
  • Vacuum hose Y-fitting

Important Considerations

  • The ranges mentioned are for base static fuel pressures only. Any dynamic fuel pressure created by a rising-rate FPR outside of these ranges is acceptable, provided the base static fuel pressure is set within the specified limits and the vacuum/boost reference line is connected.

Note

  • This damper should not be used on the low-pressure side of mechanical fuel pumps, including direct injection engines.
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Radium Engineering Banner

Who is Radium Engineering?

Radium Engineering is a company that was founded in 2010. The company specializes in designing and producing some of the best aftermarket products in the market. They have produced parts used by various racers and motorsport enthusiasts worldwide. Today, they have established a name for themselves and have become a brand synonymous with performance.

Quality in Every Product

All of their products are done in house, from research and development, design and manufacturing. They use the latest computer simulation and modeling tools that allow them to create an accurate and precise model. After all is done, they subject their products to an extensive testing procedure to ensure that it is safe to use and performs the way it is designed to.

Not Your Ordinary Stock Parts

The company focuses on manufacturing race-oriented parts and accessories such as surge tank lines and PCV oil catch can systems. They also offer fuel fittings, fuel manifolds, pumps, and fuel regulators designed for high performance applications. All their parts are made out of high quality materials that can withstand extreme forces.

Purchase Radium Engineering Products At Vivid Racing

If you are in search of a high quality fuel system component for your vehicle, then Radium Engineering is the brand for you. Specifically made for high-performance applications, they are the trusted brand of top racers from different racing disciplines everywhere. To know more about Radium Engineering, visit Vivid Racing and check out their list of products that fit your specific needs.




Warranty

All Radium Engineering brand products are subject to a 1 Year Limited Warranty from the date of original purchase. If a product fails, it will be repaired or replaced at Radium Engineering's option when it has been determined by Radium Engineering to have failed due to defects in materials or workmanship. Warranty claims must be made by the original purchaser. If the purchase was made from a retailer other than radiumauto.com, please contact the place of purchase for further assistance.

This warranty is limited to repair or replacement of the merchandise only and shall not, in no event, exceed the original purchase price. Radium Engineering will not be held responsible for secondary or consequential damages or costs (including labor, towing, etc.) incurred due to failure of this product. Standard ground shipping is used for all warranty transactions. Expedited shipping is available, but the cost difference must be paid by the end user in advance of the shipment.

Warranty claims must ship pre-paid to Radium Engineering for review. Claims must include the failed part(s), RMA number, and original proof of purchase. If the claim is missing any of these items, it may be rejected and returned to sender. Product must be received by Radium Engineering within 14 days of RMA's issue date. Please note that before Radium Engineering can issue an RMA for any product, it is first necessary for the installer or end user to contact [email protected] to discuss the problem. Most issues can be resolved via email. Under no circumstances should a product be returned or a RMA requested before the above process transpires.

This warranty applies to the original purchaser only and is non-transferable. Improper use, installation, modification, abuse, or unauthorized repairs or alterations voids this warranty. Credit for defective products will be issued pending inspection by Radium Engineering. This warranty does not extend to third party products often used in Radium Engineering products, such as fuel pumps, turbochargers, or any other non-Radium Engineering brand products.
