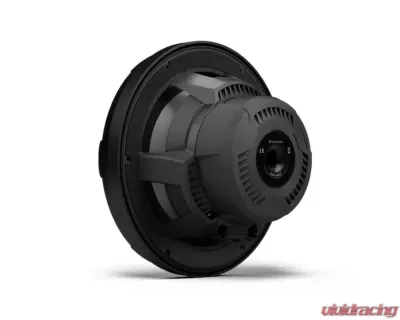

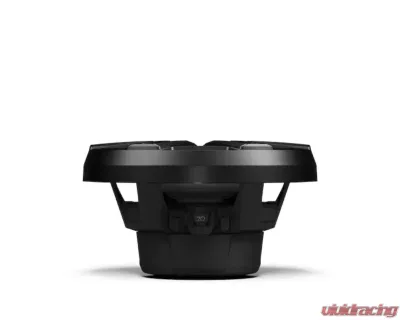

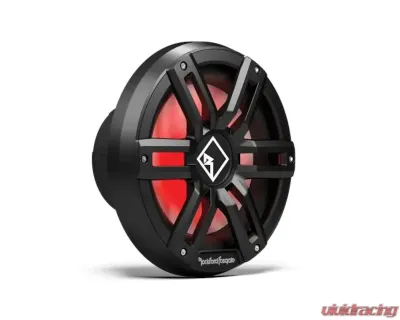

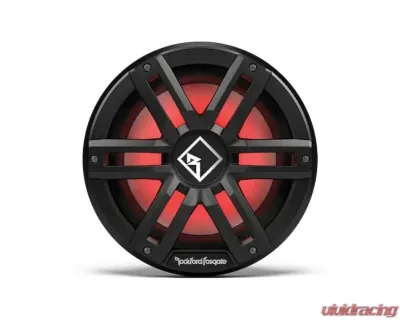

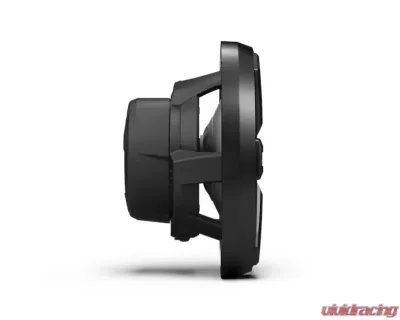

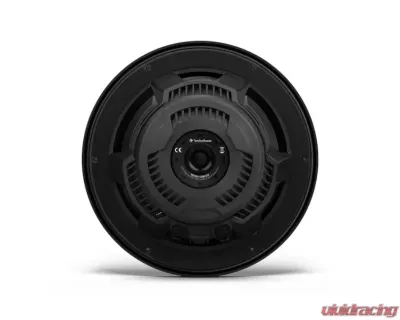

Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2
Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 9 Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 2 Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 3 Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 4 Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 5 Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 6 Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 7 Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 8 Rockford Fosgate M2 10 Inch DVC 4 Ohm Color Optix Infinite Baffle Marine Subwoofer Black Gen 2 - M2D4-10IB-G2 - Image 9
The redesigned M2 Element Ready™ subwoofers bring unmatched reliability and deep, powerful bass, with enhanced responsiveness and superior thermal management. Built to handle any adventure, they were engineered to endure the toughest conditions.

The subwoofers are designed to pair with the Rockford Fosgate RF Connect App and Color Optix™ controller (PMX-RGB required) through its Deutsch™ and Amphenol™ connectors integrated into the basket. To streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2Ω and 8Ω as easy as flipping a switch.

Since this subwoofer is optimized for Infinite Baffle installations, a mounting baffle is required to adequately isolate the front and rear wavelengths.



Features:
  • Optimized for infinite baffle applications when an enclosure is not an option
  • COMSOL Multiphysics simulation software used to optimized suspension & motor assembly
  • New vented T-yoke improves power and performance without bottoming
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Chemically bonded co-molded surround for a stronger attachment
  • Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
  • Vented motor design with water-repelling nano coated mesh screen
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • Deutsch™ connector front/rear silicone seal protects against water ingress
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring
  • Fully insulated silicone tinsel leads
  • 100% UV Stable Centrex plastic grill
  • Optically clear UV stable RGB Lighting Encapsulation
  • Gold plated marine grade brass terminals provide a corrosion resistant connection
  • Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)

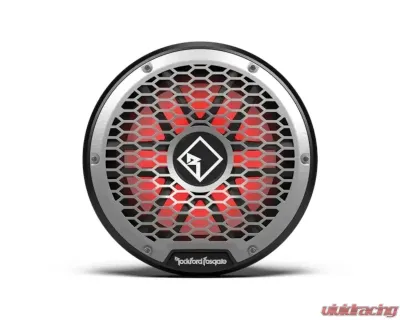

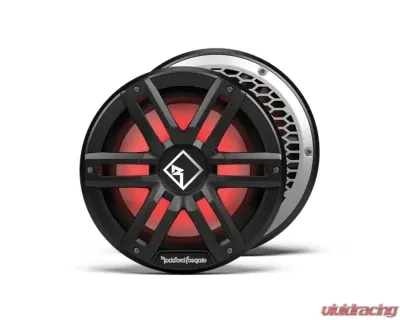

  • 2-piece grille allows for interchangeable stainless-steel or "sport" option
  • 2-Year Warranty

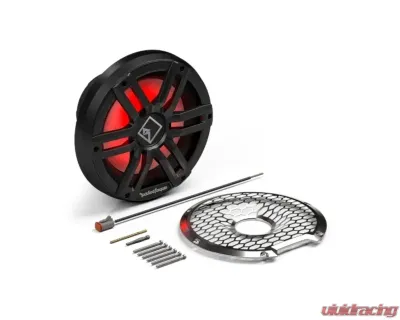

Includes:
  • (1) Sport grille insert
  • (1) Stainless steel grille insert
  • (1) Deutsch speaker pigtail
  • (1) Deutsch ColorOptix™ pigtail (to hard-wire one color)


Specifications:
  • Size: 10"
  • Voice Coil Type: Dual Voice Coil
  • Frequency Response: 32 Hz - 250 Hz
  • Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
  • Power Handling (Watts RMS): 400 Watts RMS, 1600 Watts PEAK
  • Voice Coil Diameter: 2" (51 mm)
  • Magnet Weight (oz): 55.04 oz. (1.56 Kg)
  • Fs (Hz): 43
  • Re (Ohms): 6.6
  • Le (mH): 1.76
  • Sd (cm2): 363
  • Qms: 5.67
  • Qes: 1.07
  • Qts: 0.85
  • Vas: 31.5
  • SPL (dB @ 1w/1m): 87
  • Xmax (mm): 13
  • Speaker Connector: Deutsch™ and 1/8" Spade
  • Cutout Diameter: 8.98" (228 mm)
  • Mounting Depth: 4.70" (119.35 mm)
  • Woofer Displacement: 0.047 cu. ft. (1.33 Liters)
  • Shipping Weight: 14.25 Lbs. (6.5 Kg)




Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Since day one, Rockford Fosgate® spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound to drivers, boaters, motorcyclists and off-road enthusiasts.
Rockford Corporation offers a limited warranty on Rockford Fosgate products:

Length of Warranty
  • All Speakers – 1 Year
  • Signal Processors – 1 Year
  • PRIME Amplifiers – 1 Year
  • PUNCH Amplifiers – 1 Year
  • POWER Amplifiers – 2 Years
  • Any Factory Refurbished Product – 90 days (receipt required)
What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase. Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Warranty Outside the USA

The above warranty information is for residents located within the United States of America. For warranty and service information outside the USA, please select the Authorized World Wide Distributor for your country as details vary by country.
