RockJock High Steer Knuckle Kit for RAM Assist Jeep JK Wrangler 2007-2017
$2450.00
RockJock's High Steer Knuckle Kit for JK Wrangler and Unlimited vehicles is a game changer, packed with features that improve the off-road capabilities, as well as the on-road drivability of your vehicle!

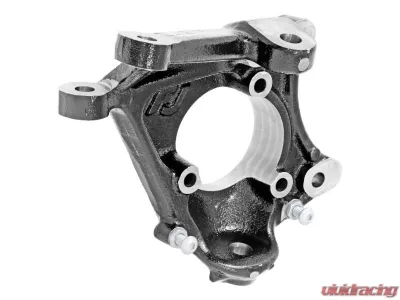

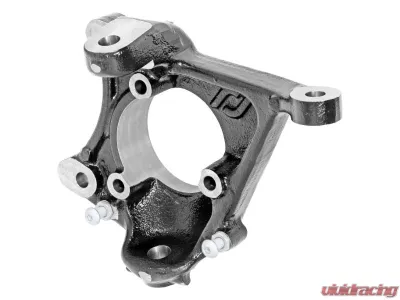

Intended for use on factory axles (Dana 30 and 44), this kit replaces the factory knuckles with our cast iron high steer knuckles (RJ-437100-101) that exceed OEM quality and strength. Our knuckles raise both the tie rod and the drag link 2 3/4 in., moving the rods out of the way of rocks and helping to restore factory steering geometry for improved drivability and overall road comfort on a lifted rig. The new knuckles also feature two adjustable steering stop locations (fore and aft of axle centerline) for full lock-to-lock adjustability which helps ease the strain on steering components at full lock. Stock ball joints, unit bearings, axles, brakes and dust shields are all retained.
Our Currectlync steering included in this kit features our revolutionary high articulation forged chromoly drag link (JK-9704DL-T) that incorporates a unique organic shape with many compound curves, that can only be achieved via forging, resulting in maximum up-travel capabilities. Our tie rod (RJ-432103-101) is a 42mm (1 5/8 in.) diameter chromoly tube. All Currectlync steering ends are forged steel and comparable in size to those found on modern 1-ton trucks.

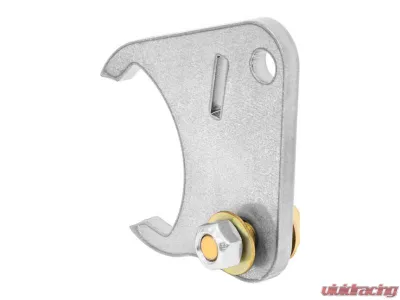

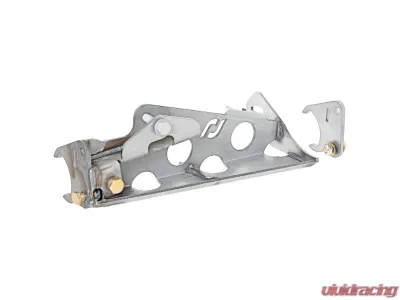

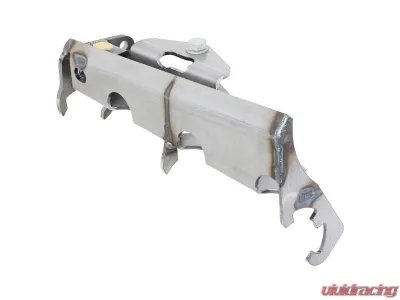

Given the dramatic geometry changes vehicle lifts impose, this kit includes a trac bar geometry relocation bracket with a fully integrated ram assist steering mount (RJ-431109-103). Our trac bar mounting point is raised 2 in., to correct geometry, preventing any bump steer. The ram assist mount portion of the bracket provides an easy bolt-up anchor point for your hydraulic assist ram, as well as a lower skid plate, incorporated into the bracket, to protect the ram from rocks!

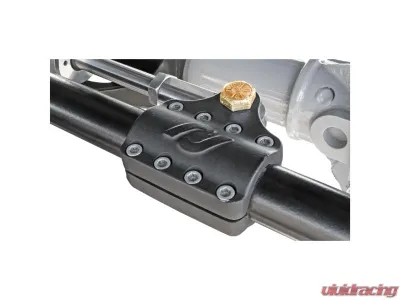

Also provided is our high-end, forged chromoly ram assist clamp tie rod clamp (RJ-441001-101) that easily installs onto the 42mm (1 5/8 in.) tie rod tube, allowing for full adjustability.
Our longer RJ-9120FJLF forged chromoly organically shaped JL/JT front trac bar is included in this kit to finish out the optimization of the front suspension geometry provided by this kit.
The use of our RJ-107101-101 fully adjustable front bump stop kit is highly recommended to ensure all components nest together for maximum up-travel, as engineered.Axle bracket easily installs, but requires welding. However, it mounts solidly enough with the bolts that you can safely drive it to a welder if need be.
For optimum performance of this kit, we recommend the use of our RJ-107101-101 adjustable bump stop kit.
This kit is intended for use in conjunction with PSC's part number CAK691-RJ ram and ram assist steering kits

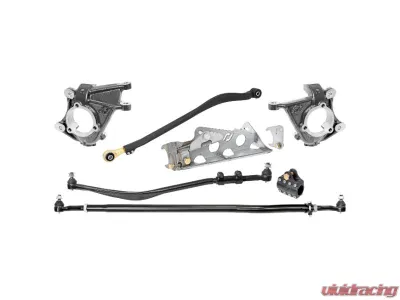

What's Included:
  • LH High Steer Steering Knuckle
  • RH High Steer Steering Knuckle
  • Currectlync Drag Link
  • Currectlync Tie Rod
  • Johnny Joint Trac Bar
  • Trac Bar Relocation and Ram Mount Axle Bracket
  • Ram Assist Tie Rod Clamp
  • All required hardware and step-by-step instructions


Specifications:
  • For use on any factory JK front differential (Dana 30 or 44), or any aftermarket JK replacement axle that features factory specification inner C-knuckles and up to 3 1/2 in. diameter axle tubes.
  • Retains factory unit bearings, axle shafts, ball joints, steering stop bolts and brakes with dust shields.
  • Trac bar relocation / ram assist axle bracket kit provides new sway bar link mounting holes that are raised 2 1/8 in. higher than stock (sway bar link lengths must be adjusted to accommodate this).
  • Intended to be used with a minimum of a 17 in. diameter wheel and up to a 6 in. wheel backspacing.
  • A minimum bump stop extension is mandatory to keep components from crashing under full articulation range conditions.
  • This package requires a ram assist steering ram stroke of 7.375 in. to achieve full potential (factory steering radius).


Fitment:
  • Jeep JK Wrangler Unlimited (4-door) 2007-2017
  • Jeep JK Wrangler (2-door) 2007-2017

Other Part Numbers:
RockJock 4x4 #430000-101
