  See more parts for Chevrolet C/K 1500
Select the year of your Chevrolet C/K 1500:
Sniper EPI 340 LPH Fuel Pump Chevrolet GMT400 C/K Series Trucks 1988-1998 - 12-353
Sniper EPI 340 LPH Fuel Pump Chevrolet GMT400 C/K Series Trucks 1988-1998 - 12-353 - Image 4 Sniper EPI 340 LPH Fuel Pump Chevrolet GMT400 C/K Series Trucks 1988-1998 - 12-353 - Image 2 Sniper EPI 340 LPH Fuel Pump Chevrolet GMT400 C/K Series Trucks 1988-1998 - 12-353 - Image 3 Sniper EPI 340 LPH Fuel Pump Chevrolet GMT400 C/K Series Trucks 1988-1998 - 12-353 - Image 4

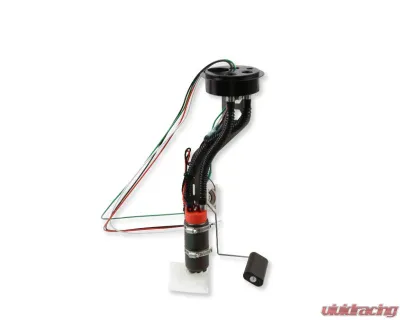

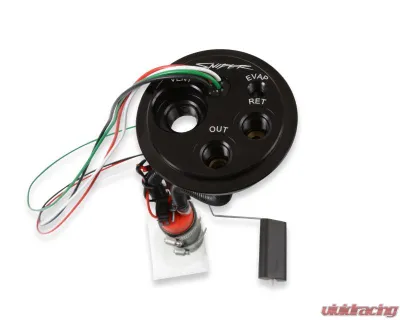

This direct fit fuel pump module will drop directly into any 1988-1997 GM C/K Series truck EFI fuel tank. The module has been designed with a 340 LPH (liters per hour) Sniper fuel pump that will support up to 700 EFI or 900 Carbureted horsepower (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)

We also have a 525 LPH module for the 1988-1998 GM C/K Trucks that supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)

The flange has a 6AN o-ring outlet and return port making the plumbing connections easy. The kit includes the assembled module, a new filter sock, flange o-ring, and the lock ring to complete your installation into your stock fuel tank. The 6061-T6 module flange has been anodized in a bright dip black finish that not only looks great but will also protect from undercar corrosion.



Features:
  • The 6061-T6 Aluminum fuel pump module is a high-pressure unit that flows 340 liters per hour (LPH) and is capable of supporting EFI (electronic fuel injection) engines producing up to 700 EFI horsepower.
  • For the 1988-1998 GM Trucks, we also offer the unit with a 525 LPH pump which supports up to 1200 EFI horsepower
  • Includes a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application

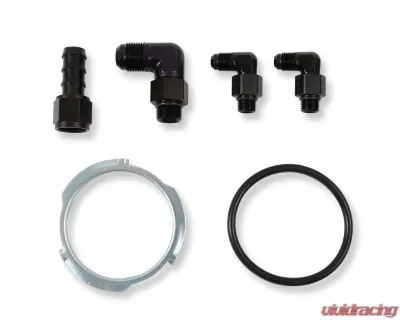

  • 6AN o-ring outlet and return ports for easy plumbing connections

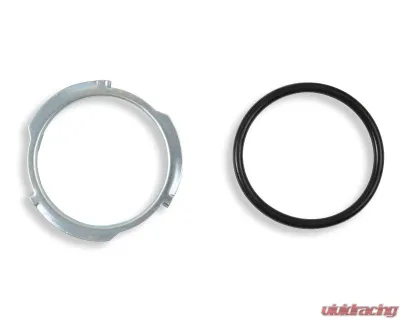

  • Filter sock, flange O-ring, and fuel tank lock ring included to complete your installation
  • Can be used with both carbureted and EFI (Electronic Fuel Injection) fuel systems depending on your need
  • Both EFI and carbureted systems will need a bypass design regulator (We recommend the 12-879 or 12-880 Bypass Regulators for these installations. They can be used for both carbureted and EFI systems)
  • The flange is bright dip black anodized for corrosion protection from undercar moisture.


Specifications:
  • Application: 1988-1998 GM C/K Trucks
  • Average Flow Rating: 340 LPH
  • Brand: Holley Sniper EFI
  • Category: Air and Fuel Delivery
  • Color: Black
  • Emission Code: 5
  • Free Flow LPH: 340
  • Fuel Filter Included: Yes
  • Fuel Sending Unit Included: Yes
  • Fuel Tank Pressure Sensor Included: No
  • Fuel Type: Gasoline/E85 Compatible
  • Gasket Or Seal Included: Yes
  • Grade Type: Performance
  • In Tank or External: In Tank
  • Inlet Size: 6 AN
  • Lock Ring Included: Yes
  • Material: 6061-T6 Aluminum
  • Negative Ground: Yes
  • Outlet Size: 6 AN
  • Part Type: Fuel Pump Module Assembly
  • Product Type: Fuel Pump Module
  • Pump Type: Electric
  • Regulator Included: No
  • Resistance Ohms Empty: 0 82
  • Resistance Ohms Full: 90 82
  • Strainer Included: Yes
  • Sub Category: Fuel Pumps and Related Components
  • Universal Or Specific Fit: Specific
  • Warranty: Manufacturer's Limited 90 Day Warranty
  • Wire Harness Included: Yes
  • UPC: 090127122211
  • Part Number: 12-353
Install Instructions:

Fitments:
  • Chevrolet C15 Base 250 4.1L L6 1988
  • Chevrolet C1500 250 4.1L L6 Base 1989-1997
  • Chevrolet C1500 262 4.3L V6 | 305 5.0L | 350 5.7L | 395 6.5L V8 Base 1994-1997
  • Chevrolet C1500 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 Cheyenne 1988-1997
  • Chevrolet C1500 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 454 7.4L V8 Scottsdale 1988-1992
  • Chevrolet C1500 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 Silverado 1988-1997
  • Chevrolet C1500 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 WT 1990-1997
  • Chevrolet C1500 454 7.4L V8 454 SS 1990-1993
  • Chevrolet C2500 400 SS 350 5.7L 1993-1997
  • Chevrolet C2500 60Th Anniversary 350 5.7L 1995
  • Chevrolet C2500 Base 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1998-1997
  • Chevrolet C2500 Cheyenne 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1998-1997
  • Chevrolet C2500 Custom 350 5.7L 1993-1997
  • Chevrolet C2500 Scottsdale 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1988-1992
  • Chevrolet C2500 Silverado 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1998-1997
  • Chevrolet C2500 WT 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1994-1995
  • Chevrolet C3500 Base 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1994-1997
  • Chevrolet C3500 Cheyenne 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1988-1997
  • Chevrolet C3500 Scottsdale 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1988-1992
  • Chevrolet C3500 Silverado 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1988-1997
  • Chevrolet K1500 Base 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L V8 1994-1997
  • Chevrolet K1500 Cheyenne 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L V8 1988-1997
  • Chevrolet K1500 Scottsdale 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L V8 1988-1992
  • Chevrolet K1500 Silverado 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L V8 1988-1997
  • Chevrolet K1500 Sport 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L V8 1991
  • Chevrolet K1500 WT 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L V8 1990-1997
  • Chevrolet K1500 Base 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L V8 1994-1997
  • Chevrolet K1500 Cheyenne 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L V8 1988-1997
  • Chevrolet K1500 Scottsdale 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L V8 1988-1992
  • Chevrolet K1500 Silverado 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L V8 1988-1997
  • Chevrolet K1500 WT 262 4.3L V6 | 305 5.0L | 350 5.7L | 379 6.2L | 395 6.5L V8 1990-1997
  • Chevrolet K3500 Base 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1994-1997
  • Chevrolet K3500 Cheyenne 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1988-1997
  • Chevrolet K3500 Scottsdale 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1988-1992
  • Chevrolet K3500 Silverado 350 5.7L | 379 6.2L | 395 6.5L | 454 7.4L V8 1988-1997
