TJ Swicth Panel 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ sPOD

$750.00

sPOD

Model #8-700-TS-TJ

Help me decide

Shopper Award

TJ Swicth Panel 8 Circuit Source SE W/Touchscreen 97-06 Wrangler TJ. sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100% manufactured in the United States since 2006.
The industry leader in power and control solutions.
sPOD systems utilizes automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! The sPOD SourceSE is a Solid-State fully programmable digital CAN-Bus controlled system utilizing state-of-the-art technologies. OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.

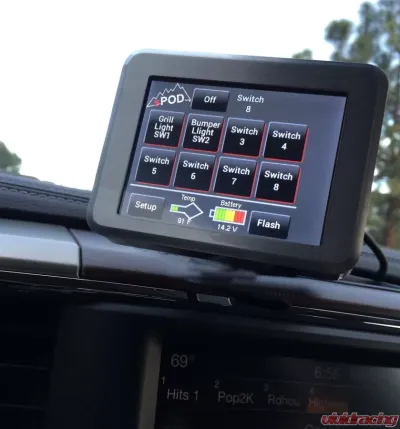

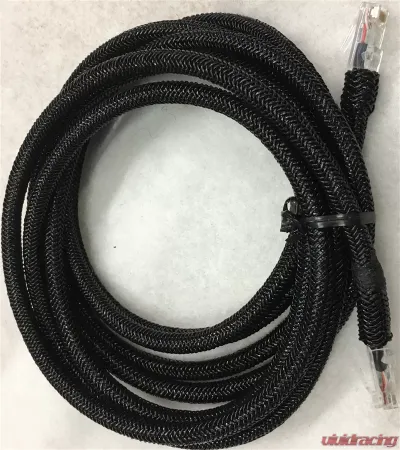

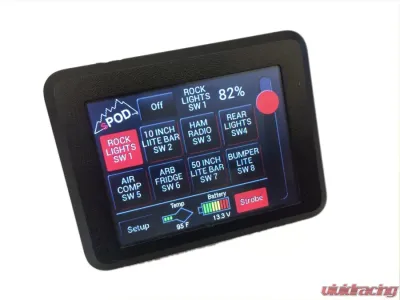

The touchscreen controller is small but packs a BIG punch! (3-3/4w X 2-7/8h X 5/8 thk) The control module is a 3.5-inch LED backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors and a viewing angle of 180 degrees housed in a billet aluminum case with a 1 RAM mount installed on back panel. The connection between the SourceSE and the touchscreen uses a standard Ethernet cable 10 feet long.
Note: If you have a 4 cylinder motor, please email us and let us know!
Benifits:

  • Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.
  • Reduced wire harness complexity, using one harness to our controller to accommodate up to 32 circuits.
  • Reduced harness size offers an overall reduction in weight, improving operational efficiency of the equipment.
  • Increase in switch lifecycle over traditional electromechanical switches.

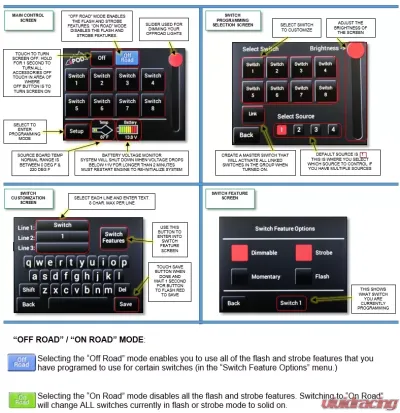

Each switch is programmable for:

  • Dimming
  • Strobe
  • Flash
  • Momentary
  • Switch Linking
  • On Road and Off Road mode of operation

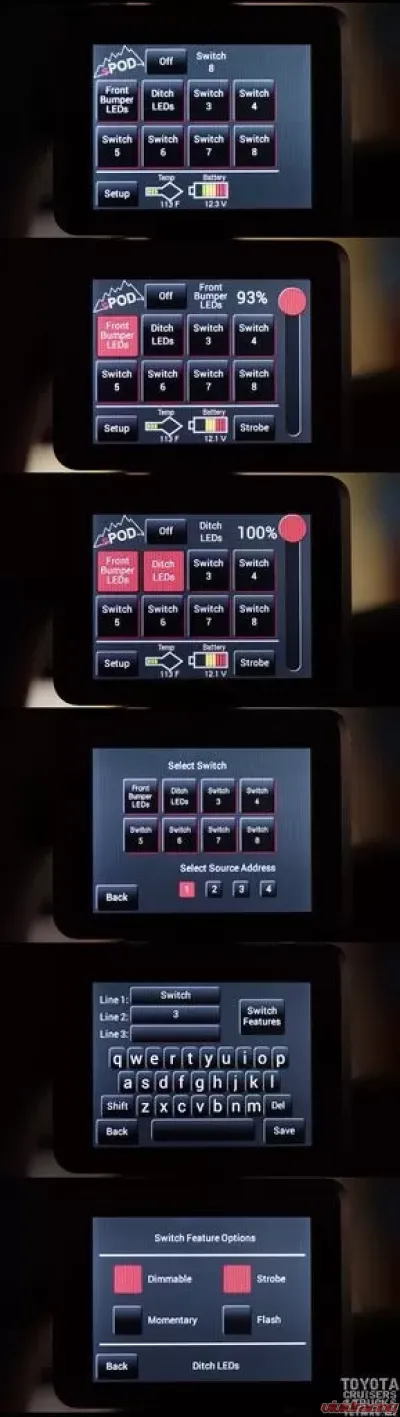

Touchscreen Control Module Features:

  • Voltage feedback (vehicles battery/alternator voltage)
  • SourceSE board temperature feedback (shown on screen)
  • Customization: legends (3 lines of text)
  • Automatic backlighting off after 30 minutes of being inactivity
  • Automatic power off after 6 hours of being inactive or engine not running (Deep sleep mode)
  • One touch off function
  • One second hold on off button shuts all circuits down
  • Automatic system shut down when touchscreen is unplugged
  • Backlight dimming
  • Multiple Source select (One touchscreen can control up to 32 circuits)

Options / parts required:
RAM-201U Double Socket Arm for 1 inch RAM Ball (Must have this in order to mount touchscreen)
RAM-238U Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-PSA A-Pillar Mount with 1 inch rubber coated Ram Ball. (For fixed surface mounting and interconnect between double socket arm)
RAM-224-1U Suction Cup Base with 1 inch RAM Ball (For fixed surface mounting and interconnect between double socket arm)
8-700-BT Add-on Bluetooth module to enable the system to be controlled by an iPhone, iPad or iPad Mini (Optional)
Note: Please indicate if you are running LUX Lighting Systems LED lights. We will include a resistor that is required in order for the lights to function properly.

Proposition 65

/!\ warningWARNING: Cancer and Reproductive Harm

https://www.P65Warnings.ca.gov

Vehicle Engine Notes
1997-2006
Jeep Wrangler

Who is sPOD?

sPOD is an aftermarket company that was established in 2005. The company specializes in manufacturing precision power distribution systems used for various offroad vehicles. They are not limited to doing products on these vehicles as they also create parts for agricultural equipment, race vehicles, utility vehicles, and any vehicle platform that uses either a 12-volt or 24-volt battery.

Made In The USA

sPOD is proud that all of its components are made in the US. The company uses only the finest material that would be able to withstand the harshest conditions. Having their products made stateside helps the company maintain a high-quality standard and gives their customers affordable products and is the best value for their money.

High Tech Gadgetry

Technology has come along way since the time the very first vehicle is made. sPOD has taken advantage of this by applying technology to create a product that would give total control to their vehicle. sPOD incorporated touchscreen technology to help operate the electrical system of the vehicles. This adds a modern feel to the vehicle and eliminates the need for multiple switches best for those who wanted a cleaner look on their rig.

Purchase sPOD Products at Vivid Racing

If you are searching for a product that would help you organize your vehicle electrical system to keep everything tidy and safe, then sPOD is the brand for you. Their products are proven by various racers and enthusiasts alike and are guaranteed to perform in extreme conditions. Visit Vivid Racing and check out their list of products that would fit your specific needs.
