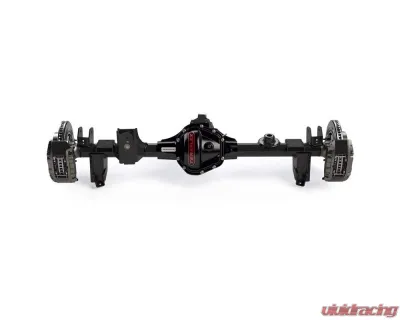

TeraFlex JL: 68 CRD60 HD Rear Axle w/ Semi-Float No R&P, Locker, Carrier (0 6" Lift) - 3281000

The unloaded Tera CRD60 HD Rear Axle Assembly w/ Semi-Float includes, Spicer Super 60 bearings, semi-float rear axle shafts, brakes, sensors, and more! Add your choice of locker, carrier, and ring & pinion gear ratio.

TeraFlex Tera CRD60 HD Rear Axle Housings are perfect for replacing bent, broken, or damaged axles in JL Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle?s weak areas.

The exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring & pinion strength.

Our heavy-duty axle housings feature smooth profile surfaces, axle tubes, all necessary mount brackets, control arm bushings, and more!



Features:
  • JL: 68? Tera CRD60 HD Rear Axle w/ 40-Spline Semi-Float Axle Shafts:
  • Factory-style semi-float axle design
  • 68? wheel mounting surface to wheel mounting surface
  • 3.25? O.D. x 0.375? wall DOM axle tube for superior strength vs. weight
  • 40-spline semi-float axle shafts and bearings
  • Dual 5x5? and 5x5.5? wheel bolt patternJL: Tera CRD60 Rear Axle Assembly:
  • Fixed spindle mount hub assembly
  • Tera CRD60 specific high-pinion rear axle housing design
  • Includes Spicer Super 60 bearings and install kits
  • Includes 1350 series pinion yoke
  • HD bearing caps increase rigidity and reduce ring & pinion distortion
  • Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
  • Built-in ?skimmer? cuts ring gear oil halo and forces it into the pinion bearings
  • Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
  • Oversized outer pinion bearing handles increased torque and high-load conditions
  • High-capacity housing holds maximum amount of oil
  • Pre-installed inner axle seals
  • Ductile cast iron housing w/ increased rib gussets
  • HD ductile iron differential cover w/ increased cover mounting area
  • Integrated lower control arm skid plates
  • High-flow oil passages
  • Reinforced rear track bar mount w/ multiple mounting locations
  • UV protected triple-stage powder coat for corrosion resistance
  • 1/4?-thick CNC laser cut axle brackets for extreme strength
  • Pre-installed upper control arm bushings
  • Proper pinion angle and raised track bar bracket for lifted JL applications
  • Pre-tapped hole on spring perch for bump stop extensions
  • Retains all JL ESP, ABS, and speedometer sensor capability
  • 100% engineered, designed, and built in the USA w/ new components
  • 1-Year/Unlimited Mileage Warranty
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

TeraFlex Banner

Who is Teraflex?

Teraflex is an aftermarket company that specializes in manufacturing various parts and components for the Jeep Wrangler. With their history going back to the 1950s distributing parts for the military jeeps, they have become the leading experts when it comes to the jeep platform and is the go to brand of many Jeep owners today.

Jeep Experts

The company offers products that directly fit most Jeep models. They offer suspension parts, body armors, differential covers and more. All of their products are made in-house, ensuring that they would be able to maintain their high-level of standard. They have applied their years of experience to create top-notch products that satisfy their customer’s demands.

Revolutionizing the Jeep Industry

Being the leader in the market, they are also the pioneers of aftermarket parts when it comes to this platform.  They were the first company to introduce aftermarket parts to the then brand new released TJ Wrangler. They offered an upgrade to the newly designed coil over suspension of the TJ series and has also provided a solution to the platform’s transfer case low gearing. They have helped the TJ platform become a key player in the offroad world, which help the company cement its position as the no.1 source of Jeep accessories.

Purchase Teraflex Products at Vivid Racing

If you own a Jeep and want to turn it into a better offroad performing machine, then Teraflex is the right brand for you. With decades of experience in the industry, you can be sure that you will only be getting the best value of the product for your money. Visit Vivid Racing and check out their list of products that would fit your specific needs.

TeraFlex Inc. warrants TeraFlex products to the original retail purchaser to be free of defects in material and workmanship for as long as the original purchaser owns the vehicle on which products were originally installed unless otherwise specified. This warranty does not cover or include product finish, improperly installed or applied products, improperly maintained products, products used for racing or competition or damage due to abuse or neglect.

Failure to complete regular maintenance on TeraFlex flexarms (grease every 3000 miles) will void this warranty.

All TeraLow products are warrantied to be free of defects in material and workmanship for two years from date purchased.

TeraFlex axles are covered by the TeraFlex Inc. 12-month warranty to be free of defects in materials and workmanship from date purchased.

All Falcon Shocks are warrantied to a period of three years from the original date of purchase. Upon verification, TeraFlex Inc. will repair or replace the shock absorber at no cost.

To file a warranty claim please call our customer service department at 801-713- 3314, Monday - Friday, 8 am - 5 pm MST. Closed Saturday, Sunday and all major holidays.
