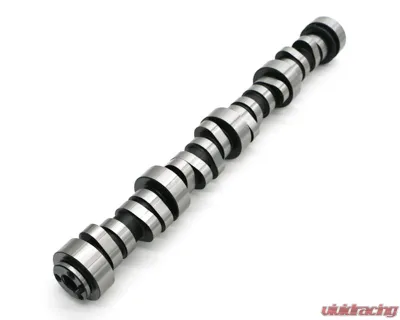

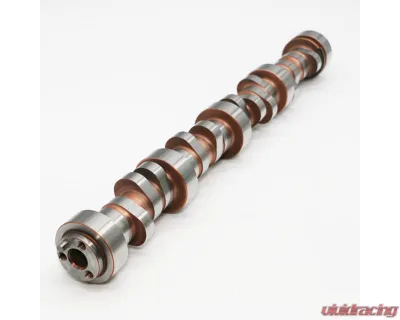

TSP Stage 4 "F-35" LS3 N/A Camshaft

For those ready to take their LS3-powered ride to the next level, the TSP Stage 4 "F-35" Camshaft (Part Number: TSP-235248-111-3B) is a game-changer. Designed for maximum power without compromising piston-to-valve clearance on a stock short-block, this camshaft is the ultimate upgrade for performance enthusiasts who demand more from their engines.

Performance Highlights

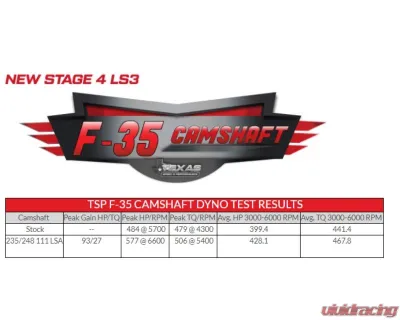

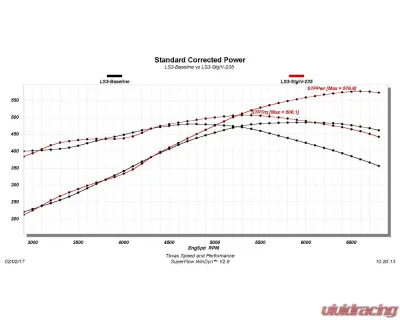

The Stage 4 camshaft features aggressive specs with a 235/248 duration and .649/.615 lift, providing a significant boost in horsepower and torque. You’ll start feeling the gains over the factory LS3 cam as early as 3,100 RPM, with the real power kicking in from 4,500 RPM all the way to a peak at 6,600 RPM. Expect an impressive increase of 93 flywheel horsepower compared to the stock setup, making it a solid choice for those looking to dominate both the streets and the track.

Installation Notes

For optimal performance, we recommend pairing this camshaft with a minimum stall speed of 3,600 RPM in automatic vehicles. If you're hitting the track, consider a stall speed of 4,000 RPM or higher to fully utilize the cam's capabilities. This cam is specifically designed for LS2, L76, and LS3 engines equipped with L92/LS3 rectangular port cylinder heads.

Key Features

• Best Suited Engines: 6.0L and 6.2L with Rectangular Port Heads
• Desired Compression Ratio: 10.5:1 or higher
• Recommended Springs: TSP/PAC .660 Dual Valve Spring
• Aftermarket Stall Converter: Required, minimum 3,600 RPM
• Rear Gear Upgrade: Minimum of 3.42 for optimal performance
• Operating RPM Range: 2,000 - 7,000 RPM
• Estimated Power Increase: 93 HP and 27 ft-lbs of torque
• Drivability: Not ideal for daily driving, best for weekend street/strip use

Fitment

• Cadillac Escalade (2008-2014)
• Chevrolet Camaro (2010-2015)
• Chevrolet Corvette (2008-2013)
• Chevrolet Silverado 1500 (2007-2013)
• Chevrolet SS (2014-2017)
• Chevrolet Suburban (2007-2014)
• Chevrolet Tahoe (2007-2014)
• GMC Sierra 1500 (2007-2013)
• GMC Yukon (2007-2014)
• Pontiac G8 (2008-2009)
• Pontiac GTO (2004-2006)
• Universal Retrofit (1997-2016)

Important Notes

• This camshaft is exclusively available in a 3-bolt design. If your factory cam is a single-bolt type, you will need to purchase a three-bolt conversion kit, which includes the necessary upper timing gear and ARP camshaft bolts.
• For those looking to replace the entire timing set, we offer a complete conversion kit with an upgraded timing set.
• Designed for competition use only; not legal for road use.

Customer Feedback

Chevrolet Camaro owners have reported significant improvements in throttle response and overall power delivery with this camshaft. One customer stated, "After installing the TSP Stage 4 cam in my 2013 Camaro, the difference was night and day. The power kicks in hard after 4,500 RPM, and I've seen gains that truly elevate my track times!"
