Trans-Dapt Performance Engine Swap In A Box Kit; LS in 82-04 S10/S15 (only); Long Tube Headers- HTC - 42164
Trans-Dapt Performance Engine Swap In A Box Kit; LS in 82-04 S10/S15 (only); Long Tube Headers- HTC - 42164 - Image 6 Trans-Dapt Performance Engine Swap In A Box Kit; LS in 82-04 S10/S15 (only); Long Tube Headers- HTC - 42164 - Image 2 Trans-Dapt Performance Engine Swap In A Box Kit; LS in 82-04 S10/S15 (only); Long Tube Headers- HTC - 42164 - Image 3 Trans-Dapt Performance Engine Swap In A Box Kit; LS in 82-04 S10/S15 (only); Long Tube Headers- HTC - 42164 - Image 4 Trans-Dapt Performance Engine Swap In A Box Kit; LS in 82-04 S10/S15 (only); Long Tube Headers- HTC - 42164 - Image 5 Trans-Dapt Performance Engine Swap In A Box Kit; LS in 82-04 S10/S15 (only); Long Tube Headers- HTC - 42164 - Image 6

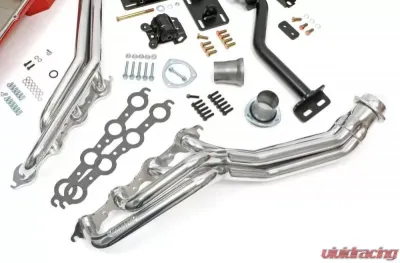

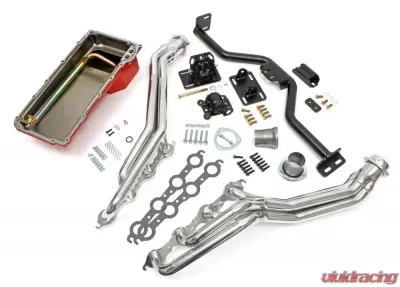

Trans-Dapt Performance Products Engine Swap-In-A-Box Kit; Chevy LS in '82-04 S10/S15 (only) with 4L60E/70E; 1-1/2 in. Long Tube Headers; 3 in. Collector; Includes Headers, Oil Pan, Engine Mounts, Transmission Crossmember- HTC Coated Headers

Features

  • Product Details: Engine swap kit for installing an LS engine into 1982-04 S10
  • Reducers Included: Yes
  • Replacement Headers: 69056
  • Replacement Mount Pads: 4217
  • Replacement Oil Pan: 1108
  • Stroker Clearanced: No
  • Sump Location: Rear
  • Sump Style: Wet Sump

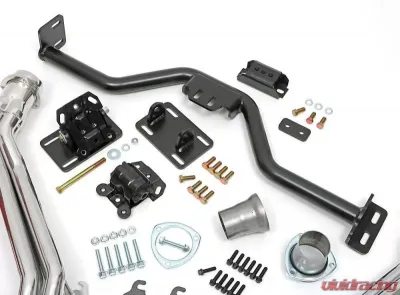

  • Transmission Mount/Crossmember (Included): Yes
  • Transmission Mount Type: Crossmember
  • Transmission Type: Automatic Transmission
  • Tube Diameter: 1-1/2 in.
  • Tuned: No
  • Variations: 42163, 42164, 42165
  • Vehicle Use: 1982-04 CHEVY/GMC S-10, S-15, Sonoma, Hombre (2WD only). Not For Blazer/Jimmy
  • Windage Tray Included: No
  • Welding Required: No
  • with A.I.R. System: No
  • with EGR: No
  • Y-Pipe Included: No
  • Transmission Compatibility: 4L60E
  • Replacement Motor Mount Kit: 4516
  • Replacement Transmission Mount/Crossmember: 9719
  • Installation Notes: Pan has -10AN inlet / outlet ports, and requires relocation of the oil filter.
  • California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
  • Reducer Outlet Size: 2-1/2 in.
  • Engine: Chevy LS Series
  • Title: TRANS-DAPT PERFORMANCE PRODUCTS ENGINE SWAP IN A BOX KIT; CHEVY LS IN '82-04 S10/S15 WITH 4L60E/70E; 1-1/2 IN. LONG TUBE HEADERS; 3 IN. BALL COLLECTOR; INCLUDES HEADERS, OIL PAN, ENGINE MOUNTS, TRANSMISSION CROSSMEMBER- HTC SILVER CERAMIC HEADERS
  • Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
  • Wheel Drive Type: 2WD
  • IMPORTANT!: 2WD Vehicles ONLY!
  • Air Conditioning: Yes
  • Automatic Transmission - Column: No
  • Automatic Transmission - Floor: Yes
  • Baffled: No
  • Bolts/Studs Included: Yes
  • Collector Attachment: Yes
  • Collector Bolts Included: Yes
  • Collector Size: 3 in.
  • Collector Style: Ball and Socket Style (Gasketless)
  • Crank Shaft Wiper Included: No
  • Crossover Pipe Included: No
  • Cylinder Head: Factory Style
  • Dipstick Included: No
  • Dipstick Port: No
  • Drain Plug Included: Yes
  • Drain Plug Thread Size: 1/2 in.-20
  • Drivetrain: 2WD
  • Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
  • Exhaust System Dia: 3 in.
  • Finish: HTC Polished Silver Ceramic-Metallic
  • Flange Style: Standard
  • Flange Thickness: 3/8 in.
  • Replacement Gasket: 27470
  • Gasket Or Seal Included: Yes
  • Hedman Hedders (Included): Yes
  • Header Construction: Standard-Duty
  • Header Fasteners Included: Yes
  • Header Finish: HTC Polished Silver Ceramic-Metallic
  • Header Material: Mild Steel
  • Header Port Shape: Round
  • Header Style: Long Tube Header
  • Installation Hardware Included: Yes
  • Kicked Out: No
  • Motor Mounts (Included): Yes
  • Manual Transmission - Column: No
  • Manual Transmission - Floor: No
  • Material: Mild Steel
  • Mount Material: Steel
  • Mounting Bracket Included: Yes
  • O2 Provision: No
  • O2 Sensors: No

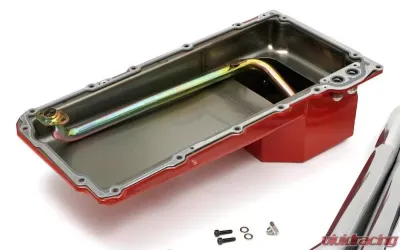

  • Oil Pan (Included): Yes
  • O.E. Replacement: No
  • Oil Pan Capacity: 5 Qt. Capacity
  • Oil Pan Bolts Included: Yes
  • Oil Pan Depth (in): 2 in. at front of Pan; 6 in. at Rear Sump
  • Oil Pan Finish: Red Painted
  • Oil Pan Material: Steel
  • Oxygen Sensor Bung Included: No
  • Package Contents: Headers; Engine Mounts; Transmission Crossmember; Oil Pan; Hardware and Gaskets
  • Pan Capacity: 5 Qts.
  • Performance: Yes
  • Pickup Included: Yes
  • Pickup #: 2522
  • Port Shape: Round
  • Power Steering: Yes
  • Primary Tube Diameter (in): 1.50 in.
  • Primary Tube Gauge: 16g

Notes:

Air Conditioning: Yes

Power Steering: Yes

Auto Transmission - Column: No

Auto Transmission - Floor: Yes

Manual Transmission - Column: No

Manual Transmission - Floor: No

Emissions Notes: The headers in this kit are not applicable or intended for street or highway use on '75-later vehicles. They are legal for racing vehicles only, and may never be used upon a highway or public road.

Engine Family: SB CHEVY Gen III/IV (LS engines)

Notes: LS Engine Swap Kit

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1982-2004
 Chevrolet S10
1982-1990
 GMC S15
1991-2004
 GMC Sonoma
