Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Double Filter; Horizontal Port; Chrome Pan - 185
Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Double Filter; Horizontal Port; Chrome Pan - 185 - Image 3 Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Double Filter; Horizontal Port; Chrome Pan - 185 - Image 2 Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Double Filter; Horizontal Port; Chrome Pan - 185 - Image 3

Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Double Filter; Horizontal Port; Chrome Pan 185 | Vivid Racing

When performing an LS engine swap into classic muscle cars and trucks, the use of an aftermarket, steel oil pan usually provides better, cross member, component and ground clearance than GM's factory, cast aluminum pan. The only hurdle with this swap is that GM integrated the oil filter mounting flange, nipple and passage ways into the factory cast pan. Remove the factory LS pan, and you lose a place to spin-on your oil filter.

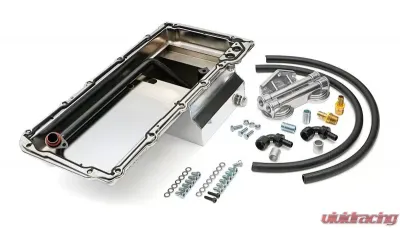

This LS swap specific oil pan and filter relocation system combo kit eliminates this hurdle by including both a rear sump oil pan that clears the vehicle's cross member, and a complete oil filter relocation system that allows you to relocate the oil filter from the factory LS pan to the firewall, fenderwell or other easy to reach location on the vehicle.

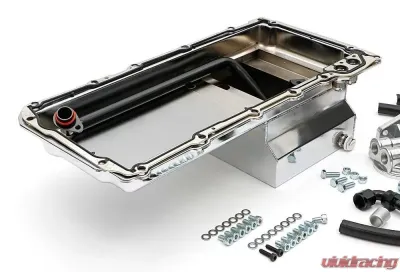

The CHROME oil pan in this kit has kickouts that offer a 7 qt. capacity, and has two integrated -10AN fittings that you attach the 90 degree hose fittings to, then plumb the oil lines to the remote mount, cast aluminum DUAL filter base. The kit includes a special oil pump pickup tube designed specifically for the oil pan, a complete oil pan gasket set and mounting bolts.

The remote base in this kit is a DOUBLE filter unit that has horizontal inlet (2) and outlet (2) ports, and includes 30" hoses, 4 hose fittings, filter nipple and 2 plugs for the unused ports. Having two filters effectively doubles the system's filtering surface area, and increases the oil capacity of your system. The multiple port design allows the remote base to be hooked up with both hoses to the left, right, or one on each side. Just plug the unused ports with the pipe plugs included in this kit. The only thing not included is a PH8A, or equivalent, oil filter.

LS Engine Swap Oil Pan & Remote DOUBLE Oil Filter Base Combo Kit; HORIZONTAL Port Dual Filter Base; CHROME Oil Pan (7qt.)

Features
  • Baffled: Yes
  • Bypass Mounting Style: No Bypass Adapter
  • Capacity: 7 Qts.
  • Color: CHROME
  • Construction: Stamped
  • Contents: Pan, Pickup,Remote Filter Base, Oil Lines, Fittings, Nipple, Gaskets & Hardware
  • Crank Shaft Wiper Included: No
  • Depth: 6 in. at Rear Sump
  • Dipstick Provision: No
  • Drain Plug Thread Size: 1/2 in.-20
  • Engine Manufacturer: Chevrolet
  • Engine Notes: 4.8L, 5.3L, 6.0L GM LS Series Engines
  • Engine Oil Cooler Return Fitting: No
  • Fastener(s) Included: Yes
  • Filter Bypass Included: No
  • Filter Bypass Style: No Bypass. Special LS Swap Pan Use
  • Finish: Chrome
  • Fitting Material: Brass
  • Fitting Quantity: 4
  • Fitting Thread: -10 AN
  • Fitting Type: Hose Barb
  • Gasket Or Seal Included: Yes
  • Hardware Included: YES
  • Hose Connection Type: Push Lock
  • Hose ID: 1/2 in.
  • Hose Length: 30 in.
  • Hose OD: 0.75 in.
  • IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
  • Installation Hardware Included: Yes
  • Kicked Out: Yes
  • Kickout Position: Driver and passenger side
  • Nipple Included: Yes
  • Filter Nipple Thread Size: 3/4 in.-16
  • Oil Filter Compatibility: PH8A or Equivalent (or equivalent)
  • Oil Line Kit Included: Yes
  • Oil Pan Bolts Included: Yes
  • Oil Pan Capacity: 7 Qt. Capacity
  • Oil Pan Depth (in): 6 in.
  • Oil Pan Finish: Chrome
  • Oil Pan Material: Steel
  • Pan Capacity: 7 Qts.
  • Pickup #: 2524
  • Pickup Included: Yes
  • Plug Included: Yes
  • Port Size: -10AN
  • Pressure Rating: 300 PSI
  • Race Only: No
  • Remote Base Filter Size: PH8A (or equivalent)
  • Remote Filter Base Style: Dual Filter; Horizontal Port
  • Replacement Gasket Set: 4336
  • Replacement Nipple: 1034
  • Replacement Oil Pan: 0172
  • Single or Dual Filter: Dual
  • Stroker Clearanced: No
  • Sump Dimensions: 6 in. Deep, 10.375 in. Wide, 8.375 in. Long
  • Sump Location: Rear
  • Sump Style: Wet Sump
  • Vehicle Specific Listings: LS Swap Oil Pan; 67-69 Camaro, 65-72 Chevelle, Nova
  • Width: 10.375 in.
  • Windage Tray Included: No
  • Kit Type: Oil Pan With LS Swap Filter Integration Kit
  • Type: Oil Pan with Remote Filter Kit
  • Hose Material: Flame Resistant Nitrile/Rubber
  • Length: 8-3/8 in.
  • Engine: Chevy LS Series
  • Product Type: Oil Pan / Filter Integration Kit Combos
  • Vehicle Use: Chevy/GMC S10/S15 Family; 1982-04
  • Filtration Construction: CAST Aluminum
  • Material: Steel
  • Bolts/Studs Included: Yes
  • Color/Finish: Chrome
  • Drain Plug Included: Yes
  • Finish Type: Chrome
  • Fluid Capacity: 7 Qt
  • Mounting Hardware Included: Yes
  • Photo Disclaimer: Actual product design or construction may vary.
  • Remote Base Included: Yes
Notes:
  • Engine Family: SB CHEVY Gen III/IV (LS engines)
