Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Single Filter; Vertical Port; Chrome Pan - 183
Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Single Filter; Vertical Port; Chrome Pan - 183 - Image 3 Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Single Filter; Vertical Port; Chrome Pan - 183 - Image 2 Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Single Filter; Vertical Port; Chrome Pan - 183 - Image 3

Trans-Dapt Performance LS Swap Oil Pan/Filter Reocation Kit; Single Filter; Vertical Port; Chrome Pan 183 | Vivid Racing

When performing an LS engine swap into classic muscle cars and trucks, the use of an aftermarket, steel oil pan usually provides better, cross member, component and ground clearance than GM's factory, cast aluminum pan. The only hurdle with this swap is that GM integrated the oil filter mounting flange and passage ways into the factory cast pan. Remove the factory LS pan, and you lose a place to spin-on your oil filter.

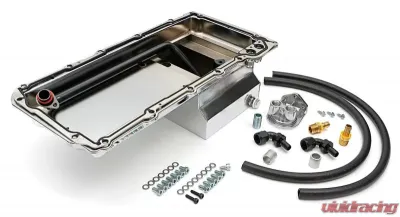

This LS swap specific oil pan and filter relocation system combo kit eliminates this hurdle by including both a rear sump oil pan that clears the vehicle's cross member, and a complete oil filter relocation system that allows you to relocate the oil filter from the factory LS pan to the firewall, fenderwell or other easy to reach location on the vehicle.

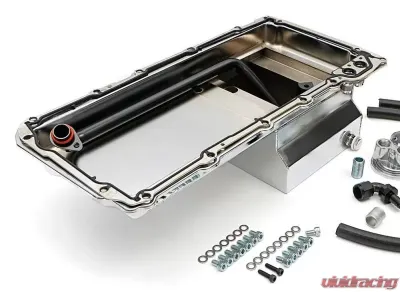

The CHROME Oil pan in this kit has kickouts that offer a 7 qt. capacity, and has two integrated -10AN fittings that you attach the 90 degree hose fittings to, then plumb the oil lines to the remote mount, cast aluminum filter base. The kit includes a special oil pump pickup tube designed specifically for the oil pan, a complete oil pan gasket set and mounting bolts.

The remote base is a single filter unit that has vertical ports, and it includes 30" hoses, 4 hose fittings and filter nipple. This kit is ideal if space around the remote base is limited. The only thing not included is a standard PH8A (Fram #), or equivalent, oil filter.

LS Engine Swap Oil Pan & Remote SINGLE Oil Filter Base Combo Kit; VERTICAL Port SINGLE Filter Base; CHROME Oil Pan (7qt.)

Features

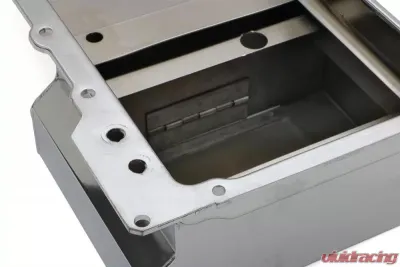

  • Baffled: Yes
  • Bypass Mounting Style: No Bypass Adapter
  • Capacity: 7 Qts.
  • Color: CHROME
  • Construction: Stamped
  • Contents: Pan, Pickup,Remote Filter Base, Oil Lines, Fittings, Nipple, Gaskets & Hardware
  • Crank Shaft Wiper Included: No
  • Depth: 6 in. at Rear Sump
  • Dipstick Provision: No
  • Drain Plug Thread Size: 1/2 in.-20
  • Engine Manufacturer: Chevrolet
  • Engine Notes: 4.8L, 5.3L, 6.0L GM LS Series Engines
  • Engine Oil Cooler Return Fitting: No
  • Fastener(s) Included: Yes
  • Filter Bypass Included: No
  • Filter Bypass Style: No Bypass. Special LS Swap Pan Use
  • Finish: Chrome
  • Fitting Material: Brass
  • Fitting Quantity: 4
  • Fitting Thread: -10 AN
  • Fitting Type: Hose Barb
  • Gasket Or Seal Included: Yes
  • Hardware Included: YES
  • Hose Connection Type: Push Lock
  • Hose ID: 1/2 in.
  • Hose Length: 30 in.
  • Hose OD: 0.75 in.
  • IMPORTANT!: Some LS have dipstick in pan and will require drilling of dipstick port on block
  • Installation Hardware Included: Yes
  • Kicked Out: Yes
  • Kickout Position: Driver and passenger side
  • Nipple Included: Yes
  • Filter Nipple Thread Size: 3/4 in.-16
  • Oil Filter Compatibility: PH8A or Equivalent (or equivalent)
  • Oil Line Kit Included: Yes
  • Oil Pan Bolts Included: Yes
  • Oil Pan Capacity: 7 Qt. Capacity
  • Oil Pan Depth (in): 6 in.
  • Oil Pan Finish: Chrome
  • Oil Pan Material: Steel
  • Pan Capacity: 7 Qts.
  • Pickup #: 2524
  • Pickup Included: Yes
  • Plug Included: Yes
  • Port Size: -10AN
  • Pressure Rating: 300 PSI
  • Race Only: No
  • Remote Base Filter Size: PH8A (or equivalent)
  • Remote Filter Base Style: SINGLE Filter, Vertical Port
  • Replacement Gasket Set: 4336
  • Replacement Nipple: 1034
  • Replacement Oil Pan: 0172
  • Single or Dual Filter: Single
  • Stroker Clearanced: No
  • Sump Dimensions: 6 in. Deep, 10.375 in. Wide, 8.375 in. Long
  • Sump Location: Rear
  • Sump Style: Wet Sump
  • Vehicle Specific Listings: LS Swap Oil Pan; 67-69 Camaro, 65-72 Chevelle, Nova
  • Width: 10.375 in.
  • Windage Tray Included: No
  • Kit Type: Oil Pan With LS Swap Filter Integration Kit
  • Type: Oil Pan with Remote Filter Kit
  • Hose Material: Flame Resistant Nitrile/Rubber
  • Length: 8-3/8 in.
  • Engine: Chevy LS Series
  • Product Type: Oil Pan / Filter Integration Kit Combos
  • Vehicle Use: Chevy/GMC S10/S15 Family; 1982-04
  • Filtration Construction: CAST Aluminum
  • Material: Steel
  • Bolts/Studs Included: Yes
  • Color/Finish: Chrome
  • Drain Plug Included: Yes
  • Finish Type: Chrome
  • Fluid Capacity: 7 Qt
  • Mounting Hardware Included: Yes
  • Photo Disclaimer: Actual product design or construction may vary.
  • Remote Base Included: Yes
Notes:
  • Engine Family: SB CHEVY Gen III/IV (LS engines)
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle
1964-1972
 Buick Skylark
1964-1970
 Buick Wildcat
1967-1986
 Chevrolet C/K 10
1967-1986
 Chevrolet C/K 20
1967-1981
 Chevrolet Camaro
1964-1972
 Chevrolet Chevelle
1968
 Chevrolet Chevy II
1964-1972, 1978-1987
 Chevrolet El Camino
1964-1967, 1978-1983
 Chevrolet Malibu
1969-1974
 Chevrolet Nova
1987
 Chevrolet R/V 10
1987
 Chevrolet R/V 20
1982-2003
 Chevrolet S10
1967-1987
 Chevrolet Suburban
1964-1971
 Oldsmobile 442
1964-1972
 Oldsmobile Cutlass
1966-1972
 Oldsmobile Vista Cruiser
1967-1981
 Pontiac Firebird
1970-1972
 Pontiac GTO
1964-1970
 Pontiac Tempest
