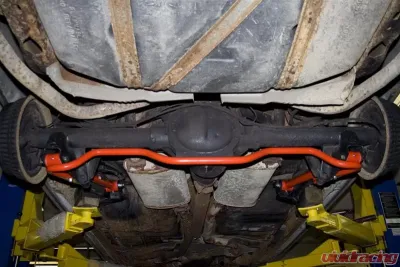

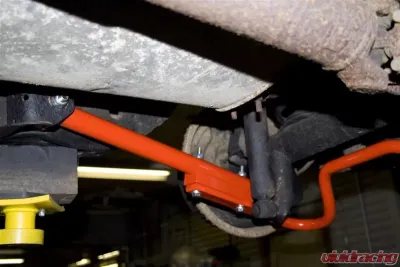

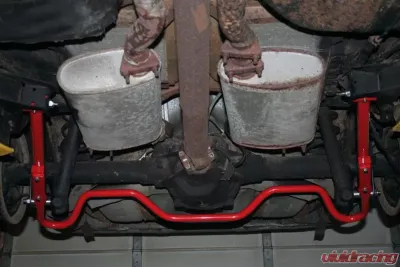

UMI Performance 1991-1996 Impala SS Adjustable Extended Length Lower Control Arms Chevrolet - 3612-R
UMI Performance 1991-1996 Impala SS Adjustable Extended Length Lower Control Arms Chevrolet - 3612-R - Image 5 UMI Performance 1991-1996 Impala SS Adjustable Extended Length Lower Control Arms Chevrolet - 3612-R - Image 2 UMI Performance 1991-1996 Impala SS Adjustable Extended Length Lower Control Arms Chevrolet - 3612-R - Image 3 UMI Performance 1991-1996 Impala SS Adjustable Extended Length Lower Control Arms Chevrolet - 3612-R - Image 4 UMI Performance 1991-1996 Impala SS Adjustable Extended Length Lower Control Arms Chevrolet - 3612-R - Image 5
  • Additional Features:
  • Built using 0.120 wall thickness DOM steel tubing
  • CNC machined and contoured for exact tolerances and accuracy
  • Fully assembled with grease-able Energy Suspension bushings
  • 4140 Chrome moly threaded tube adapters & bushing threads
  • New 10.9 grade sway bar hardware included
  • Durable long lasting glossy powder coat finish

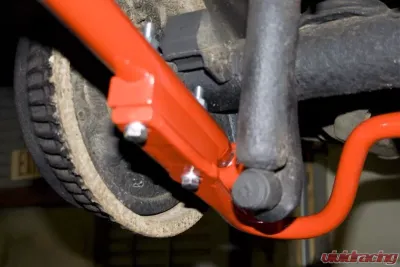

UMI Performance extended length control arms are designed to properly center the rear wheels in the vehicles wheel well on the Impala SS. These control arms are extended 5/8????? but also feature additional adjustment to perfectly center the rear end. The adjustment allows the user to lengthen or shorten the control arms an additional ??????? beyond the already extended 5/8 of an inch. The control arms are built from 1.500????? DOM tubing and fully TIG welded for the utmost in strength. Control arms also feature the correct provisions for adding a stock or aftermarket sway bar. The provided sway bar holes are reinforced with a 0.120????? all thickness steel sleeve TIG welded and sanded in place. The sway bar attaches to the control arms using a billet aluminum spacer contoured correctly to follow shape of the round tubing and properly attach the sway bar to the control arms in the factory location. NOTE: In some cases, depending on ride height variation, it may be necessary to install a longer driveshaft when using extended length control arms.

This control arm set-up will also work with UMI Performance weld-in relocation brackets, part #3610. By rotating the sway bar spacer block on top of the control arms will allow the relocation brackets to be used and the sway bar to be reinstalled.

Installation: Installs in 1 - 2 hours using OEM hardware. Installation instructions and new 10.9 grade sway bar hardware included. Additional mounting hardware can be purchased.

Features

  • Material: Steel
  • Color: Black
  • Mounting Hardware Included: No
  • Adjustable: No
  • Bushing Material: Polyurethane
  • Bushing Color: Black
  • Construction: Tubular
  • Finish: Black Powdercoated
  • Pre Greased: No
  • Grease Fitting Included: Yes
  • Bushings Included: Yes
  • Grade Type: Performance
  • California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Notes:

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Vehicle Make/Model
Chevrolet Caprice 1991-1993 Classic LTZ
Chevrolet Caprice 1991-1996 Classic
Chevrolet Caprice 1991-1992 Base
Chevrolet Caprice 1993-1994 Classic LS
Chevrolet Impala 1994-1996 SS

UMI Performance Banner

Who is UMI Performance?

UMI Performance is an aftermarket company that specializes in building high-quality suspension parts. But before they were known as a suspension manufacturer, they manufactured precision parts for major brands such as Corning Asahi, Sony, and Bell+Howell. They may have shifted industries, but their dedication to creating quality products has remained the same.

Quality Products Made In The USA

All of their products are made in-house, which allows them to control every aspect of their products. 100% made in the USA, they can maintain their high standards and create suspension parts that can tackle any street, whether it be the fast corners of a race track or the bumpy road to your grocery store.

Parts Bred From The Racetrack

UMI Performance actively participates in various racing disciplines since most of their product engineers and sales team are racers. Because of this, they can test their products through real-life racing scenarios, which helps them gather data that can help improve their products.

Easy To Install Parts

Each product is designed to replace factory-installed parts without any significant modification. It is carefully measured to ensure that it would fit perfectly into the vehicle and comes with a step-by-step instructional manual, giving their customers a hassle-free installation experience.

Purchase UMI Performance At Vivid Racing

If you are in the market for high-quality suspension parts for your vehicle, then look no further, as UMI is the brand for you. To know more about UMI, visit Vivid Racing and check out their list of products that fit your specific need.

UMI Performance warrants all UMI Performance products for a period of two (2) years from the original date of purchase.

This warranty is valid against defects in materials and workmanship for the two (2) year warranty period. It is not valid against defect resulting from, but not limited to:
    Misuse and/or abuse, neglect or accident.
    Exceeding the item(s) design limits.
    Improper installation.
    Acts of God, including lightning, floods, earthquakes, fire or high winds.
    Damage in handling, including damage encountered during shipment.
This warranty is valid for the original purchaser of the UMI Product. Warranty is not transferable or valid for second ownership.

This warranty shall be considered void if the warranted product is in any way altered, adjusted, tampered with or defaced.

The two (2) year warranty does not apply to normal wear and tear (the gradual deterioration of an asset which results naturally from use and/or age, i.e. bearings, bushings, etc.).

Non UMI manufactured parts are not covered or valid under this UMI Performance warranty.

UMI Performance cannot guarantee compatibility or performance of its products with other components used in conjunction with UMI Performance products.

UMI Performance cannot assume responsibility for any damages to UMI Products nor for claims for personal injury or property damage resulting from the use of UMI Performance's products or the improper operation thereof or consequential damages arising from the products or use of the products

.UMI Performance two (2) year warranty excludes incidental charges incurred by the end user in the event of breakage (towing, labor, installation, etc.). By their very nature, competition suspension parts are continuously expected to exceed to their limits (either by race or road use). UMI suspension components are designed to withstand intense race conditions, although it is impossible to control the quality of installation or the varying conditions in which they are used.

This warranty supersedes all other warranties and may only be modified by statement in writing, signed by UMI Performance owners/principals.

All Warranties implied by law, including the warranties of merchantability and fitness for a particular purpose, are hereby limited to the warranty period herein and shall expire at the end of such period.
