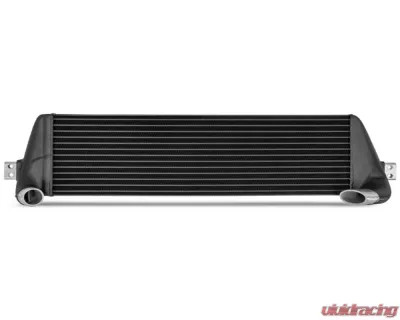

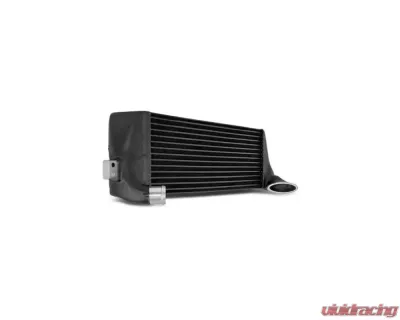

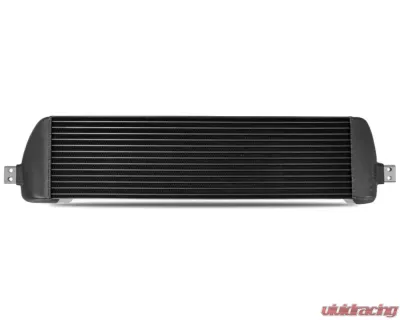

Wagner Tuning Competition Intercooler Kit Fiat 500 Abarth AT 2008-2019 for 2008-2019 Fiat 500 Abarth 200001109.A | Vivid Racing
Competition intercooler kit for Fiat 500 Abarth Automatic Transmission (European Model)
The WAGNERTUNING high-performance intercooler has a new competition core (Tube Fin) with the dimensions 600 mm x 204.6 mm x 80 mm (9.8 liters), which was developed especially for the requirements of the Fiat 500 Abarth. This high-performance core offers an 85% larger frontal surface and 131% more core volume compared to the stock intercooler. The aluminum cast endtanks were designed in CAD and optimized by using CFD simulations (for an ideal internal airflow).
For the best possible heat exchange, the WAGNERTUNING high-performance intercooler is installed in the front of the car, replacing the two original side intercooler. The newly developed elliptical hose connection at the outlet of this intercooler and the WAGNERTUNING silicone hoses enables a maximum possible reduction of the charge air distance. As a result of the generally lower back pressure of the complete intercooler system (see diagram) and the short charge air distance the overall response could be significantly improved.
An anti-corrosion coating with heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. Installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Specifications:
The WAGNERTUNING high-performance intercooler has a new competition core (Tube Fin) with the dimensions 600 mm x 204.6 mm x 80 mm (9.8 liters), which was developed especially for the requirements of the Fiat 500 Abarth. This high-performance core offers an 85% larger frontal surface and 131% more core volume compared to the stock intercooler. The aluminum cast endtanks were designed in CAD and optimized by using CFD simulations (for an ideal internal airflow).
For the best possible heat exchange, the WAGNERTUNING high-performance intercooler is installed in the front of the car, replacing the two original side intercooler. The newly developed elliptical hose connection at the outlet of this intercooler and the WAGNERTUNING silicone hoses enables a maximum possible reduction of the charge air distance. As a result of the generally lower back pressure of the complete intercooler system (see diagram) and the short charge air distance the overall response could be significantly improved.
An anti-corrosion coating with heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. Installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.
Specifications:
- Dimensions stock intercooler (2x):
- 190 mm x 175 mm x 64 mm
- V = 4.3 Liter
- A = 665 cm²
- Dimensions WAGNERTUNING intercooler:
- 600 mm x 205mm x 80 mm
- V = 9.8 Liter
- A = 1227 cm²

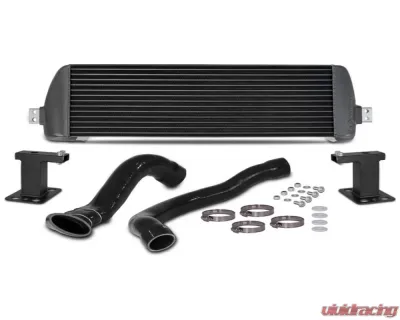

- 1 intercooler (black coated)
- 1 cross member (black coated)
- 2 silicone hoses (black)
- 1 mounting material
- 1 installation instruction
- Fiat 500 Abarth 1.4 Turbo 2008-2019 (99KW/135PS)
- Doesn't fit plug and play for US-models.
Proposition 65
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
| Make Vehicle | Model | Year |
|---|---|---|
|
2008-2019 Fiat 500 Abarth |
500 Abarth | 2008-2019 |
Wagner Tuning is a company that was founded in 2002. They specialize in aftermarket intercoolers and other high performance parts. Intercoolers are used to cool down the air produced by forced induction systems. A well-designed intercooler can increase the performance of an engine by simply lowering the air coming from the compressor before it goes inside the engine. Today, Wagner is a globally recognized brand with over 3000 network dealers worldwide.
