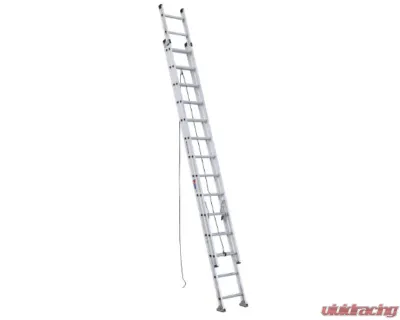

Werner 28' Type IA Aluminum D-Rung Extension Ladder - D1528-2
Werner 28' Type IA Aluminum D-Rung Extension Ladder - D1528-2 - Image 6 Werner 28' Type IA Aluminum D-Rung Extension Ladder - D1528-2 - Image 2 Werner 28' Type IA Aluminum D-Rung Extension Ladder - D1528-2 - Image 3 Werner 28' Type IA Aluminum D-Rung Extension Ladder - D1528-2 - Image 4 Werner 28' Type IA Aluminum D-Rung Extension Ladder - D1528-2 - Image 5 Werner 28' Type IA Aluminum D-Rung Extension Ladder - D1528-2 - Image 6
The D1528-2 Aluminum 28-foot Extension Ladder has a duty rating of 300 pounds and has extra heavy-duty I-beam side rails. The base and fly sections separate easily and can be used separately. Guide brackets help to ease operation when raising and lowering the fly section. The exclusive Alflo® rung joint means Twist-Proof? performance every time. The side rails are extra heavy duty I-beam rails and the Aluminum Traction-Tred® D rungs are slip-resistant. Rugged spring-loaded locks operate smoothly. Mar-resistant end caps protect the surface ladder is resting against.


Features:

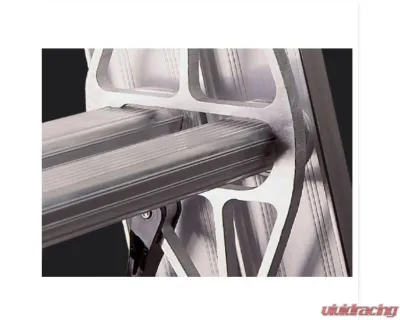

  • Exclusive Alflo® rung joint means Twist-Proof® performance
  • 1.75-inch slip-resistant Traction-Tred® D-rungs

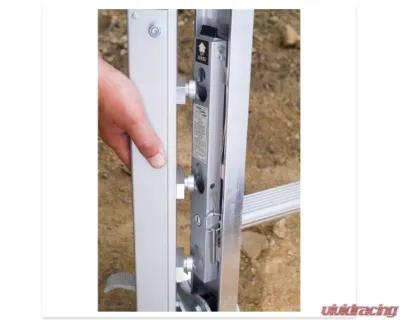

  • Heavy-duty extruded rung locks are spring loaded to operate smoothly
  • Base and fly separate easily for use as an extension or two single sections

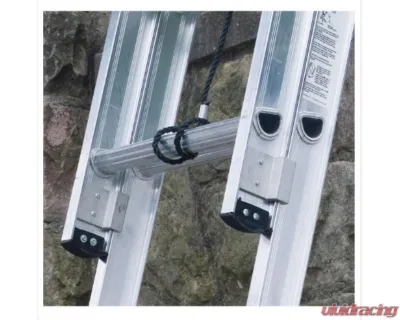

  • Smooth operating pulley design with an enclosed shape to protect the pulley
  • Guide brackets mounted at the top and bottom of the rail for durability and smooth operation of fly section
  • Extra heavy-duty I-beam rails
  • Rugged spring loaded locks operate smoothly

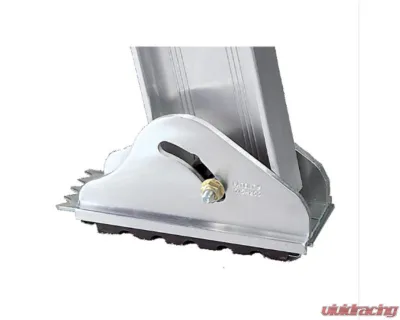

  • Rugged shoe rests flat or is held in spur position with SHU-LOK® feature
  • Stacked rail design provides increased rung width on fly section
  • Mar-resistant end caps


Specifications:
  • Style: Multi-Section
  • Size: 28ft
  • Type: Type IA Duty Rating
  • Load Capacity (lb): 300
  • Material: Aluminum
  • Certifications: ANSI A14.2-2007,OSHA
  • Werner Benefit: Exclusive Alflo® rung joint means Twist-Proof® performance
  • Unique Features: Lightweight Products
  • Color: Aluminum
  • Foot Design: Shu-Lok®, and spur plate
  • Max. Load: 300lb
  • Number of Sections: 2
  • Sections x Rungs: 2 x 14
  • Country of Origin: Mexico
Dimensions:
  • Average Reach Height Extension Ladder (ft): 27ft
  • Max. Open Extended Height (ft): 24ft 11.25in
  • Approx. Product Length (in): 168
  • Approx. Product Width (in): 18.125
  • Approx. Product Height (in): 6
  • Approx. Product Weight (lb): 56
  • Approx. Shipping Length (in): 168
  • Approx. Shipping Width (in): 18.4
  • Approx. Shipping Height (in): 6
  • Approx. Shipping Weight (lb): 56
  • Approx. Product Length (ft): 14
  • Flange Dimension (in): 1.125in
  • Fly Width: 18.125in
  • Rails Dimension: 3in
  • Rung Depth (m): 1.75in
  • Steps/Rung Dimension: 1.75in
