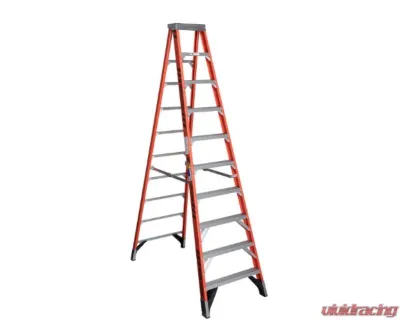

Werner 10' Type IAA Fiberglass Step Ladder Orange - 7410
Built to last, the Werner 375-pound duty rated 7410 Fiberglass 10-foot Step Ladder is rugged and ready for the job. This ladder features extra heavy duty aluminum HolsterTop, internal spreaders and external rail shields for long lasting durability. With The EDGE® bracing system and GLAS*MARK® Violator stripes on the rails, the 7400 series is built to handle the work site and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.


Features:
  • Extra heavy duty aluminum HolsterTop® with thick side plates
  • Shoulder bolt and lock nut on top hinge: four (4) solid aluminum rivets attach top to each front rail
  • Slip-resistant Traction-Tred® steps are single riveted and have extra wide knee braces
  • Heavy-duty internal spreaders
  • Full set of rear horizontals spaced one per foot
  • GLAS*MARK® Violator stripes on rails allow ladder to be more visible
  • EDGE® bracing system helps to decrease damage to rail
  • Molded external rail shield helps protect against abrasion damage
  • Slip-resistant foot pads attached to the EDGE® structure
  • Plastic external rail shield helps protect against abrasion damage
  • Every rivet backed up by metal, metal plates, or washer to protect rails
  • Also available, optional manual pail shelf kit, Model PK76-9, and automatic closing pail shelf kit Model 76-2


Specifications:
  • Style: Single-Sided
  • Size: 10ft
  • Type: Type IAA Duty Rating
  • Load Capacity (lb): 375
  • Material: Fiberglass
  • Certifications: ANSI A14.2-2007,OSHA
  • Werner Benefit: Extra heavy duty aluminum HolsterTop® with thick side plates
  • Unique Features: Works Around Electricity
  • Color of Ladder Rail: Orange
  • Color of Ladder Top: Metal
  • Bracing Type: EDGE
  • Description of Top Features: Parts tray, 2 drill holes, 2 tool slots, 3 tool holes
  • Edge Bracing: Yes
  • Foot Design: Metal with Rubber Pad
  • Front Flange Dimension (in): 1.18
  • Front Rails Dimension (in): 3.125
  • Max. Load: 375lb
  • User or Factory Installed: User
  • Number of Drill Holes in Ladder Top: 2
  • Number of Horizontals: 9
  • Number of Parts Trays: 1
  • Number of Tool Holes in Ladder Top: 8
  • Number of Top Features: 2
  • Ladder Top with 2 Drill Holes: Yes
  • Ladder Top with Fasteners Bin: Yes
  • With 1 Parts Tray: Yes
  • Country of Origin: Mexico
Dimensions:
  • Average Reach Height Step Ladder (ft): 14ft
  • Highest Standing Level Step Ladder (ft): 7ft 8in
  • Approx. Product Length (in): 120
  • Approx. Product Width (in): 32
  • Approx. Product Height (in): 7.2
  • Approx. Product Depth (in): 6
  • Approx. Product Weight (lb): 40.5
  • Approx. Shipping Length (in): 120
  • Approx. Shipping Width (in): 32
  • Approx. Shipping Height (in): 6
  • Approx. Shipping Weight (lb): 40.5
  • Approx. Spread (in): 67.5
  • Approx. Open Length (in): 120
  • Approx. Closed Length (in): 120
  • Top Dimension (in): 7.25in x 14.875in
  • Step / Rung Dimension (in): 3
  • Rear Rails Dimension (in): 1.88
